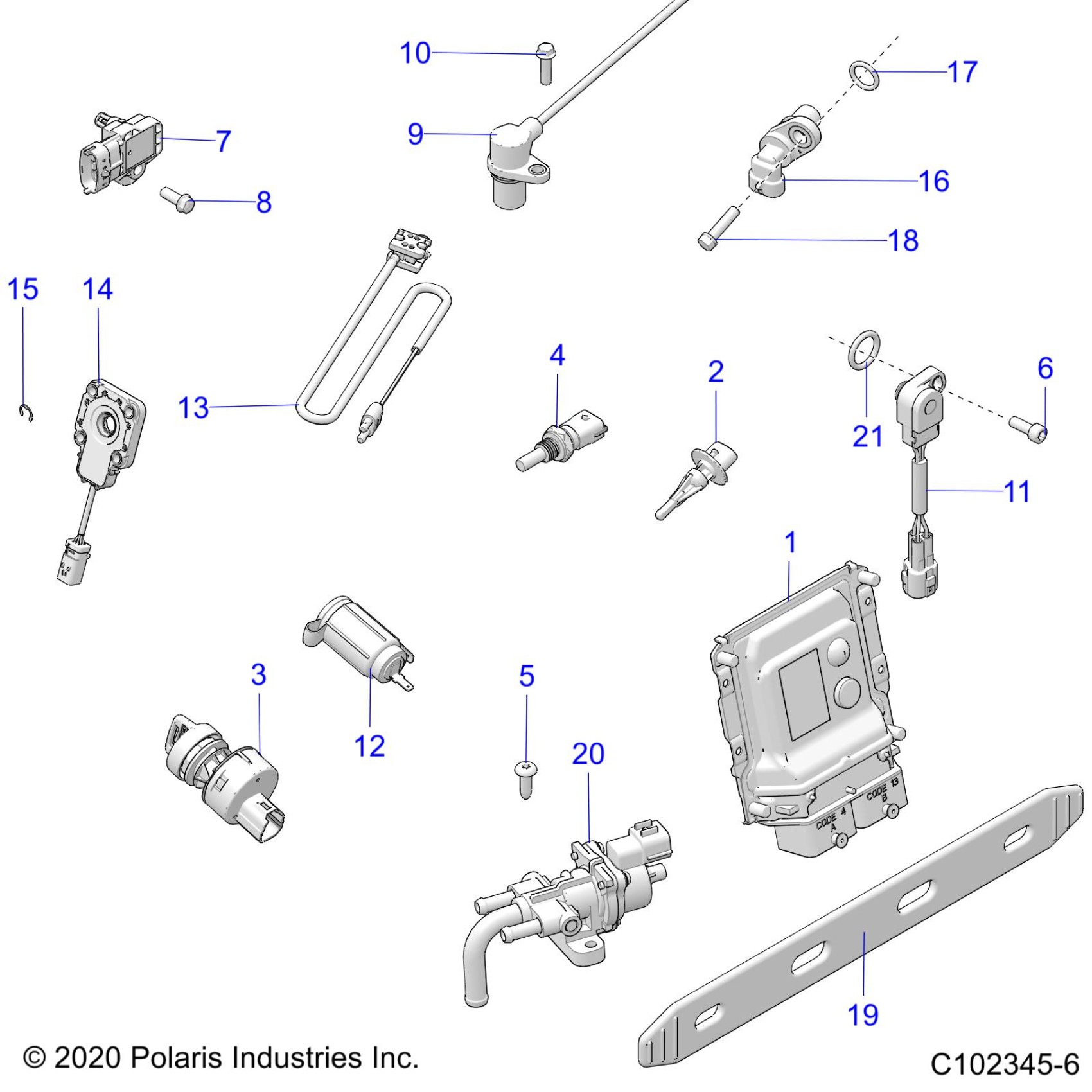

Polaris SCRAMBLER 850 48" (R01) - A23SVA85A3 ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A23SVA85A3 (C102345-6) Diagram

ECU, BASE, M17

4012838

$440.69

Sensor, Air Temperature

2410687

$143.99

SWITCH, KEY, 3 POSITION, SEALED [INCL. SWITCH, COVER, and NUT]

4015033

Unavailable

KEY SWITCH KEY COVER

5433534

$12.35

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

SENSOR-THERMISTER

4010644

$87.13

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

Screw [MAG Side]

3131010

$4.79

SENSOR-TMAP DSS3-TF

2411528

$93.08

SCR-SENSOR TMAP [USED WITH T-MAP SENSOR]

3131726

Unavailable

Sensor, Crank Position

2411589

$79.99

SCREW-HXFL-M6X1.0X16 8.8 ZY3 [USED WITH CRANK POSITION SENSOR]

7518548

$1.59

SENSOR, THROTTLE POSITION

2412634

$243.99

Receptacle, Pod Mount, 12 Volt

4010638

$24.27

KIT, BRAKE LIGHT SWITCH

2202794

$72.84

SWITCH, ROTARY, 2 PIN RESISTIVE [GEAR POSITION]

7662383

$111.99

RING, RETAINING BASIC EXTERNAL

3233834

$10.39

SENSOR-SPEED,TRANS

4013908

Unavailable

O-RING

3234302

$7.19

SCREW. TORX, PAN HEAD

3234329

Unavailable

STRAP, ECU

5414193

$27.99

KIT, HARNESS, IAC

2878507

$135.99

VALVE, IAC

4013313

$175.99

O-RING

3131729

$11.99
