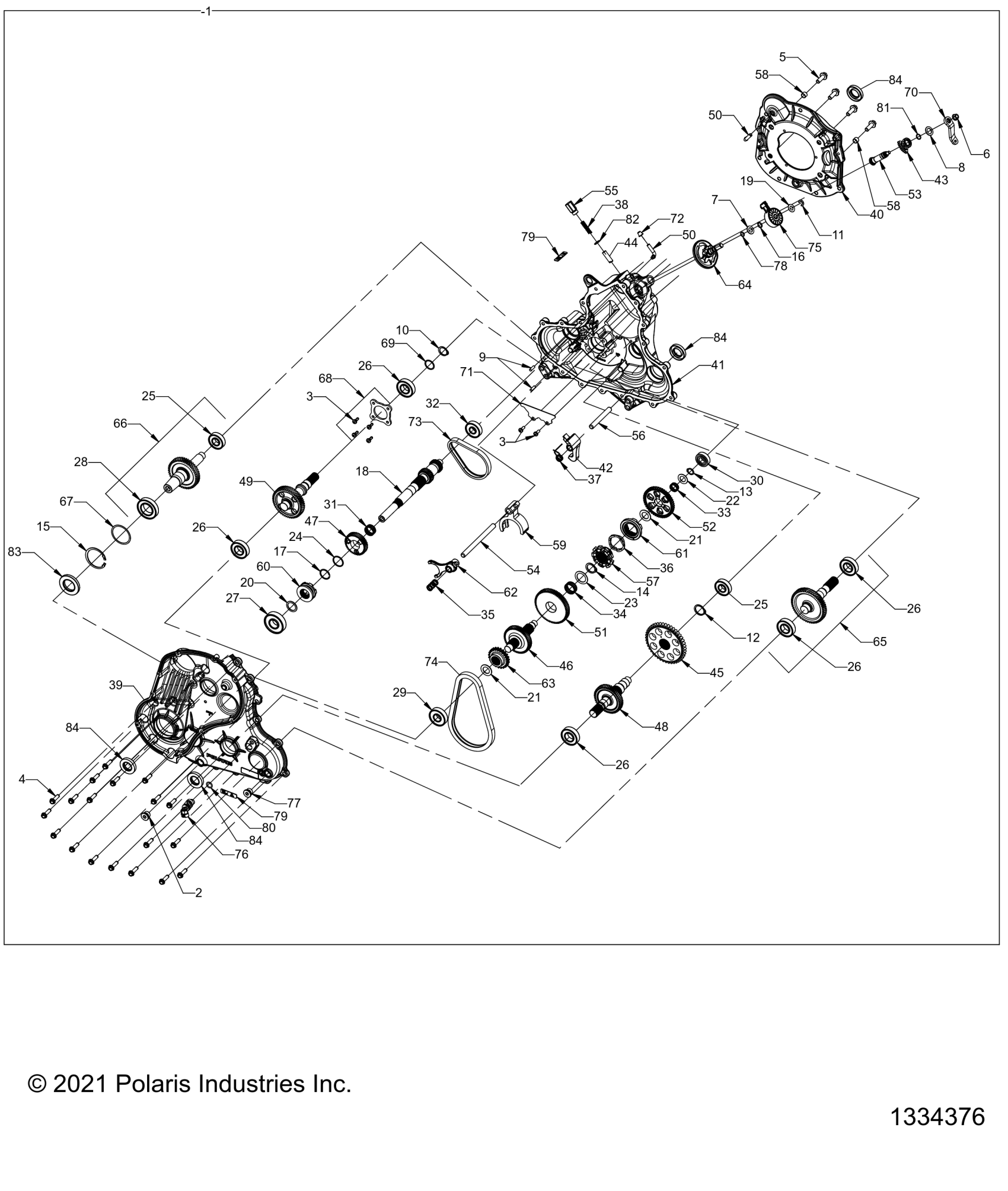

Polaris SCRAMBLER 850 48" (R01) - A23SVA85A3 DRIVE TRAIN, MAIN GEARCASE - A23SVA85A3 (1334376) Diagram

#

Description
Price

1

ASM-TRANS,BOSS/LUK,OPEN RATIO [INCL. ALL]

1334376

$3,299.99

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

3

SCREW, 6-LOBE, PAN HD M6 X 1 X 16

3234309

$7.14

3

SCREW, 6-LOBE, PAN HD M6 X 1 X 16

3234309

$7.14

4

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.52

5

SCREW, HEX FLANGE HEAD, M10 X 1.5 X 30

3234634

$13.49

6

NUT, LOCK, HEX FLANGE NYLON 5/16-24

3233961

$3.32

7

WASHER, THRUST, 0.5 X 0.937 X 0.063

3234636

$7.94

8

WASHER, THRUST, .625 X 1.000 X 0.063

3234637

$11.11

9

PIN, DOWEL 6 X 20

3234330

$7.14

10

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

11

RING, RETAINING BASIC EXTERNAL

3233834

$10.32

12

RING RETAINING, IRR 7200-118

3233699

$7.27

13

RING, RETAINING, EXTERNAL SHR-66

3234318

$3.17

14

RING, RETAINING BASIC, EXTERNA

3234327

$7.14

15

RING, RETAINING BASIC, INTERNAL, 62MM

3234741

$9.52

16

RING, RETAINING BASIC, EXTERNAL, SHR-50

3234639

$10.32

17

RING, RETAINING, EXTERNAL USC-112

3234641

$13.75

18

SHAFT, INPUT 25T

3236308

$375.24

19

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.32

20

WASHER, THRUST 1.300 X 0.995 X 0.065

3234248

$9.52

21

SHIM, 1.35 OD X 0.818 ID

3234643

$36.41

21

SHIM, 1.35 OD X 0.818 ID

3234643

$36.41

22

SHIM, 1.17 OD X 0.675 ID

3234644

$13.75

23

WASHER, THRUST, 1.568 OD X .1.110 ID

3234646

$23.81

24

WASHER, THRUST, � 33 X � 29 X 1.5

3234757

$11.11

25

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

25

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

26

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

26

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

26

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

26

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

26

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

27

BEARING

3233020

$47.62

28

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.68

29

BEARING BALL,6304STD 20X52X15

3234651

$15.87

30

BEARING, BALL 6203 17 X 40 X 12

3234274

$27.78

31

BEARING, NEEDLE, SPLIT CAGE

3234759

$15.87

32

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.87

33

BEARING, NEEDLE, CAGE ASSY 20 X 24 X 10

3234655

$15.87

34

BEARING, NEEDLE, 28 X 33 X 13

3234656

$15.87

35

SPRING, COMPRESSION, 0.648 O.D. X 1.33

3234687

$8.89

36

SPRING, WAVE, 1.60 ID X 0.375

3234688

$10.32

37

SPRING, PARK PAWL, TORSION

3234787

$28.32

38

SPRING, COMPRESSION, 0.45 OD X 1.58

3234790

$24.27

39

GEARCASE GTO, COVER, MACH

3234689

$459.99

40

BELLHOUSING, MACH

3235196

$49.99

41

GEARCASE, MAIN, GTO MACH

3235428

$399.99

42

PAWL, PARK

3239339

$52.60

43

GEAR, SECTOR, 38T

3234694

$35.54

44

BULLET DETENT

3234695

$44.99

45

SPROCKET, 44 TOOTH

3234998

$68.79

46

Shaft, Reverse, 53T

3234774

$232.74

47

GEAR, HELICAL, 42T

3235133

$80.94

48

SHAFT, OUTPUT REAR

3235195

$230.70

49

SHAFT, INPUT

3236557

$242.84

50

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$10.51

50

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$10.51

51

GEAR, 67T

3234706

$93.08

52

SPROCKET 48T 6-FACE

3236309

$52.60

53

SHAFT, SHIFT, BELLCRANK

3234712

$75.99

54

Rail, Shift, Shaft

3234714

$28.32

55

PLUG, DETENT

3234715

$35.71

56

RAIL, PARK SHAFT

3234716

$28.32

57

DOG, ENGAGEMENT, GTO, LOW

3234718

$186.17

58

PIPE, KNOCK

3234765

$13.75

58

PIPE, KNOCK

3234765

$13.75

59

FORK, SHIFT

3236310

$93.08

60

DOG, ENGAGEMENT, GTO, HIGH

3235190

$87.13

61

DOG, ENGAGEMENT, GTO, REV/LOW

3235341

$182.13

62

FORK, SHIFT

3235342

$89.03

63

Sprocket, 23T

3235544

$40.46

64

SUBASM., SWITCH SHAFT

3234767

$125.46

65

SUBASSY, OUTPUT, FRONT W/BEARINGS (#27)

3234723

$222.60

66

SUBASSEMBLY, PRIMARY SHAFT W/BEARINGS (#46 & #25)

3235191

$365.74

67

KIT, GTO, PRIMARY SHIM PACK

2204268

$39.68

68

SUBASSY BEARING COVER W/SCREWS (#3)

3235198

$26.17

69

KIT, LUK, INPUT SHAFT SHIM PACK

2204343

$38.08

70

BELLCRANK, 15T SPLINE

3234724

$28.32

71

Deflector, Oil

3234725

$13.75

72

PLUG, EXPANSION 1-1/4

3233578

$7.99

73

CHAIN, SILENT, TYPE 103 .25P X .48W X 58L

3235633

$267.13

74

CHAIN SILENT, 0.5 X .375P X 64P

3234738

$246.89

75

SWITCH, ROTARY, 2 PIN RESISTIVE

7662383

$113.32

76

SENSOR-SPEED,TRANS

4013908

$109.27

77

PLUG, M18 X 1.5

3234755

$27.78

78

O-RING - N70, 9.5 MM X 2 MM

3236171

$11.99

79

LABEL, OIL

2877606

$23.74

79

LABEL, OIL

2877606

$23.74

80

O-RING, -113 VITON

3233840

$11.32

81

O-RING, -014 VITON

3233828

$6.87

82

O-RING, 0.53 I.D X 0.082 WIDE

3234729

$13.75

83

SEAL, 35 X 62 X 8

3234769

$44.51

84

SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON

3234892

$36.41

84

SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON

3234892

$36.41

84

SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON

3234892

$36.41

84

SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON

3234892

$36.41
