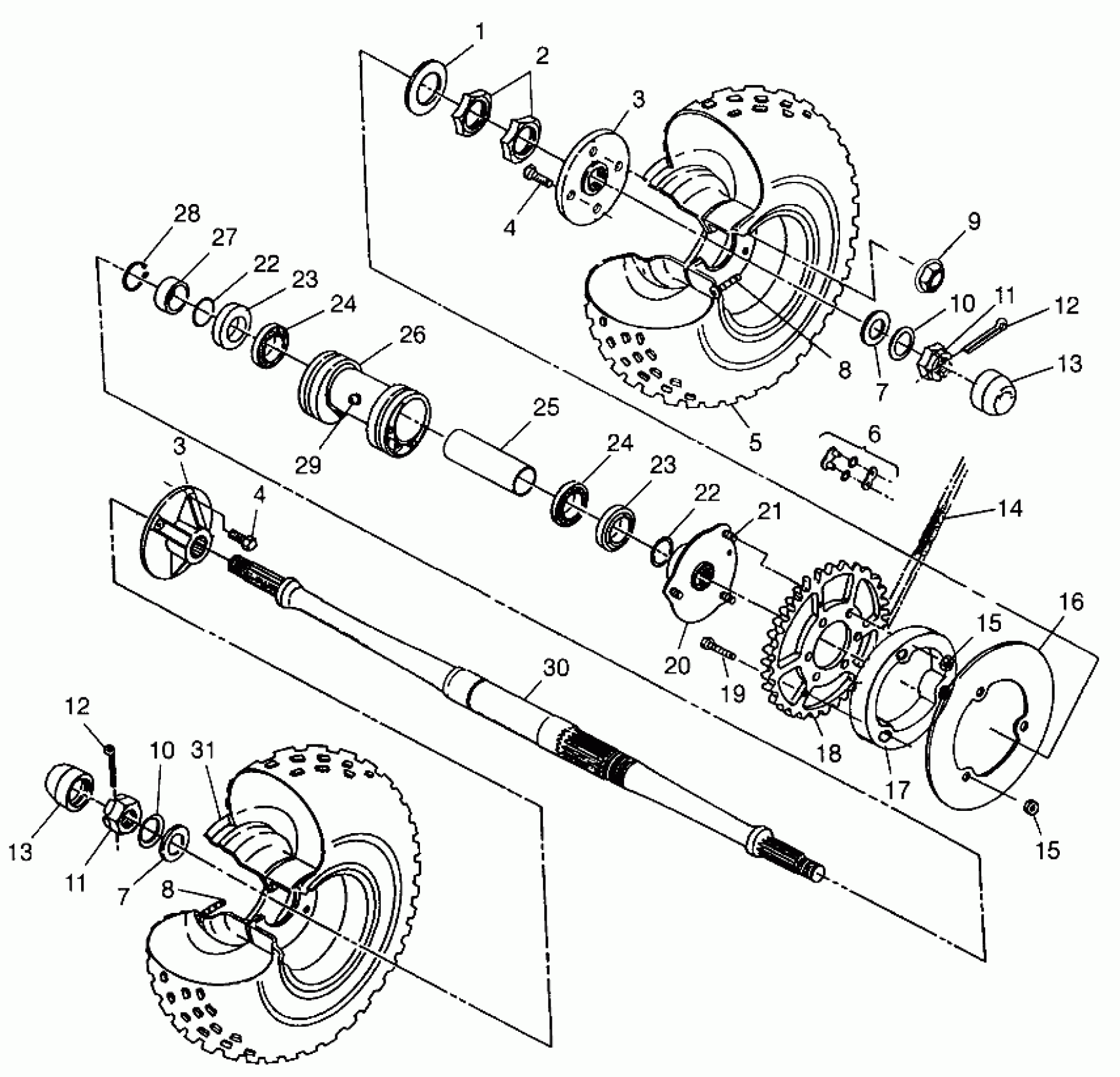

Polaris SCRAMBLER 500 - W97BC50A REAR WHEEL DRIVE Scrambler 500 W97BC50A (4943074307C006) Diagram

#

Description
Price

1

WASHER(10)

7555764

Unavailable

2

Nut, Jam

5020468

Unavailable

3

HUB,R.WHEEL Substituted by 5131777

5131284

$88.87

3

HUB,R.WHEEL Substituted by 5131777

5131284

$88.87

4

BOLT, WHEEL(10)

7512673

$3.17

4

BOLT, WHEEL(10)

7512673

$3.17

5

TIRE,22X11-10,TITAN (22X11X10)

5412323

$144.99

6

CONNECTOR LINK,CHAIN

3225026

$32.37

7

WASHER(10)

7555745

Unavailable

7

WASHER(10)

7555745

Unavailable

8

VALVE-RIM

1525017

$6.46

8

VALVE-RIM

1525017

$6.46

9

Nut

7547037

$10.32

10

WASHER, CONE(10)

7555796

$7.94

10

WASHER, CONE(10)

7555796

$7.94

11

NUT, CASTLE(10)

7543005

Unavailable

11

NUT, CASTLE(10)

7543005

Unavailable

12

PIN, COTTER(10)

7661404

$4.76

12

PIN, COTTER(10)

7661404

$4.76

13

DUSTCOVER, HUB

5411164

$28.32

13

DUSTCOVER, HUB

5411164

$28.32

14

CHAIN, 84P

3224056-084

$145.70

15

NUT-LOCK(10)

7542439

$1.19

15

NUT-LOCK(10)

7542439

$1.19

16

GUARD,38T SPKT,BLK.ALUM.

5211585-067

Unavailable

17

SPACER-SPROCKET GUARD

5630586

Unavailable

18

SPROCKET, 38T

3222065

$113.99

19

BOLT(10)

7515540

$4.76

20

SPROCKET HUB ASM. (Incl. 21)

1520170

Unavailable

21

STUD(10)

7515513

$1.19

22

O RING, 1 5/16(10)

5410415

Unavailable

22

O RING, 1 5/16(10)

5410415

Unavailable

23

SEAL, REAR AXLE

3610013

Unavailable

23

SEAL, REAR AXLE

3610013

Unavailable

24

Bearing, Ball

3515501

$27.78

24

Bearing, Ball

3515501

$27.78

25

TUBE,BEARING SPACER

5010204

Unavailable

26

HOUSING, AXLE

5130663

Unavailable

27

SPACER,BEARING

5010206

Unavailable

28

RING, SNAP(10)

7710405

$4.76

29

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

30

AXLE,REAR,HVY.

5020790

$349.99

31

RIM,REAR,SILVER

1520204-117

Unavailable
