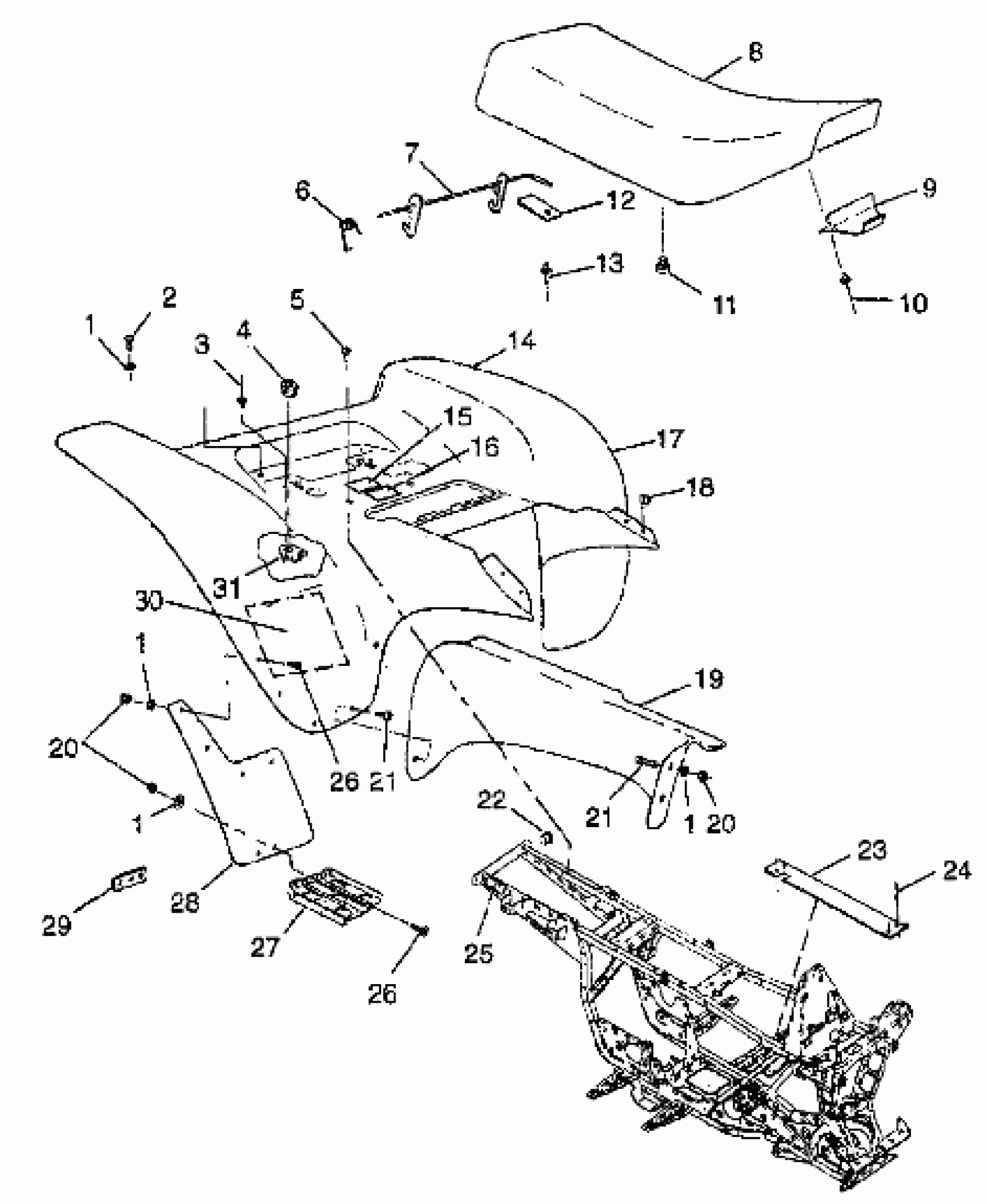

Polaris SCRAMBLER 500 - W97BC50A REAR CAB Scrambler 500 W97BC50A (4943074307A006) Diagram

#

Description
Price

1

WASHER, FLAT(10)

7555859

$1.19

1

WASHER, FLAT(10)

7555859

$1.19

1

WASHER, FLAT(10)

7555859

$1.19

1

WASHER, FLAT(10)

7555859

$1.19

2

BOLT(10)

7512232

$1.19

3

RIVET(50)

7621472

$1.49

4

Grommet

5411042

$6.35

5

SCREW(10)

7515180

Unavailable

6

SPRING,LATCH,LIGHT

7041607

Unavailable

7

LATCH, SEATBACK

1040412

Unavailable

8

COVER,SEAT,BLK.

2681769-070

Unavailable

8

SEAT ASM,BLK Substituted by 2682361-070

2682320-070

Unavailable

9

TONGUE,SEAT

5431986

$10.51

10

RIVET(50)

7621479

$1.98

11

Bumper, Rubber

5410414

$3.17

12

BRACKET,LEVER RETAINER

5211033

$34.99

13

BLIND RIVET(50)

7621403

$1.19

14

Foil, Rear Cab, Small

5810991

Unavailable

15

DECAL,CARB.INFO.

7073761

Unavailable

16

DECAL,FILTER,4-STRK

7077184

Unavailable

17

CAB,REAR,PUR.WAVE,GEN III (Purple Wave)

5432606-214

Unavailable

18

NUT, SPEED(10)

7670057

$1.19

19

SHIELD,MUFFLER,BLK. Substituted by 5433105-070

5432608-070

Unavailable

19

FOIL-FOAM,MUFFL.SHIELD Substituted by 5811676

5811525

Unavailable

20

NUT-LOCK(10)

7542122

$1.19

20

NUT-LOCK(10)

7542122

$1.19

21

Screw

7517264

$3.97

21

Screw

7517264

$3.97

22

PLUG,ENDCAP(10)

5432047

$4.92

23

GUARD,OUT.CLUTCH,BLK.

5224614-067

Unavailable

24

RIVET,INTERLOCK,B(50)

7661638

$1.19

25

REFLECTOR ASM,RED

2670133

$5.71

26

BOLT, BLACK(10)

7512282

Unavailable

26

BOLT, BLACK(10)

7512282

Unavailable

27

Footpad (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

28

MUDFLAP,LH,REAR

5850122

$13.89

28

MUDFLAP,RH,REAR

5850123

Unavailable

29

BRKT, LH MUD FLAP

5211131-067

Unavailable

30

Foil, Rear Cab

5810957

Unavailable

31

BRKT,R.HOLDDOWN

5220880

Unavailable
