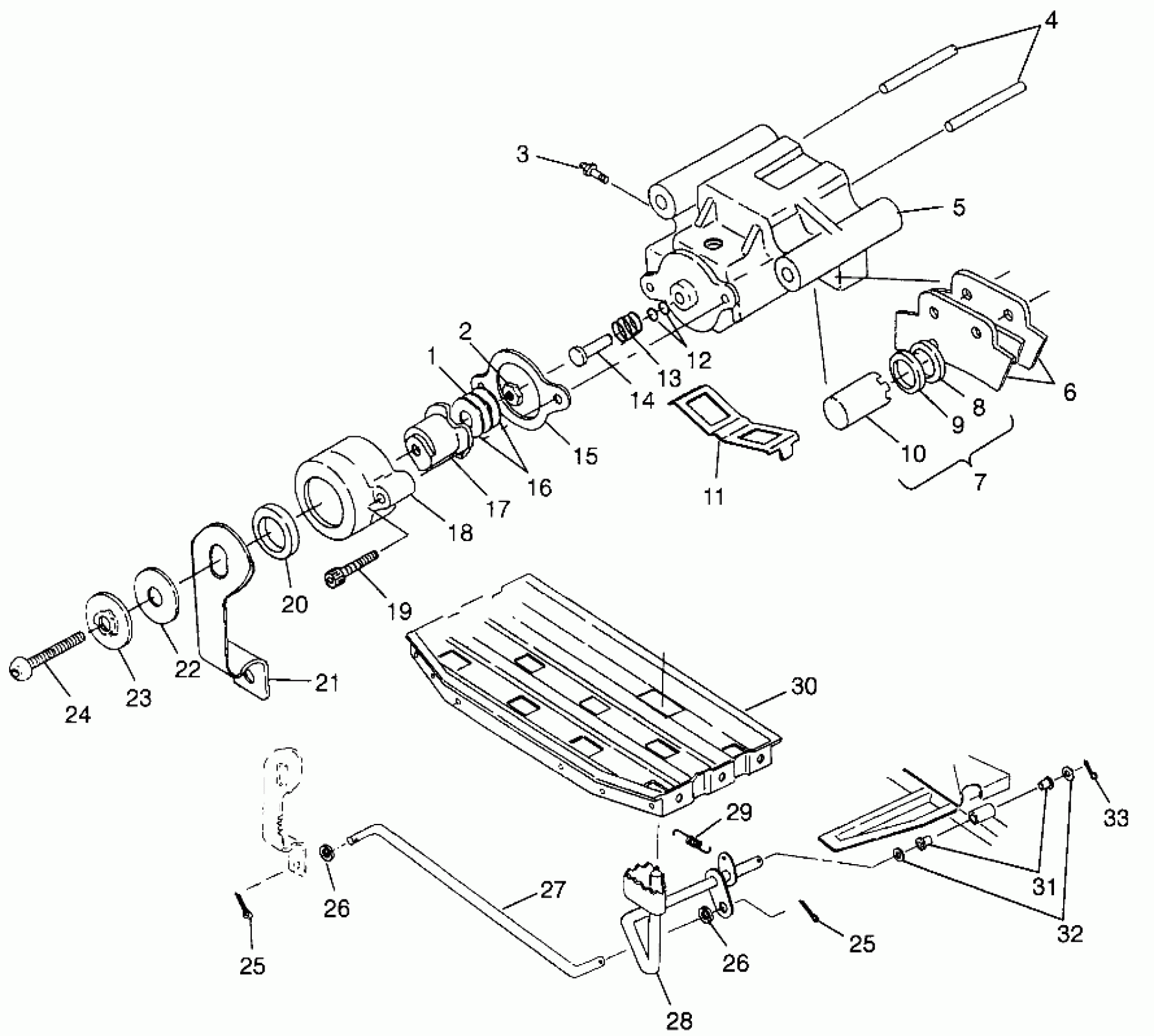

Polaris SCRAMBLER 500 - W97BC50A REAR BRAKE Scrambler 500 W97BC50A (4943074307C005) Diagram

#

Description
Price

1

WASHER(10)

7555921

Unavailable

2

NUT, LH(10)

7542149

$5.43

3

SCREW,BLEEDER

7080352

$3.19

4

PIN, DOWEL(10)

7661820

$13.99

5

CALIPER,R.BRAKE,MACH

5131272

Unavailable

6

KIT,R.BRAKEPAD,HVY.DUTY

2200899

Unavailable

7

KIT-PISTON & SEAL (Incl. 8-10)

2200463

$87.99

8

SQUARE RING-MOLDED (.134) (.134 Sq.)

5410766

$11.99

9

RING, SQUARE,(1''DIAM.) Substituted by 2200463 (.099 Sq.)

5410767

Unavailable

10

Piston, Brake

-------

Unavailable

11

SPRING,ANTI-RATTLE

5240993

Unavailable

12

O RING-.364X.504X.07

5410542

Unavailable

13

SPRING,BRAKE,COMP.

7041219

$24.99

14

PIN,BRAKE CALIPER

5020791

Unavailable

15

GASKET, BRAKE

5830009

$9.99

16

WASHER(10)

7555827

$3.99

17

RAMP,MOVE.BRAKE(THRD PIN)

5630650

Unavailable

18

RAMP,STAT.BRAKE(D/C)

5630652

Unavailable

19

SCREW(10)

7512173

Unavailable

20

SEAL, BRAKE

3610026

$7.99

21

ARM,BRAKE CALIPER

5240901

Unavailable

22

WASHER, SPRING(10)

7555828

Unavailable

23

WASHER(10)

7571632

Unavailable

24

BOLT,LH SOC/HD.

7515160

Unavailable

25

PIN COTTER(10)

7661203

$1.49

25

PIN COTTER(10)

7661203

$1.49

26

WASHER(10)

7555806

$1.49

26

WASHER(10)

7555806

$1.49

27

ROD, BRAKE

5224531

$51.99

28

BRAKE,FOOT,BLK.

1910172-067

Unavailable

29

SPRING-EXHAUST(10)

7042029

$4.84

30

Pad, Foot (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

31

BUSHING-PEDAL PIVOT

5431107

$8.79

32

WASHER(10)

7555919

$4.99

33

COTTER PIN(10)

7661401

$1.49
