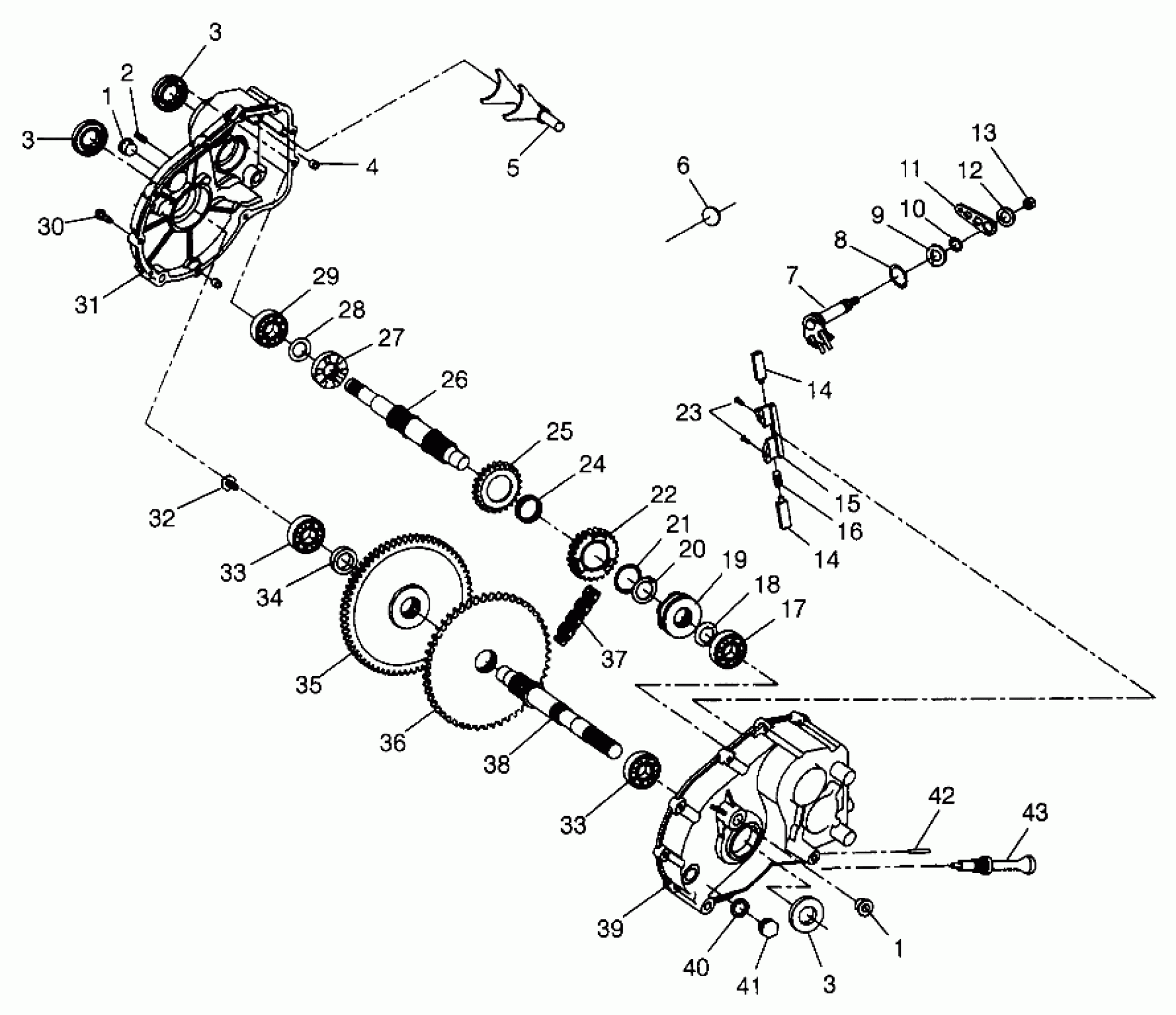

Polaris SCRAMBLER 500 - W97BC50A GEARCASE Scrambler 500 W97BC50A (4943074307C009) Diagram

#

Description
Price

-

GEARCASE ASM,HI/REV. (Incl. 1-43)

1341214

Unavailable

1

BUSHING,PIVOT

3233024

Unavailable

1

BUSHING,PIVOT

3233024

Unavailable

2

STUD

3233025

Unavailable

3

Seal

3233248

$30.88

3

Seal

3233248

$30.88

3

Seal

3233248

$30.88

4

PIPE, KNOCK

3233021

Unavailable

5

FORK,SHIFT,HR

3233231

Unavailable

6

PLUG

3233178

Unavailable

7

SHAFT,SHIFT,WELD/ASM.

3233232

Unavailable

8

O-RING

3233179

Unavailable

9

WASHER

3233119

$7.79

10

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

11

BELLCRANK, HI/REV

3233155

Unavailable

12

Washer

3233054

$6.46

13

Nut

3233055

Unavailable

14

PIN

3233031

$32.11

14

PIN

3233031

$32.11

15

BRACKET

3233030

$21.43

16

SPRING

3233233

Unavailable

17

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

18

WASHER

3233007

Unavailable

19

DOG,FWD.ENGAGEMENT

3233237

Unavailable

20

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

21

Washer

3233105

$7.19

22

SPKT,19T,FWD.

3233236

Unavailable

23

SCREW Substituted by 3233747

3233033

Unavailable

24

BEARING, NEEDLE

3233103

$31.99

25

GEAR,REVERSE

3233235

Unavailable

26

SHAFT, INPUT

3233181

$214.29

27

DOG,REV.ENGAGEMENT

3233234

Unavailable

28

WASHER

3233099

Unavailable

29

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

30

Screw

3233026

$6.46

31

GEARCASE, LH.

3233095

$298.99

32

BUSHING,SPEEDO.DRIVE

5020741

$9.03

33

BEARING

3233020

$47.99

33

BEARING

3233020

$47.99

34

VALVE,SHOCK

1500032

$4.95

35

GEAR, 65T

3233109

Unavailable

36

SPROCKET, 51T

3233121

Unavailable

37

CHAIN,SILENT,60P (11W)

3233111

$79.19

38

SHAFT,OUTPUT

3233461

Unavailable

39

GEARCASE,RH

3233238

Unavailable

40

Washer

3233035

Unavailable

41

Plug

3233448

$23.99

42

Vent

3233037

Unavailable

43

DIPSTICK Substituted by 3233478

3233115

$24.27
