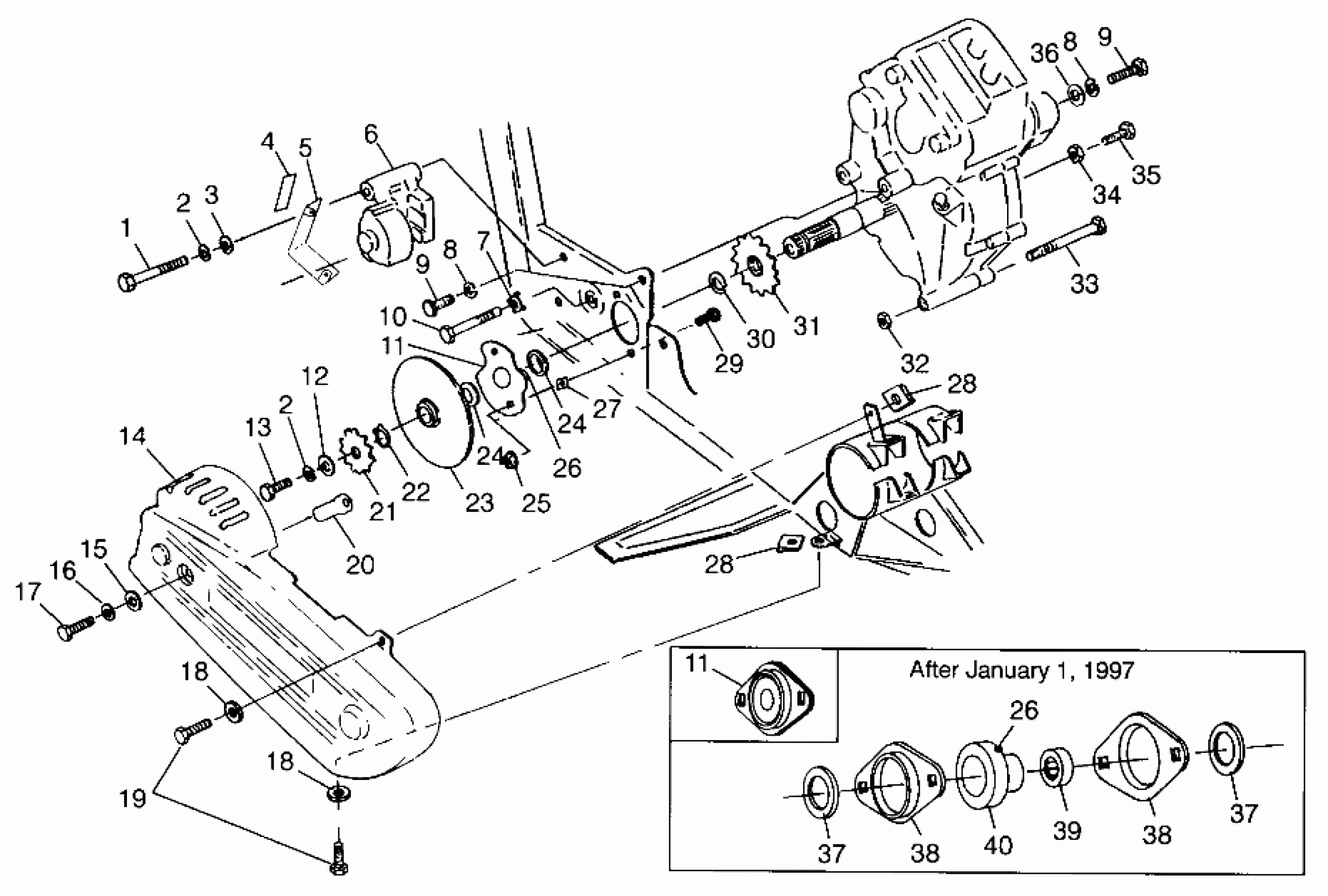

Polaris SCRAMBLER 500 - W97BC50A GEARCASE/BRAKE and CHAIN COVER MOUNTING Scrambler 500 W97BC50A (4943074307C004) Diagram

#

Description
Price

1

BOLT(10)

7515345

$5.56

2

LOCK WASHER(10)

7552901

$1.19

2

LOCK WASHER(10)

7552901

$1.19

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

4

DECAL,BRAKE SHIELD

7075339

Unavailable

5

SHIELD,R.CALIPER,BLK.

5241018-067

Unavailable

6

CALIPER ASM,R.BRAKE

1910227

Unavailable

7

Plate, Bolt Lock (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

8

WASHER(10)

7552603

$0.79

8

WASHER(10)

7552603

$0.79

9

BOLT(10)

7515522

$3.97

9

BOLT(10)

7515522

$3.97

10

Bolt, Shoulder (Long) (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

11

BRG.ASM,O/P SHAFT (Incl. 27) (Before Jan. 1, 1997)

1590237

$84.99

11

SHAFT ASM,O/P,NDL BRG. Substituted by 2201115 (After Jan. 1, 1997)

1590265

Unavailable

11

BRG.ASM,O/P SHAFT (Incl. 27) (Before Jan. 1, 1997)

1590237

$84.99

11

SHAFT ASM,O/P,NDL BRG. Substituted by 2201115 (After Jan. 1, 1997)

1590265

Unavailable

12

WASHER FLAT(10)

7555701

$3.97

13

BOLT(10)

7515321

Unavailable

14

GUARD,CHAIN,CTR.

5431717

Unavailable

15

WASHER(10) Substituted by 7558402

7555770

$0.99

16

WASHER(10)

7552606

$4.76

17

BOLT(10)

7515384

Unavailable

18

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

18

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

19

BOLT(10)

7512269

Unavailable

20

SPACER,CHAIN GUARD

5333254

Unavailable

21

SPKT, 11T

3221058

$74.99

22

RING,RETAINING(10)

7710433

$4.76

23

DISC ASM,BRAKE

1910177

Unavailable

24

SEAL, BRAKE (Only w/PN 1590237)

3610026

Unavailable

24

SEAL, BRAKE (Only w/PN 1590237)

3610026

Unavailable

25

NUT,FLANGE LOCK(10)

7542449

$3.97

26

ZERK,FITTING,THREADED(10) (Only w/PN 1590237)

7080433

$1.19

26

ZERK,FITTING,THREADED(10) (Only w/PN 1590237)

7080433

$1.19

27

SPACER,(10) (.020)

5210764

Unavailable

27

SHIM,.010,GEARCASE (.010)

5211065

Unavailable

27

SHIM,(.030) (.030) Note: Use shims only with Output Shaft Bearing PN 1590237

5211517

Unavailable

28

NUT, SPEED(10)

7670060

$3.97

28

NUT, SPEED(10)

7670060

$3.97

29

BOLT,CARRIAGE(10)

7515484

Unavailable

30

RING,SNAP(10)

7710434

$3.97

31

SPKT, 12T

3221044

$44.51

32

NUT LOCK(10)

7542403

Unavailable

33

BOLT(10)

7515472

$2.38

34

NUT(10)

7542404

$1.59

35

BOLT(10)

7515485

$3.02

36

WASHER Substituted by 7555720

7555784

$0.79

37

SEAL,BRAKE

3610062

Unavailable

37

SEAL,BRAKE

3610062

Unavailable

38

FLANGETTE,O/P SHAFT BRNG.

5242072

Unavailable

38

FLANGETTE,O/P SHAFT BRNG.

5242072

Unavailable

39

BEARING,NEEDLE

3554202

Unavailable

40

HSG,BRNG,O/P SHAFT

5131643

Unavailable
