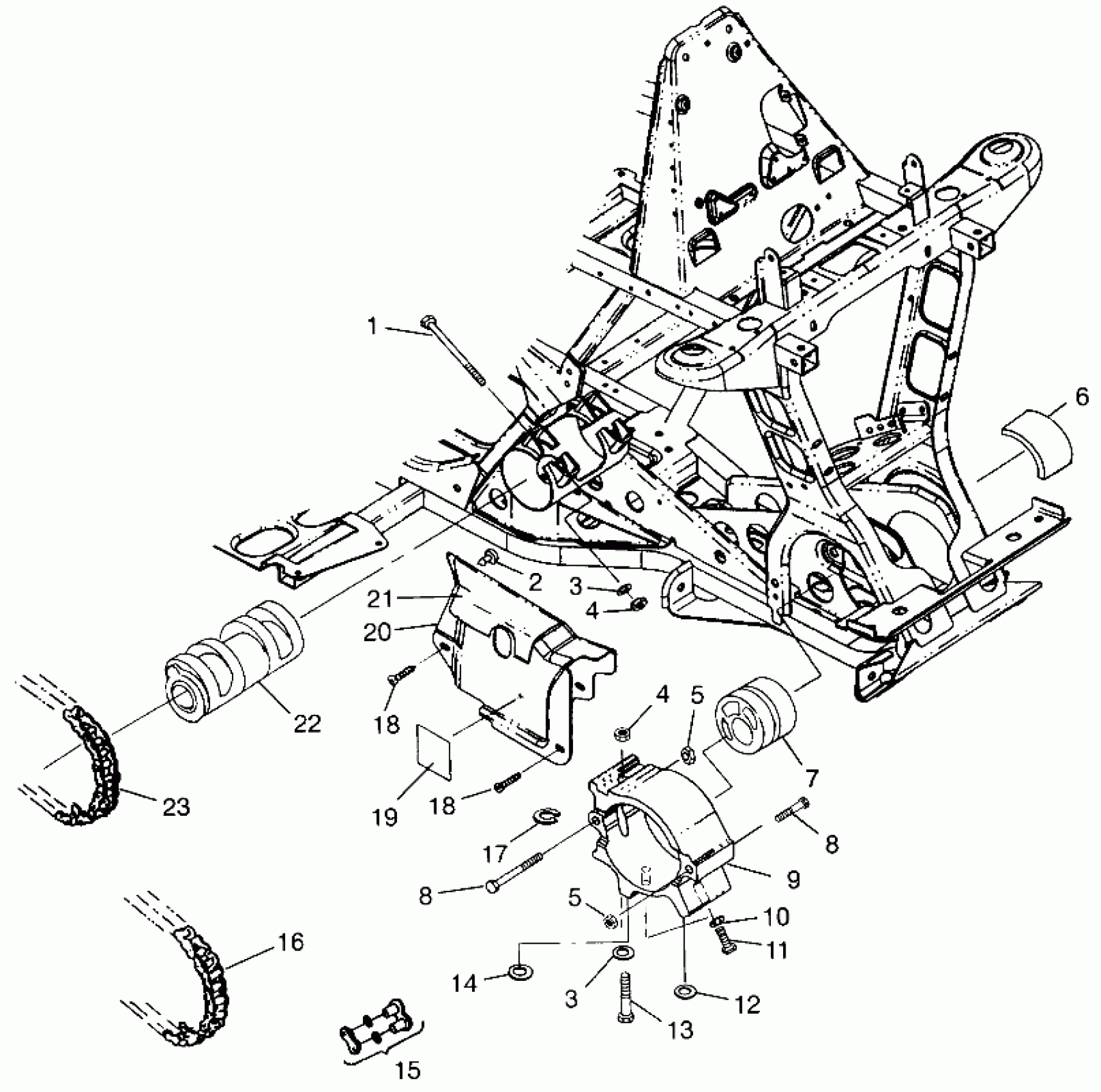

Polaris SCRAMBLER 500 - W97BC50A FRONT DRIVE Scrambler 500 W97BC50A (4943074307B002) Diagram

#

Description
Price

1

BOLT(10)

7512583

Unavailable

2

CLIP,X-MAS TREE

7670101

$2.39

3

WASHER(10)

7555883

$3.99

3

WASHER(10)

7555883

$3.99

4

NUT, LOCK,(10)

7542503

$10.39

4

NUT, LOCK,(10)

7542503

$10.39

5

NUT(10)

7542423

$3.99

5

NUT(10)

7542423

$3.99

6

SPACER,F.ECCENTRIC

5811519

Unavailable

7

Asm., Front Tightener (See Pg. NO TAG For Details)

-------

Unavailable

8

SCREW

7517303

Unavailable

8

SCREW

7517303

Unavailable

9

CLAMP,FR.ECCENTRIC

5131379

Unavailable

10

WASHER(10)

7552603

$1.49

11

BOLT(10)

7515522

$3.99

12

WASHER, THRUST(10) Substituted by 7555871

7555787

Unavailable

13

SCREW

7517304

Unavailable

14

WASHER Substituted by 7555720

7555784

Unavailable

15

CONNECTOR LINK

3225024

$19.99

16

CHAIN, DRIVE Substituted by 3224056-064 (Incl. 15)

3224041

Unavailable

17

SHIM,(.030) (.030)

5211517

$29.99

18

SCREW(10)

7512252

Unavailable

18

SCREW(10)

7512252

Unavailable

19

DECAL,FR.CHAIN TENSION

7074956

Unavailable

20

GUARD,FR.CHAIN

5432572

Unavailable

21

FOIL,CHAINGUARD

5811502

Unavailable

22

Asm., Center Tightener (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

23

CHAIN, DRIVE Substituted by 3224056-070 (Incl. 15)

3224044

Unavailable
