Description

Price

1

NUT, SPEED(10)

7670060

$3.99

1

NUT, SPEED(10)

7670060

$3.99

2

FRAME,MAIN,(SCRM.500)

1040562-067

Unavailable

3

RIVET,3/16X.402(50)

7621432

$1.49

4

STRAP,MTG,FUELPUMP

5211547-067

$2.02

5

SEAL,FOAM

5811527

Unavailable

6

COVER,FR(SCRBLR500)BLK

5432553-070

$111.10

7

CAB ASM,FR,PUR.WAVE Substituted by 2631925-214 (Purple Wave) (w/Warning Decals)

2631666-214

$253.97

8

WASHER(10) Substituted by 7558301

7555776

Unavailable

9

SCREW(10)

7522026

$4.79

10

WASHER, FLAT(10)

7558201

$5.79

11

RIVET [No Longer Available]

7621471

Unavailable

12

WASHER,FLAT

7556037

Unavailable

13

Screw

7517264

$3.99

14

BOLT, BLACK(10)

7512282

$1.49

15

WASHER, FLAT(10)

7555859

$1.49

16

NUT-LOCK(10)

7542122

$1.49

16

NUT-LOCK(10)

7542122

$1.49

17

BRKT, LH MUD FLAP (3 Hole)

5211131-067

Unavailable

17

BRKT,RH MUD FLAP (2 Hole)

5211020-067

Unavailable

18

MUDFLAP,LH,FRONT

5850113

$18.59

18

MUDFLAP,RH.FRONT

5850142

Unavailable

19

RIVET,INTERLOCK,B(50)

7661638

$1.49

20

FOOTPAD,LH,BLK.

1040410-067

Unavailable

20

FOOTPAD,RH,BLK.

1040411-067

Unavailable

21

RIVET,(50)

7661825

$1.49

22

Trim, Footrest

5431484

Unavailable

23

BOLT(10)

7512232

$1.49

24

SCREW(10)

7512252

Unavailable

25

GUARD,ROCK,BLK

5242016-067

Unavailable

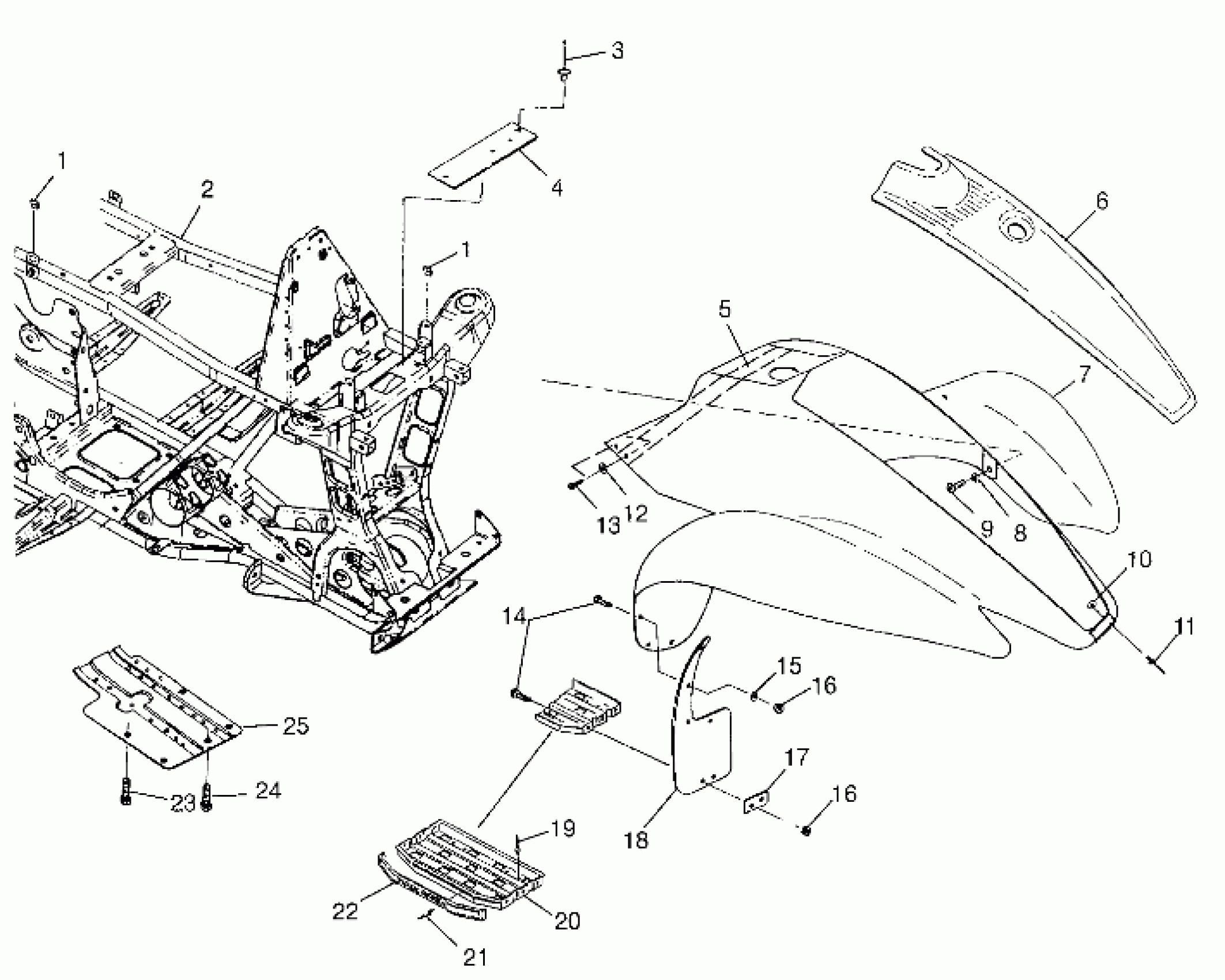

Polaris SCRAMBLER 500 - W97BC50A FRONT CAB Scrambler 500 W97BC50A (4943074307A005) Diagram

NUT, SPEED(10)

NUT, SPEED(10)

FRAME,MAIN,(SCRM.500)

RIVET,3/16X.402(50)

STRAP,MTG,FUELPUMP

SEAL,FOAM

COVER,FR(SCRBLR500)BLK

CAB ASM,FR,PUR.WAVE Substituted by 2631925-214 (Purple Wave) (w/Warning Decals)

WASHER(10) Substituted by 7558301

SCREW(10)

WASHER, FLAT(10)

RIVET [No Longer Available]

WASHER,FLAT

Screw

BOLT, BLACK(10)

WASHER, FLAT(10)

NUT-LOCK(10)

NUT-LOCK(10)

BRKT, LH MUD FLAP (3 Hole)

BRKT,RH MUD FLAP (2 Hole)

MUDFLAP,LH,FRONT

MUDFLAP,RH.FRONT

RIVET,INTERLOCK,B(50)

FOOTPAD,LH,BLK.

FOOTPAD,RH,BLK.

RIVET,(50)

Trim, Footrest

BOLT(10)

SCREW(10)

GUARD,ROCK,BLK
