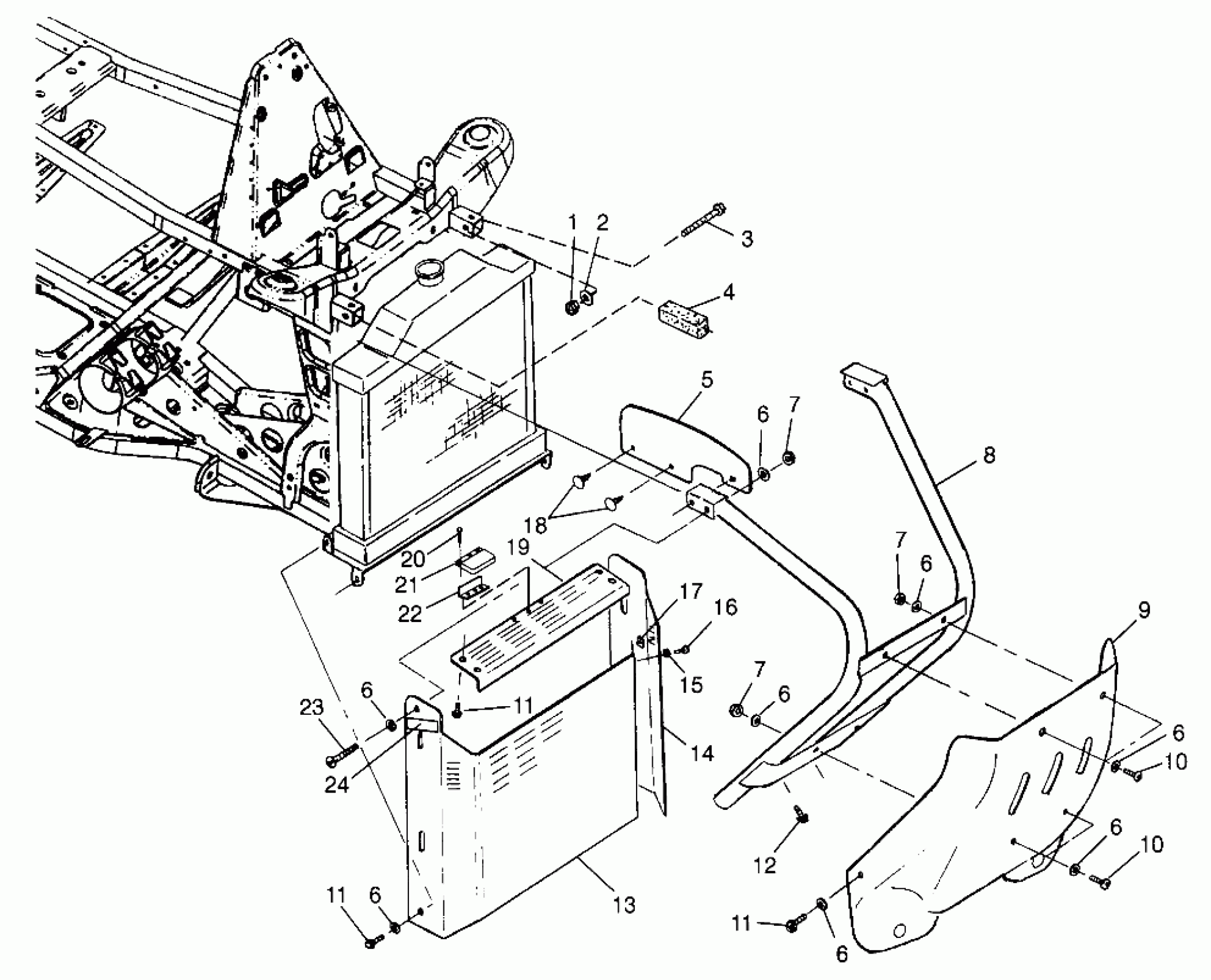

Polaris SCRAMBLER 500 - W97BC50A FRONT BUMPER and SHIELDS Scrambler 500 W97BC50A (4943074307A007) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

3

BOLT(10)

7512329

$3.99

4

PLUG, FRAME

5810467

Unavailable

5

SHIELD,LH,DEFLECTOR

5850140

Unavailable

5

SHIELD,RH,DEFLECTOR

5850141

$9.91

6

WASHER(10) Substituted by 7558301

7555776

Unavailable

6

WASHER(10) Substituted by 7558301

7555776

Unavailable

6

WASHER(10) Substituted by 7558301

7555776

Unavailable

6

WASHER(10) Substituted by 7558301

7555776

Unavailable

6

WASHER(10) Substituted by 7558301

7555776

Unavailable

6

WASHER(10) Substituted by 7558301

7555776

Unavailable

6

WASHER(10) Substituted by 7558301

7555776

Unavailable

6

WASHER(10) Substituted by 7558301

7555776

Unavailable

7

NUT(10)

7542124

Unavailable

7

NUT(10)

7542124

Unavailable

7

NUT(10)

7542124

Unavailable

8

BUMPER,FRONT,BLK Substituted by 2670161-067

1040516-067

Unavailable

9

PLATE,SKID,BUMPER,BLK

5432378-070

$92.39

10

BOLT(10)

7512590

Unavailable

10

BOLT(10)

7512590

Unavailable

11

SCREW [No Longer Available]

7517417

Unavailable

11

SCREW [No Longer Available]

7517417

Unavailable

11

SCREW [No Longer Available]

7517417

Unavailable

12

SCREW(10)

7515399

$1.49

13

SHIELD,RH,RAD.SIDE,BLK. Substituted by 5242682-067

5240870-067

Unavailable

14

SHIELD,LH,RAD.SIDE,BLK. Substituted by 5242996-067

5240869-067

Unavailable

15

WASHER(10)

7552605

$5.27

16

BOLT, BLACK(10)

7512282

$1.49

17

NUT, SPEED(10)

7670060

$3.99

18

CLIP-PLASTIC DART, NYLON

7670088

$1.59

19

SHIELD,UP.RADIATOR,BLK Substituted by 5242683-067

5242076-067

Unavailable

20

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

21

RECTIFIER,FULL WAVE

4060173

Unavailable

22

HEATSINK RECT.

5131036

Unavailable

23

BOLT(10)

7512281

$3.99

24

REFLECTOR ASM,AMBER

2670134

$9.70
