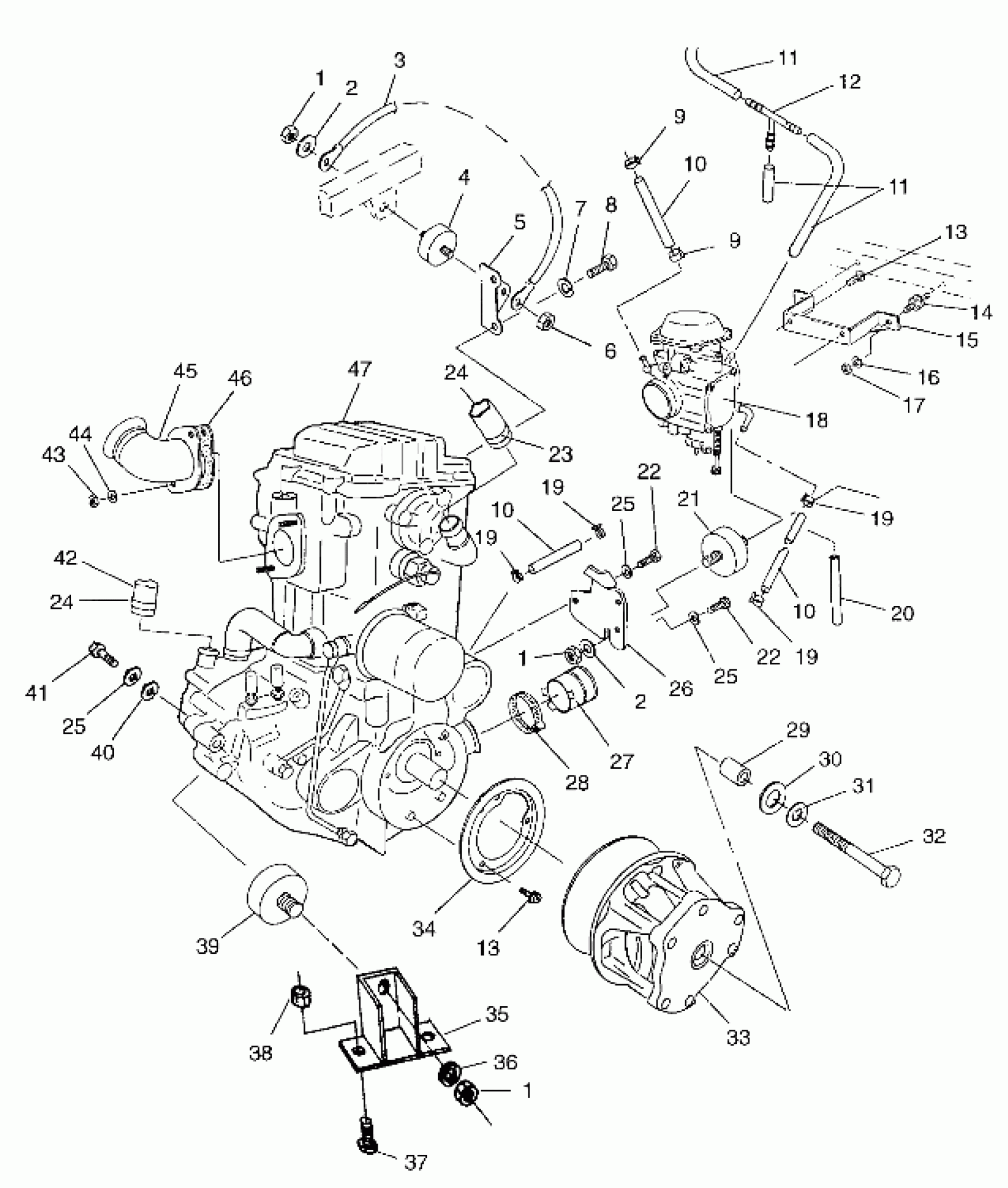

Polaris SCRAMBLER 500 - W97BC50A ENGINE MOUNTING Scrambler 500 W97BC50A (4943074307A009) Diagram

#

Description
Price

1

NUT LOCK(10)

7542411

$3.19

1

NUT LOCK(10)

7542411

$3.19

1

NUT LOCK(10)

7542411

$3.19

2

WASHER(10)

7555801

$3.99

2

WASHER(10)

7555801

$3.99

3

CABLE,GND-ENGINE

4010132

Unavailable

4

MOUNT,RUBBER,TOP

3110044

Unavailable

5

MOUNT,ENG.TOP, BLK.

5240328-067

Unavailable

6

NUT LOCK(10)

7542403

$3.99

7

LOCK WASHER(10)

7552901

$1.49

8

BOLT(10)

7512315

$4.79

9

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

9

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

10

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

10

FOIL-TAPE,AIR BOX

5811373

$2.47

10

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

10

FOIL-TAPE,AIR BOX

5811373

$2.47

10

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

10

FOIL-TAPE,AIR BOX

5811373

$2.47

11

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

11

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

12

FITTING, TEE

7052075

$9.59

13

Screw and Washer (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

13

Screw and Washer (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

14

MOUNT,CARB.

3110050

$12.99

15

BRKT, CARB.MT.

5240609-067

Unavailable

16

WASHER(10)

7552605

$5.27

17

NUT HEX(10)

7542105

$3.99

18

Asm., Carburetor (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

19

HOSE CLAMP, RED (Red)

7080003

$1.49

19

HOSE CLAMP, RED (Red)

7080003

$1.49

19

HOSE CLAMP, RED (Red)

7080003

$1.49

19

HOSE CLAMP, RED (Red)

7080003

$1.49

20

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

21

MOUNT,R.RUBBER

3110068

$38.60

22

SCREW(10)

7512490

$3.99

22

SCREW(10)

7512490

$3.99

23

Hose, Chafe Protected (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

24

CLAMP,HOSE,1.25,WORM DRIVE

7080696

$5.59

24

CLAMP,HOSE,1.25,WORM DRIVE

7080696

$5.59

25

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

25

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

25

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

26

MOUNT,R.ENG,BLK

5241921-067

$10.71

27

BOOT,CLUTCH INTAKE

5410421

$11.19

28

CLAMP, NARROW BAND(10)

7080511

$4.79

29

BUSHING-.437 X.770 X.50

5430261

$7.19

30

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

31

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

32

BOLT(10)

7512566

$30.79

33

Asm., Drive Clutch, ATV-07 (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

34

Bracket, Retainer, Seal (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

35

MOUNT,ENG,BLK

1040534-067

$13.99

36

WASHER(10)

7555806

$1.49

37

SCREW(10)

7515398

$2.39

38

NUT-5/16-18 NYLOK-Y

7542324

$1.49

39

MOUNT,MOTOR

3110067

Unavailable

40

WSHR-.813X.406X.105-Y

7555832

$2.39

41

BOLT(10)

7515438

$4.79

42

Hose, Upper Engine (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

43

Nut (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

44

Washer, Lock (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

45

MANIFOLD,BLK

1260832-029

Unavailable

46

Gasket (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

47

ENG.(S.B.)EH50PLE-01 NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required for warranty co

3085556

Unavailable
