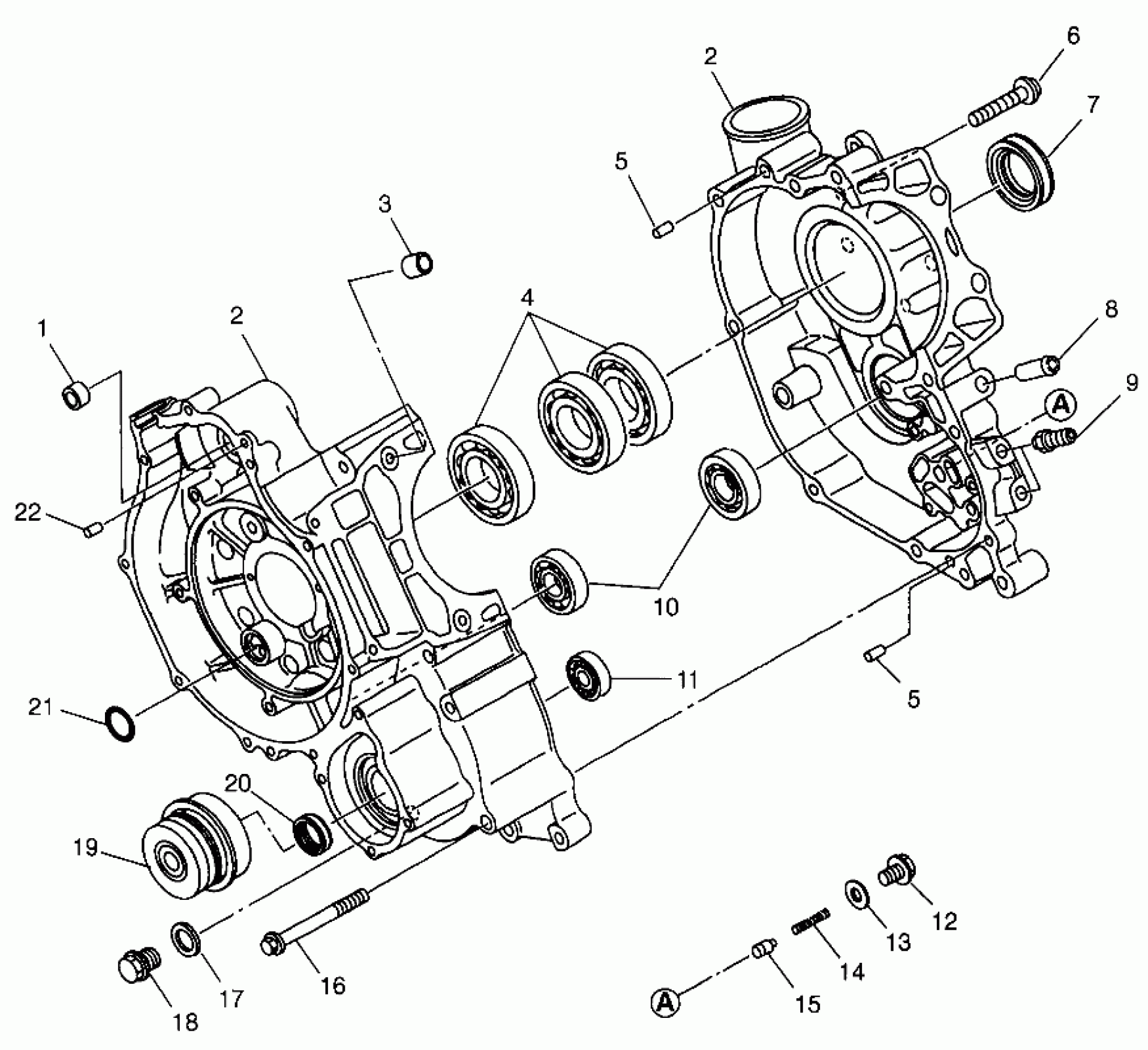

Polaris SCRAMBLER 500 - W97BC50A CRANKCASE Scrambler 500 W97BC50A (4943074307D003) Diagram

#

Description
Price

1

BUSHING, STARTER

3083669

Unavailable

2

CRANKCASE Substituted by 3085633 (Incl. 1, 4, 5, 7, 10, 11, 16, 19, 20, 22)

3085524

Unavailable

2

CRANKCASE Substituted by 3085633 (Incl. 1, 4, 5, 7, 10, 11, 16, 19, 20, 22)

3085524

Unavailable

3

PIN,STRAIGHT

3084838

Unavailable

4

BEARING, BALL

3080676

$39.99

5

Pin, Dowel

3084840

Unavailable

5

Pin, Dowel

3084840

Unavailable

6

SCREW & WASHER(10)

3084205

$3.99

7

SEAL, OIL

3084839

$27.99

8

PIPE,AIR BREATHER

3085525

Unavailable

9

Union

3084842

Unavailable

10

BEARING,BALL

3084834

$23.99

11

BEARING,BALL

3084835

Unavailable

12

PLUG

3084845

Unavailable

13

GASKET,(ALUM.)(10)

3084846

$5.59

14

SPRING

3084844

$3.99

15

VALVE Substituted by 3086810

3084843

Unavailable

16

BOLT,FLANGE

3084841

Unavailable

17

GASKET

3082956

$4.84

18

PLUG Substituted by 3086749

3083453

Unavailable

19

SEAL,MECHANICAL

3084837

$68.79

20

SEAL, OIL

3084836

Unavailable

21

O-RING

3084847

$6.39

22

PIN, DOWEL Substituted by 3086838

3080103

$7.14
