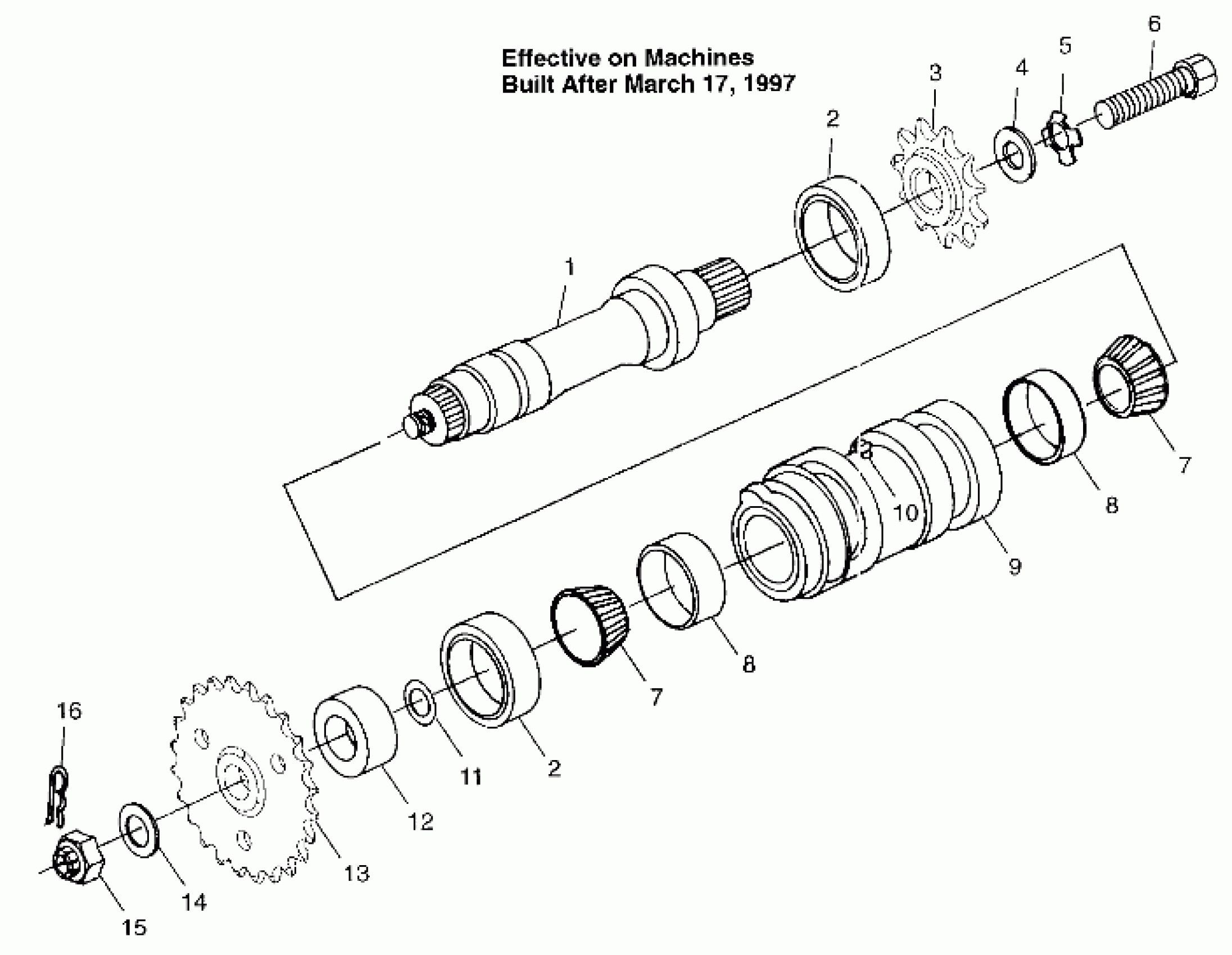

Polaris SCRAMBLER 500 - W97BC50A CENTER TIGHTENER (After 3/17/97) Scrambler 500 W97BC50A (4943074307B14A) Diagram

#

Description
Price

-

TIGHT.ASM,CTR,TPR.BRGS. Substituted by 1380130 (Incl. 10-16)

1380122

Unavailable

1

SHAFT,CTR.TIGHT,LONG

5020934

$74.60

2

SEAL, TIGHTENER

3610017

$32.37

2

SEAL, TIGHTENER

3610017

$32.37

3

SPKT, 11T

3221043

$40.46

4

WASHER, FLAT(10)

7555815

$3.97

5

WASHER-LOCK(10)

7571611

Unavailable

6

SCREW(10)

7512492

$1.19

7

BRG,TAPER.ROLL.CONE

3554506

$31.75

7

BRG,TAPER.ROLL.CONE

3554506

$31.75

8

BRG,TAPER,ROLL CUP

3554507

$31.75

8

BRG,TAPER,ROLL CUP

3554507

$31.75

9

ECC.ASM,CTR,W/BRNG CUP (Incl. 8, 10)

1380136

Unavailable

10

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

11

O RING

5410463

Unavailable

12

SPACER,CTR.TIGHT.LONG,TPR

5010450

Unavailable

13

SPROCKET, 22T Substituted by 3222042

3222044

Unavailable

14

WASHER, THRUST(10)

7555788

Unavailable

15

NUT, SLOTTED(10)

7542810

$3.17

16

COTTER PIN(10)

7661401

$0.79
