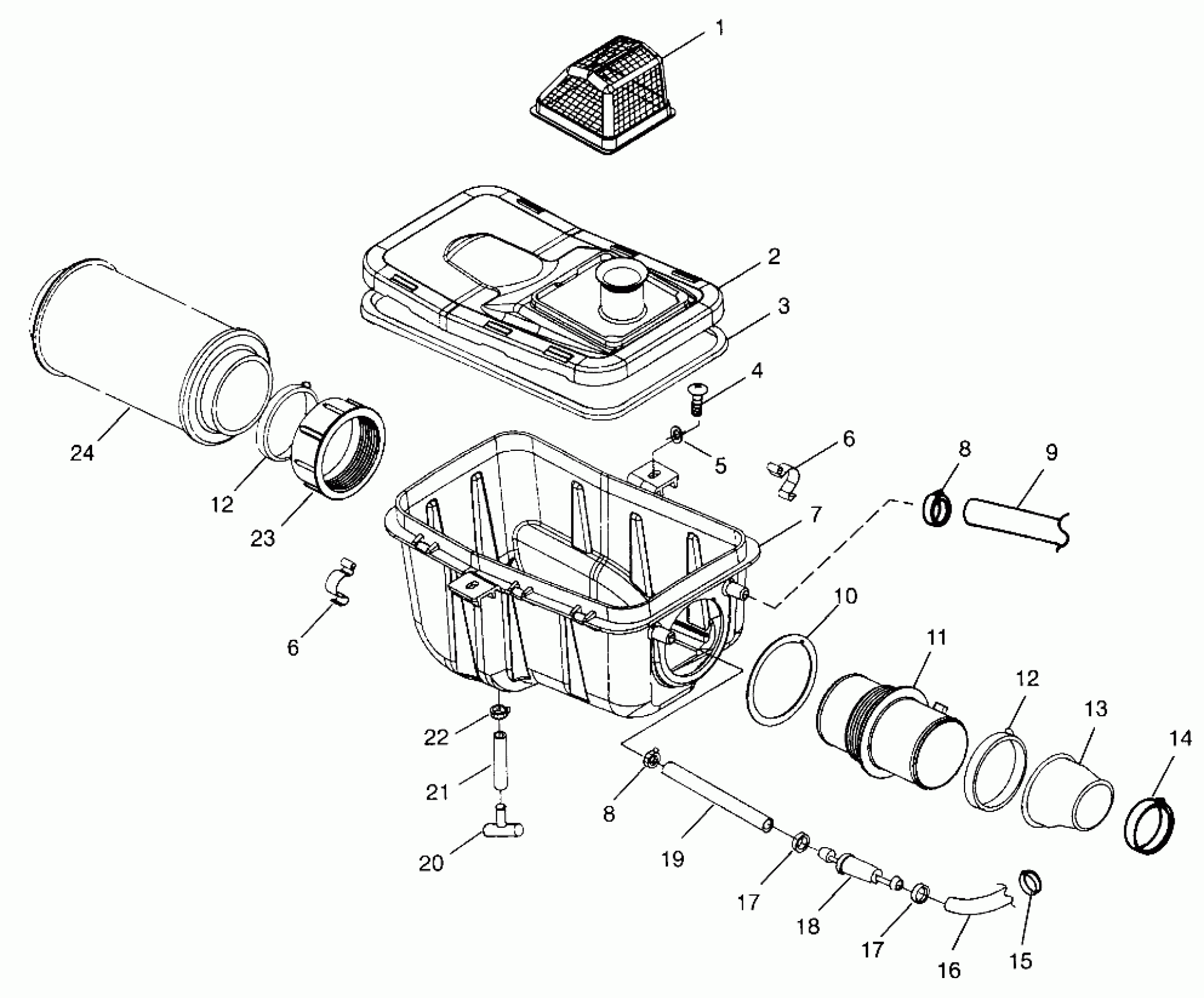

Polaris SCRAMBLER 500 - W97BC50A AIR BOX Scrambler 500 W97BC50A (4943074307B008) Diagram

#

Description
Price

1

FILTER,PRECLEANER

5432604

Unavailable

2

COVER,AIR BOX

5432603

Unavailable

3

SEAL,AIRBOX COVER

5811482

$28.32

4

SCREW(10)

7515180

Unavailable

5

WASHER(10)

7558301

$1.19

6

CLIP-AIR BOX

5242044

$9.52

6

CLIP-AIR BOX

5242044

$9.52

7

BOX,AIR INTAKE

5432602

$125.46

8

CLAMP,HOSE,.88,WORM DRIVE

7080702

$3.02

8

CLAMP,HOSE,.88,WORM DRIVE

7080702

$3.02

9

Tube, Breather, Oil Tank (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

10

GASKET,CARB.IN.DUCT

5830128

Unavailable

11

DUCT,CARB INLET

5432599

Unavailable

12

CLAMP,BAND,NARROW

7080413

$3.17

12

CLAMP,BAND,NARROW

7080413

$3.17

13

BOOT,CARB.

5411275

Unavailable

14

CLAMP, NARROW BAND(10)

7080511

$4.76

15

CLAMP,HOSE,SPRING

7080694

$6.64

16

HOSE,BREATHER,61CM

5411361

Unavailable

17

CLAMP,HOSE

7080699

$1.59

17

CLAMP,HOSE

7080699

$1.59

18

FILTER,BREATHER,IN LINE

2530029

$6.35

19

LINE,BREATHER,3/8 ID.

8450073-600

Unavailable

20

Plug, Trap

5432377

Unavailable

21

FUEL LINE

8450059-150

Unavailable

22

CLAMP,HOSE,(10)

7080650

$3.97

23

COLLAR,CARB INLET

5432601

$12.94

24

FILTER,AIR INTAKE

7080595

$27.78
