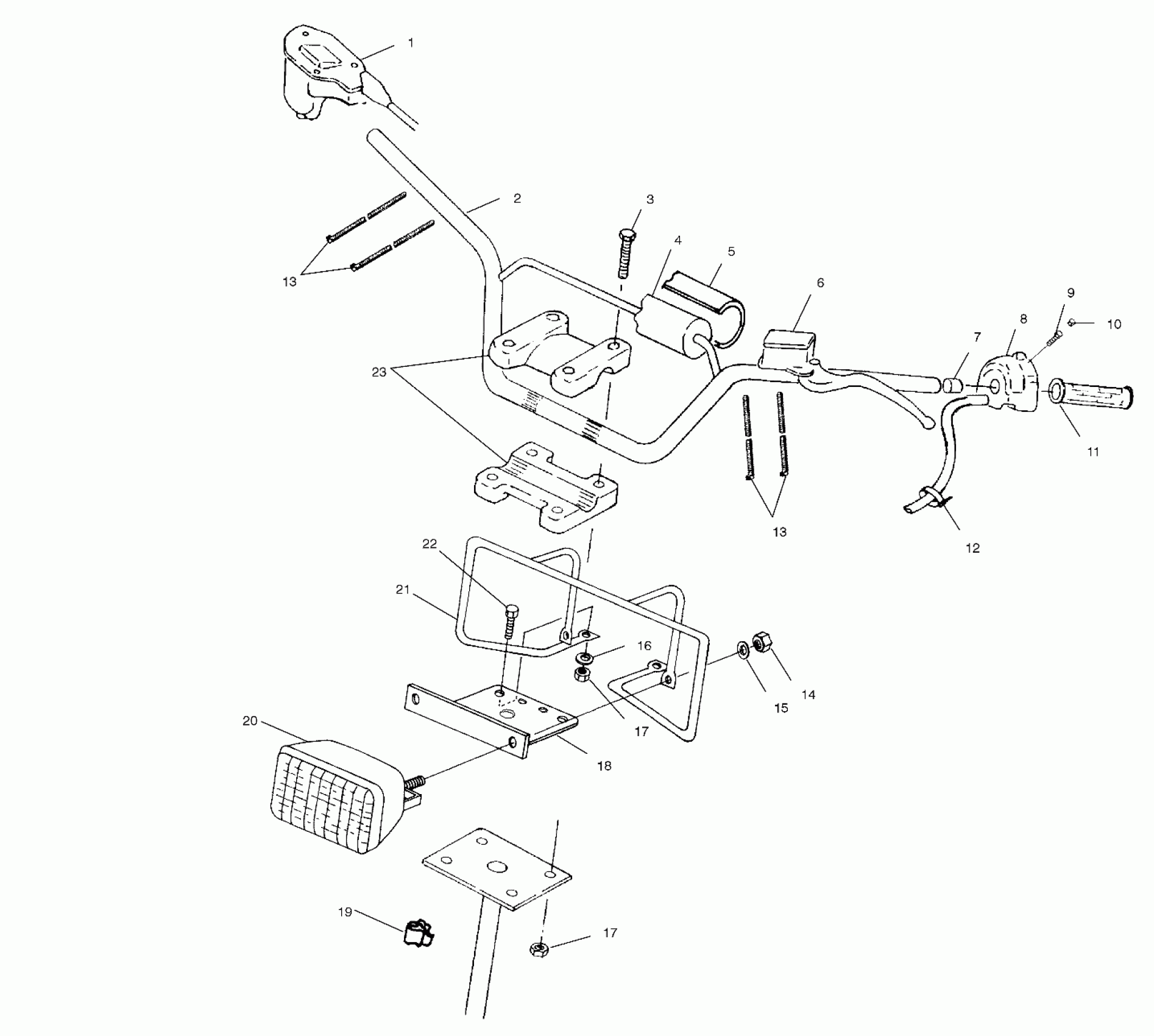

Polaris SCRAMBLER 500 - A99BG50AA HANDLEBAR/HEADLIGHT - A99BG50AA (4949714971b009) Diagram

#

Description
Price

-

KIT,H'BAR BLOCK (Incl. 3,17,23)

2200774

Unavailable

1

Asm., Throttle Control (See Footnote) (See Controls-Throttle Asm./Cable Pg. B11, Ref. 5)

-------

Unavailable

2

HANDLE BAR,BLK

1820594-067

Unavailable

3

SCREW(10)

7515189

Unavailable

4

Pad, Handlebar

5521181

Unavailable

5

COVER PAD,HANDLEBAR

2682454

$39.67

6

Asm., Master Cylinder (See Footnote) (See Controls-Master Cylinder/Brake Line Pg. B12, Ref. 1)

-------

Unavailable

7

SPACER,SWITCH,LH

5432926

$2.63

8

SWITCH-HANDLEBAR,H/L/O,REV/OR

4010262

$203.99

9

SCREW,SET

7517625

$4.79

10

PLUG,HOLE(10)

5432952

$5.59

11

GRIP, HANDLEBAR

5431030

$24.27

12

CLAMP, POLY

7080303

Unavailable

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

16

WASHER(10)

7558301

$1.49

17

NUT-LOCK(10)

7542122

$1.49

17

NUT-LOCK(10)

7542122

$1.49

18

BRKT,H/L,BLK

5241973-067

Unavailable

19

CLIP,CABLE RETAIN,(10)

7080631

$6.29

20

BULB,H/L,30/30 W.

4030061

Unavailable

20

H/L ASM,35/35W,BOTT.MT.

2431016

Unavailable

21

GUARD,H/L,BLK.

1040579-067

Unavailable

22

BOLT(10) Substituted by 7512240

7512111

Unavailable

23

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable
