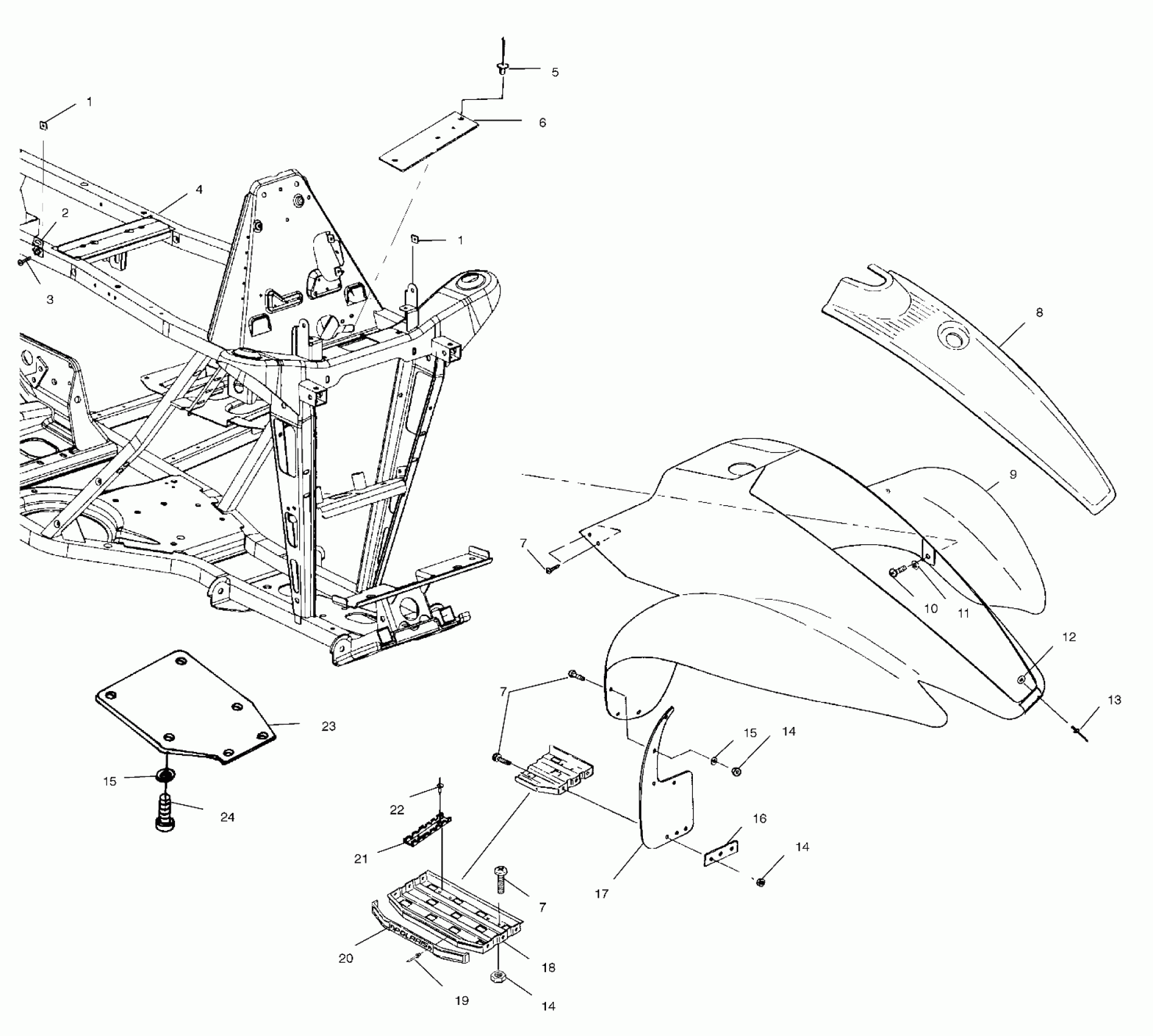

Polaris SCRAMBLER 500 - A99BG50AA FRONT CAB - A99BG50AA (4949714971a005) Diagram

#

Description
Price

1

NUT, SPEED(10)

7670060

$3.99

1

NUT, SPEED(10)

7670060

$3.99

2

BRKT,CAB MOUNT,GEN III,BLK.

5224718-067

$4.95

3

SCREW,(10)

7517386

$1.49

4

MAINFRAME,SCR 500,BLK.

1012845-067

$695.22

5

RIVET,3/16X.402(50)

7621432

$1.49

6

STRAP,MTG,FUELPUMP

5211547-067

$2.02

7

BOLT, BLACK(10)

7512282

$1.49

7

BOLT, BLACK(10)

7512282

$1.49

7

BOLT, BLACK(10)

7512282

$1.49

8

COVER-FRONT,SCR 500,BLAZINGRED

5432553-288

Unavailable

9

CAB,FRONT,SVC,BLAZING RED Substituted by 2632424-288 (w/Warning Decals)

2631988-288

Unavailable

10

SCREW(10)

7522026

$4.79

11

WASHER(10)

7558301

$1.49

12

WASHER, FLAT(10)

7558201

$5.79

13

RIVET [No Longer Available]

7621471

Unavailable

14

NUT-LOCK(10)

7542122

$1.49

14

NUT-LOCK(10)

7542122

$1.49

14

NUT-LOCK(10)

7542122

$1.49

15

WASHER, FLAT(10)

7555859

$1.49

15

WASHER, FLAT(10)

7555859

$1.49

16

BRKT, LH MUD FLAP (3 Hole)

5211131-067

Unavailable

17

MUDFLAP,RH,FR.HYBRID

5850150

Unavailable

17

MUDFLAP-FRONT,HYBRID,LH

5811831

Unavailable

18

FOOTPAD,LH,ALUM,HYBRID,BLK.

1040691-067

$70.39

19

RIVET,(50)

7661825

$1.49

20

Trim, Footrest

5431484

Unavailable

21

BRKT,HEEL CLEAT,BLK

5242525-067

$16.47

22

RIVET(50)

7621472

$1.49

23

GUARD,ROCK

5432763

$87.99

24

SCREW(10)

7515179

$2.39
