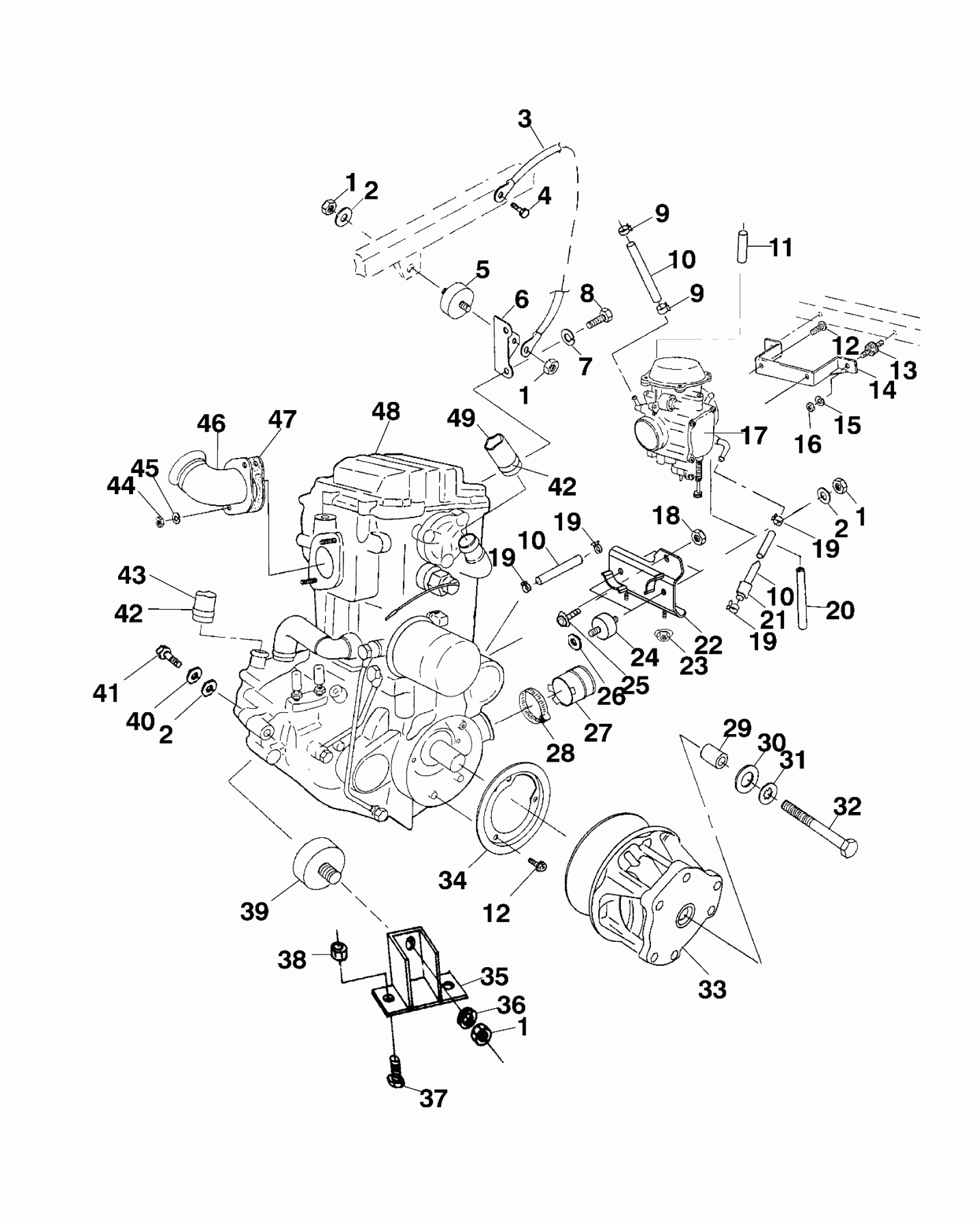

Polaris SCRAMBLER 500 - A99BG50AA ENGINE MOUNTING - A99BG50AA (4949714971a011) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

Unavailable

1

NUT LOCK(10)

7542403

Unavailable

1

NUT LOCK(10)

7542403

Unavailable

1

NUT LOCK(10)

7542403

Unavailable

2

WASHER(10)

7555801

$3.97

2

WASHER(10)

7555801

$3.97

2

WASHER(10)

7555801

$3.97

3

CABLE,GND-ENGINE

4010132

Unavailable

4

BOLT(10)

7512232

$1.19

5

MOUNT,RUBBER,TOP

3110044

$44.51

6

BRKT,ENG.MT,TOP,BLK

5242674-067

Unavailable

7

LOCK WASHER(10)

7552901

$1.19

8

BOLT(10)

7512315

$4.76

9

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

9

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

10

FOIL-TAPE,AIR BOX

5811373

$2.46

10

DESC NOT_AVAILABLE

8450083-60

Unavailable

10

FOIL-TAPE,AIR BOX

5811373

$2.46

10

DESC NOT_AVAILABLE

8450083-60

Unavailable

10

FOIL-TAPE,AIR BOX

5811373

$2.46

10

DESC NOT_AVAILABLE

8450083-60

Unavailable

11

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

12

SCREW & WASHER(10)

3084205

$3.97

12

SCREW & WASHER(10)

3084205

$3.97

13

Mount, Rubber

3110032

Unavailable

14

BRKT,CARB.MOUNT,BLK.

5242258-067

Unavailable

15

WASHER(10)

7552605

$5.69

16

NUT HEX(10)

7542105

$3.97

17

Asm., Carburetor (See Footnote) (See Carburetor Pg. D8, Ref. 18)

----

Unavailable

18

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

19

HOSE CLAMP, RED

7080003

$1.19

19

HOSE CLAMP, RED

7080003

$1.19

19

HOSE CLAMP, RED

7080003

$1.19

19

HOSE CLAMP, RED

7080003

$1.19

20

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

21

SHEATH/FOIL,LAM,58CM. Substituted by 8450080-65

8450080-58

$64.75

22

MOUNT,ENGINE,REAR,500,BLK

1012883-067

$19.68

23

NUT-3/8-16 FLG LOCK-Y

7547089

$4.76

24

MOUNT,RUBBER,FRONT

3110046

Unavailable

25

SCREW ,(10)

7517289

$3.29

26

WASHER, FLAT(10)

7555815

$3.97

27

BOOT,CLUTCH INTAKE

5410421

$11.32

28

CLAMP, NARROW BAND(10)

7080511

$4.76

29

BUSHING-.437 X.770 X.50

5430261

$7.14

30

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

31

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

32

BOLT(10)

7512566

$33.24

33

Asm., Drive Clutch, ATV-06 (See Footnote) (See Drive Clutch Pg. B13, Ref. 14)

----

Unavailable

34

Bracket, Retainer, Seal (See Footnote) (See Clutch Cover Pg. C7, Ref. 21)

----

Unavailable

35

MOUNT,FR.ENGINE,BLK.

1040688-067

$14.68

36

WASHER(10)

7555806

$0.79

37

SCREW(10)

7515398

$2.38

38

NUT-5/16-18 NYLOK-Y

7542324

$0.79

39

MOUNT,MOTOR

3110067

Unavailable

40

WASHER(10)

7552603

$0.79

41

BOLT(10)

7515438

$4.76

42

CLAMP,HOSE,1.25,WORM DRIVE

7080696

$5.56

42

CLAMP,HOSE,1.25,WORM DRIVE

7080696

$5.56

43

Hose, Engine, Lower (See Footnote) (See CoolingSystem Pg. A9, Ref. 8)

----

Unavailable

44

NUT (See Cylinder Pg. D2, Ref. 23)

----

Unavailable

45

WASHER, LOCK (See Cylinder Pg. D2, Ref. 22)

----

Unavailable

46

MANIFOLD,BLK

1260872-029

Unavailable

47

GASKET, EXHAUST (See Cylinder Pg. D2, Ref. 20)

----

Unavailable

48

ENG.EH50PLE-04 (See Footnote) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required for

3085822

Unavailable

49

Hose, Engine, Upper (See Footnote) (See Cooling System Pg. A9, Ref. 9)

----

Unavailable
