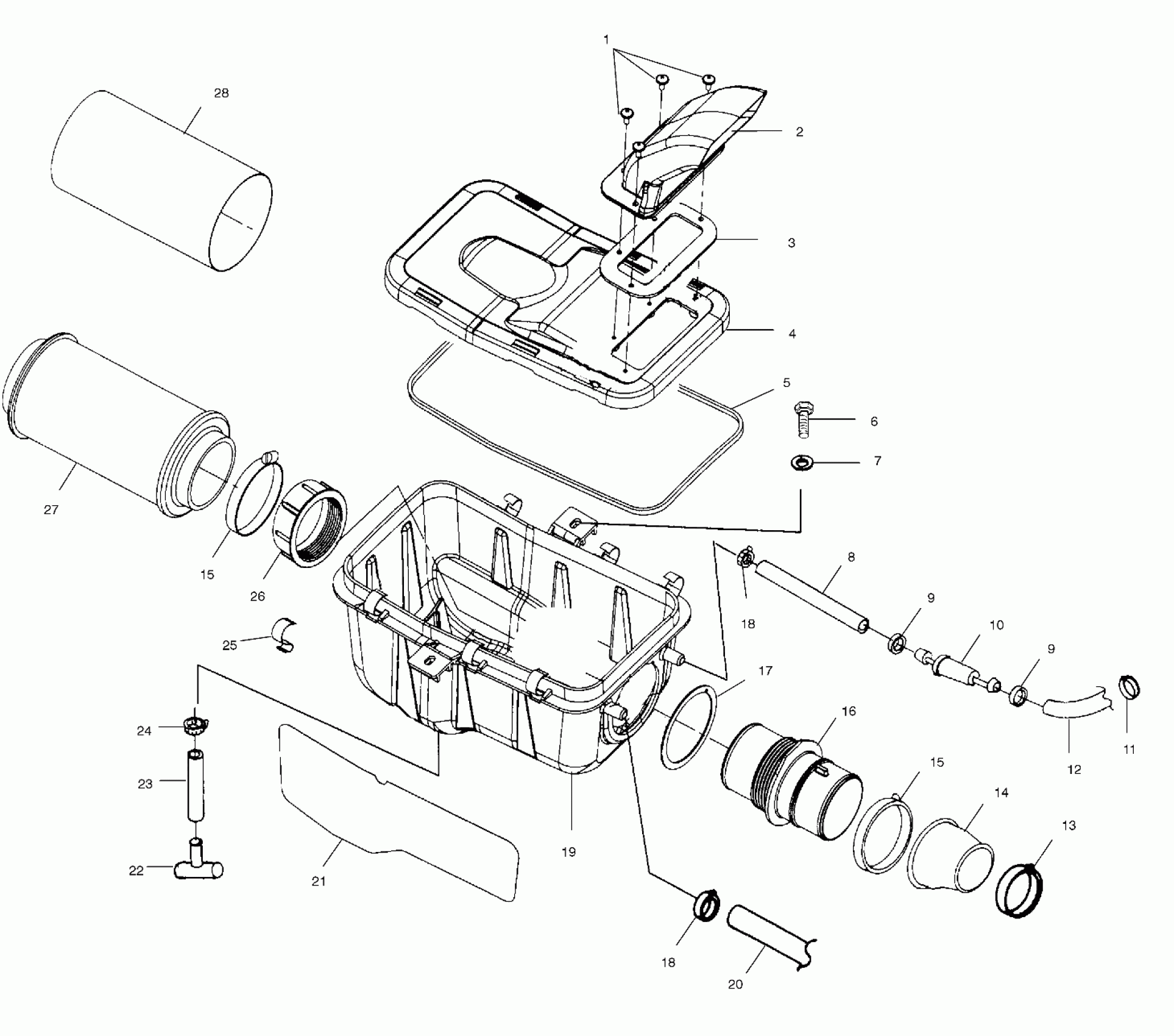

Polaris SCRAMBLER 500 - A99BG50AA AIR BOX - A99BG50AA (4949714971c006) Diagram

#

Description
Price

1

SCREW,SEMS(10)

7517541

$4.79

2

DUCT,INLET,AIRBOX COVER

5432859

Unavailable

3

GASKET,INTAKE

5411422

$6.63

4

COVER,AIRBOX

5432868

$51.99

5

SEAL,AIRBOX COVER

5811482

Unavailable

6

SCREW(10)

7515180

Unavailable

7

WASHER(10)

7558301

$1.49

8

LINE,BREATHER,3/8 ID.

8450073-600

Unavailable

9

CLAMP,HOSE(10)

7080544

Unavailable

9

CLAMP,HOSE(10)

7080544

Unavailable

10

FILTER,BREATHER,IN LINE

2530029

$6.39

11

CLAMP,HOSE,SPRING

7080694

$6.53

12

HOSE,BREATHER,.38IDX18

5411509

Unavailable

13

CLAMP, NARROW BAND(10)

7080511

$4.79

14

BOOT,CARB,500 HYBRID

5411414

Unavailable

15

CLAMP,BAND,NARROW

7080413

$3.19

15

CLAMP,BAND,NARROW

7080413

$3.19

16

DUCT,CARB.INLET

5432473

Unavailable

17

GASKET,CARB.IN.DUCT

5830128

Unavailable

18

CLAMP,HOSE

7080699

$1.59

18

CLAMP,HOSE

7080699

$1.59

19

BOX,AIR INT,4-STROKE

5432774

$117.37

20

Line, Breather, Oil Tank (See Oil Tank Pg. A13, Ref. 5)

-------

Unavailable

21

FOIL,AIRBOX

5811650

Unavailable

22

Plug, Trap

5432377

Unavailable

23

FUEL LINE

8450059-150

Unavailable

24

CLAMP,HOSE,(10)

7080650

$3.99

25

CLIP,AIRBOX,LOWPROFILE

5243694

Unavailable

26

COLLAR,CARB INLET

5432601

$12.79

27

FILTER,AIR INTAKE

7080595

Unavailable

28

FILTER,PRECLEAN.SLEEVE

5811633

$11.99
