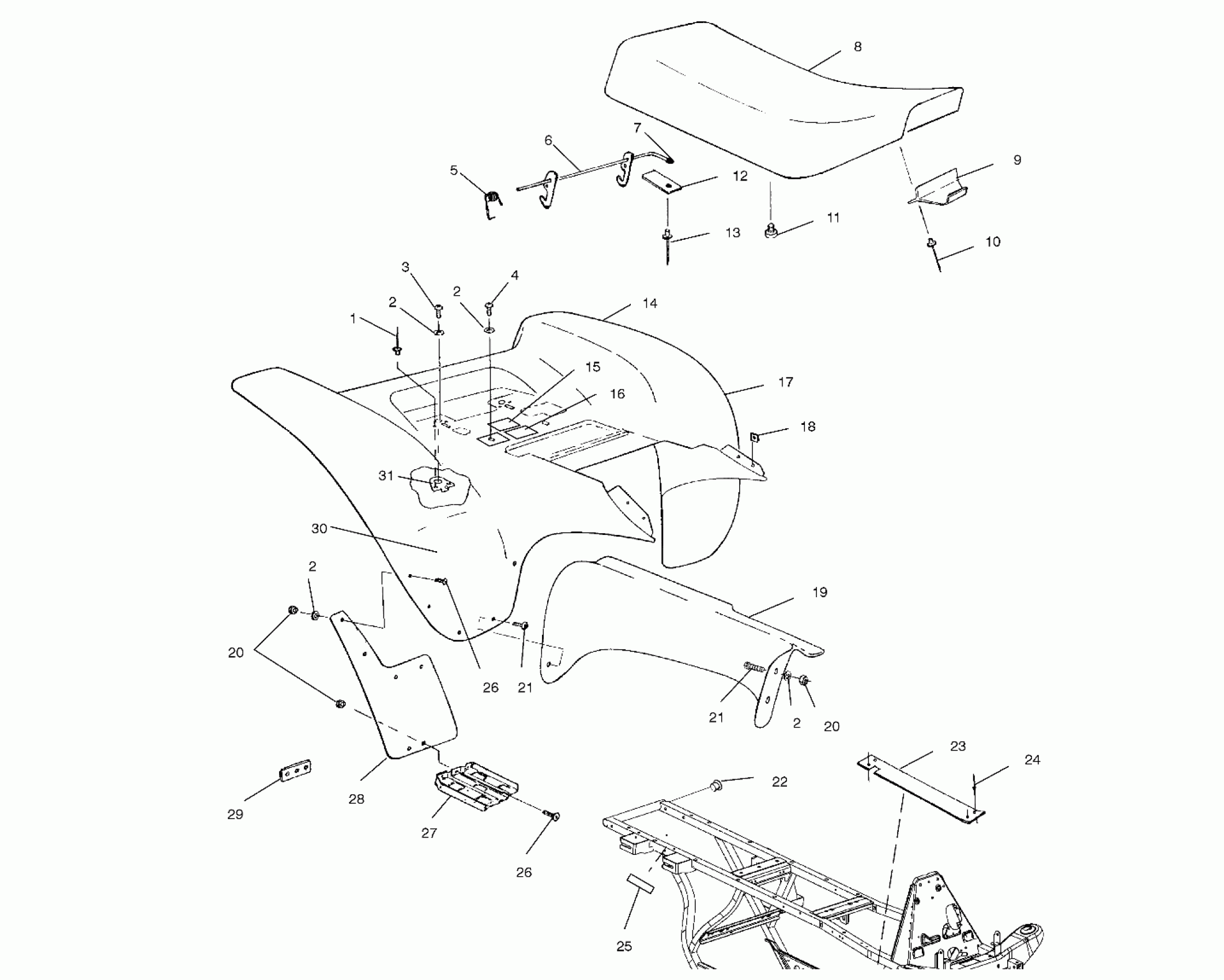

Polaris SCRAMBLER 500 - A00BG50AA REAR CAB - A00BG50AA (4954855485A006) Diagram

#

Description
Price

1

RIVET(50)

7621472

$1.49

2

WASHER, FLAT(10)

7555859

$1.19

2

WASHER, FLAT(10)

7555859

$1.19

2

WASHER, FLAT(10)

7555859

$1.19

2

WASHER, FLAT(10)

7555859

$1.19

3

BOLT(10)

7512232

$1.19

4

SCREW(10)

7512242

$2.38

5

SPRING,LATCH,LIGHT

7041607

Unavailable

6

LATCH, SEATBACK

1040412

Unavailable

7

CAP,SEATLATCH,GEN 3

5411392

Unavailable

8

COVER,SEAT,BLK.

2681769-070

Unavailable

8

SEAT,BLK,W/WHITE POLARIS

2682453-070

Unavailable

9

TONGUE,SEAT

5431986

$10.51

10

RIVET(50)

7621479

$1.98

11

Bumper, Rubber

5410414

$3.17

12

BRACKET,LEVER RETAINER

5211033

$34.99

13

BLIND RIVET(50)

7621403

$1.19

14

Foil, Rear Cab, Small

5810991

Unavailable

15

DECAL,CARB.INFO.

7073761

Unavailable

16

DECAL,FILT.ELEMENT,4-S

7077446

Unavailable

17

CAB-REAR,GEN III,BLAZING RED Substituted by 5434014-288

5432820-288

Unavailable

18

NUT, SPEED(10)

7670057

$1.19

19

SHIELD,ASM.MUFF,GEN 3

2632275

Unavailable

20

NUT-LOCK(10)

7542122

$1.19

20

NUT-LOCK(10)

7542122

$1.19

21

Screw

7517264

$3.97

21

Screw

7517264

$3.97

22

PLUG,ENDCAP,RIBBED

5432831

$5.65

23

GUARD-CLUTCH, BLK

5241403-067

$5.71

24

RIVET,INTERLOCK,B(50)

7661638

$1.19

25

REFLECTOR ASM,RED

2670133

$5.71

26

BOLT, BLACK(10)

7512282

Unavailable

26

BOLT, BLACK(10)

7512282

Unavailable

27

Footpad (See Front Cab Pg. A5, Ref. 18)

----

Unavailable

28

MUDFLAP,LH,R.HYBRID Substituted by 5812134

5850147

Unavailable

28

MUDFLAP,RH,R.HYBRID

5850148

Unavailable

29

BRKT, LH MUD FLAP

5211131-067

Unavailable

30

Foil, Rear Cab

5810957

Unavailable

31

BRKT,R.HOLDDOWN

5220880

Unavailable
