GEARCASE,HR,CDS,SCR 500 (Incl. 1-57) (Units built after April 23, 1999)

1341328

$1,814.99

1

GEARCASE-LH

3233632

$354.99

2

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

2

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

3

SHAFT,REVERSE,31T

3233728

$115.08

4

BEARING,NDL,SPLIT CAGE

3233718

$35.71

4

BEARING,NDL,SPLIT CAGE

3233718

$35.71

5

SPROCKET,24T

3233719

$109.27

6

RING,RET-RING,EXTERNAL

3233720

$9.52

6

RING,RET-RING,EXTERNAL

3233720

$9.52

7

DOG,ENGAGEMENT,HIGH/REV

3233721

Unavailable

8

FORK,SHIFT,HIGH/REV

3233633

$141.65

9

GEAR,30T

3233722

Unavailable

10

Washer

3233176

$9.52

11

RING,RETAINING

3233177

$6.46

12

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

12

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

13

SCREW Substituted by 3233747

3233033

Unavailable

13

SCREW Substituted by 3233747

3233033

Unavailable

14

BRACKET,INTERLOCK

3233309

$20.48

15

SPRING,SHIFT.INTERLOCK

3233550

Unavailable

16

PIN,INTERLOCK

3233308

Unavailable

17

SHAFT,SHIFT,HI/REV.

3233559

Unavailable

18

Washer

3233040

$9.52

19

Bellcrank

3233547

$56.99

20

Nut

3233055

$3.32

21

Washer

3233054

$6.46

22

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

23

O-Ring

3233548

$33.24

24

SCREW Substituted by 3233749

3233691

$5.65

25

SWITCH-H/R,ITW

3233635

$174.99

26

PLUG,OIL FILL

3233711

Unavailable

27

Washer

3233324

$8.54

28

COVER,SNORKEL

3233556

$31.11

29

Screw

3233539

Unavailable

29

Screw

3233539

Unavailable

30

Seal

3233248

$32.37

30

Seal

3233248

$32.37

30

Seal

3233248

$32.37

31

O-Ring

3233555

$6.06

32

BEARING

3233020

$47.62

32

BEARING

3233020

$47.62

32

BEARING

3233020

$47.62

32

BEARING

3233020

$47.62

33

SHIM

3233554

Unavailable

34

SNORKEL,SUBASM,SHAFT

3233723

Unavailable

35

BUSHING-GARLOCK

3233552

$23.81

36

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

36

Vent

3233037

Unavailable

37

DECAL-SWITCH

3233636

Unavailable

38

GEARCASE,RH,H/R

3233798

$499.99

39

CHAIN,ROLLER

3233546

$68.79

40

SPROCKET,16/26T

3233545

$55.56

41

SHAFT,OUTPUT

3233544

$174.99

42

GEAR,98T,HCR.

3233558

$211.90

43

RING,RETAINING

3233537

$6.99

44

SPROCKET,14/22T

3233538

Unavailable

45

COVER,CTR.DRIVE BRG.

3233263

Unavailable

46

RING,RETAINING

3233306

$4.76

47

SHAFT,PINION,13T

3233540

$158.73

48

BUSHING,GARLOCK

3233541

$23.81

49

WASHER,THRUST

3233542

$11.32

50

DEFLECTOR,OIL

3233043

$13.10

51

CHAIN,SILENT,34P

3233036

Unavailable

52

SHAFT,INPUT,HI/REV.HCR.EXT.

3233536

$220.49

53

PIPE,KNOCK

3233529

$10.99

54

Screw

3233252

$5.69

55

BUSHING,PIVOT

3233527

$39.99

56

Plug

3233448

$23.81

57

Washer

3233035

Unavailable

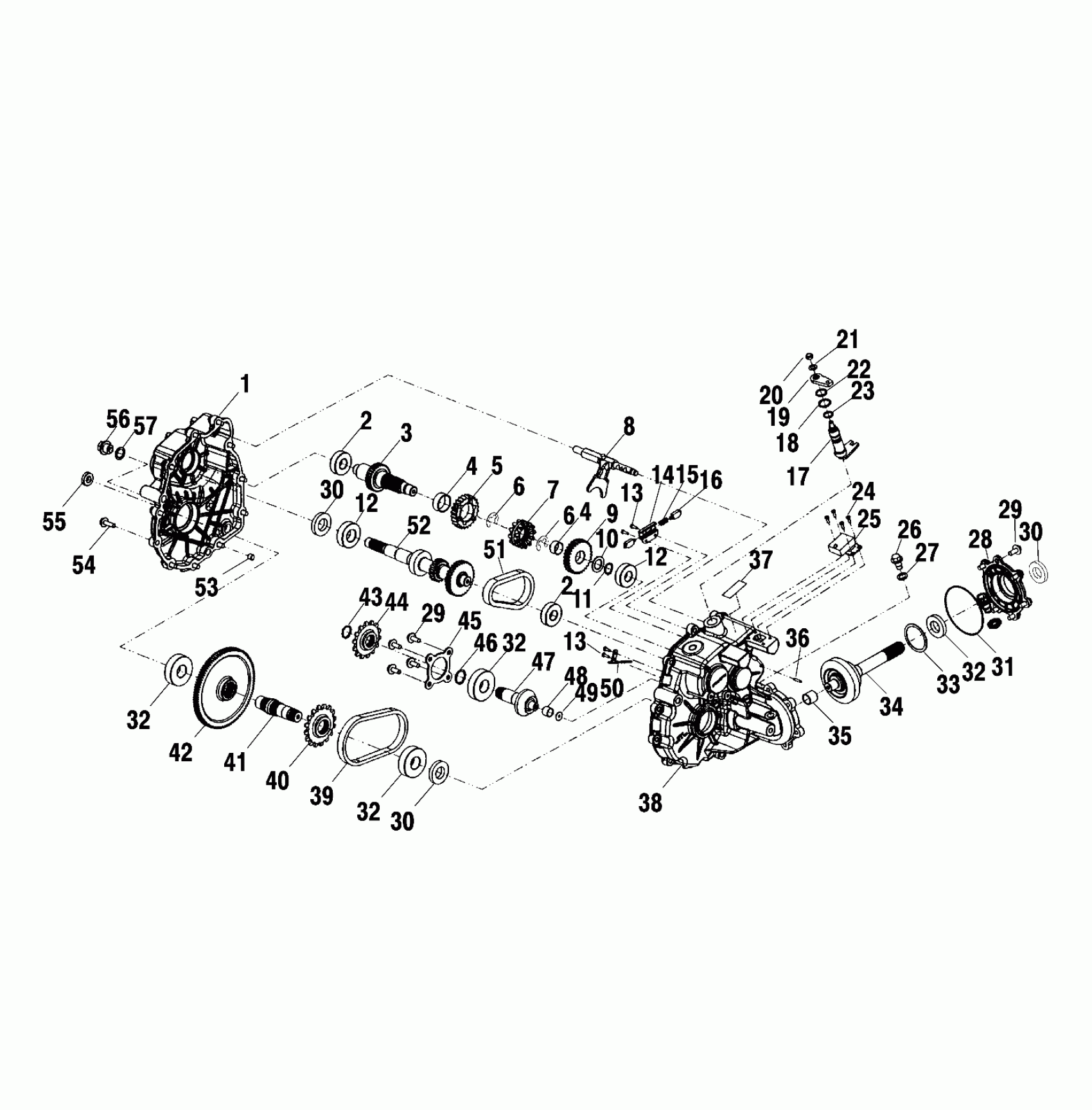

Polaris SCRAMBLER 500 - A00BG50AA GEARCASE - A00BG50AA (4954855485C013) Diagram

GEARCASE,HR,CDS,SCR 500 (Incl. 1-57) (Units built after April 23, 1999)

GEARCASE-LH

BEARING-BALL,6307 C3,35X80X21

BEARING-BALL,6307 C3,35X80X21

SHAFT,REVERSE,31T

BEARING,NDL,SPLIT CAGE

BEARING,NDL,SPLIT CAGE

SPROCKET,24T

RING,RET-RING,EXTERNAL

RING,RET-RING,EXTERNAL

DOG,ENGAGEMENT,HIGH/REV

FORK,SHIFT,HIGH/REV

GEAR,30T

Washer

RING,RETAINING

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

SCREW Substituted by 3233747

SCREW Substituted by 3233747

BRACKET,INTERLOCK

SPRING,SHIFT.INTERLOCK

PIN,INTERLOCK

SHAFT,SHIFT,HI/REV.

Washer

Bellcrank

Nut

Washer

RING,RETAINING BASIC,EXTERNAL 0.75

O-Ring

SCREW Substituted by 3233749

SWITCH-H/R,ITW

PLUG,OIL FILL

Washer

COVER,SNORKEL

Screw

Screw

Seal

Seal

Seal

O-Ring

BEARING

BEARING

BEARING

BEARING

SHIM

SNORKEL,SUBASM,SHAFT

BUSHING-GARLOCK

FUEL LINE,1/8 ID,600 CM.

Vent

DECAL-SWITCH

GEARCASE,RH,H/R

CHAIN,ROLLER

SPROCKET,16/26T

SHAFT,OUTPUT

GEAR,98T,HCR.

RING,RETAINING

SPROCKET,14/22T

COVER,CTR.DRIVE BRG.

RING,RETAINING

SHAFT,PINION,13T

BUSHING,GARLOCK

WASHER,THRUST

DEFLECTOR,OIL

CHAIN,SILENT,34P

SHAFT,INPUT,HI/REV.HCR.EXT.

PIPE,KNOCK

Screw

BUSHING,PIVOT

Plug

Washer
