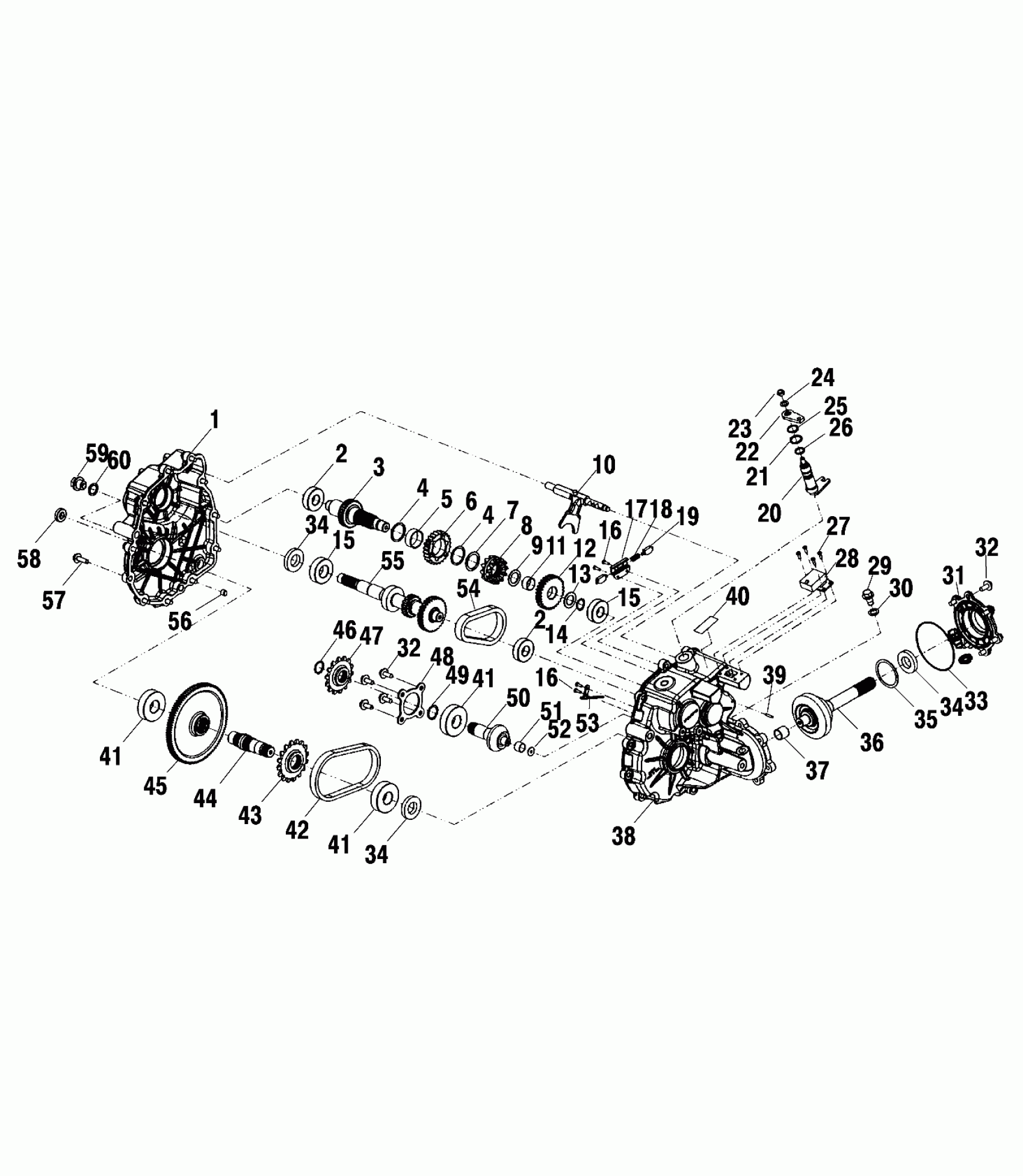

Polaris SCRAMBLER 500 - A00BG50AA GEARCASE - A00BG50AA (4954855485C011) Diagram

#

Description
Price

-

GEARCASE,H/R,HYBRID,3.06 Substituted by 1341328 (Incl. 1-59)(Units built before April 23, 1999)

1341284

$1,814.99

1

GEARCASE-LH

3233632

$354.99

2

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

2

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

3

SHAFT,REVERSE 31T

3233557

Unavailable

4

WASHER

3233012

Unavailable

4

WASHER

3233012

Unavailable

5

BEARING, NEEDLE

3233014

$43.65

6

SPROCKET,24T,12-POINT

3233532

Unavailable

7

RING,RETAINING

3233029

Unavailable

8

DOG,ENGAGE,12PT,HI/REV

3233533

Unavailable

9

Washer

3233010

Unavailable

10

FORK,SHIFT,HIGH/REV

3233633

$141.65

11

BUSHING,GARLOCK

3233534

Unavailable

12

GEAR,30T,12-POINT

3233535

Unavailable

13

Washer

3233176

$9.52

14

RING,RETAINING

3233177

$6.46

15

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

15

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

16

SCREW Substituted by 3233747

3233033

Unavailable

16

SCREW Substituted by 3233747

3233033

Unavailable

17

BRACKET,INTERLOCK

3233309

$20.48

18

SPRING,SHIFT.INTERLOCK

3233550

Unavailable

19

PIN,INTERLOCK

3233308

Unavailable

20

SHAFT,SHIFT,HI/REV.

3233559

Unavailable

21

Washer

3233040

$9.52

22

Bellcrank

3233547

$56.99

23

Nut

3233055

$3.32

24

Washer

3233054

$6.46

25

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

26

O-Ring

3233548

$33.24

27

SCREW,TAP

3233616

$5.65

28

SWITCH-H/R,ITW

3233635

$174.99

29

DIPSTICK,(PLUG) Substituted by 3233711

3233325

Unavailable

30

Washer

3233324

$8.54

31

COVER,SNORKEL

3233556

$31.11

32

Screw

3233539

Unavailable

32

Screw

3233539

Unavailable

33

O-Ring

3233555

$6.06

34

Seal

3233248

$32.37

34

Seal

3233248

$32.37

34

Seal

3233248

$32.37

35

SHIM

3233554

$39.99

36

GEAR,SNORKEL

3233553

Unavailable

37

BUSHING-GARLOCK

3233552

$23.81

38

GEARCASE-RH Substituted by 3233752

3233634

$499.99

39

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

39

Vent

3233037

Unavailable

40

DECAL-SWITCH

3233636

Unavailable

41

BEARING

3233020

$47.62

41

BEARING

3233020

$47.62

41

BEARING

3233020

$47.62

42

CHAIN,ROLLER

3233546

$68.79

43

SPROCKET,16/26T

3233545

$55.56

44

SHAFT,OUTPUT

3233544

$174.99

45

GEAR,98T,HCR.

3233558

$211.90

46

RING,RETAINING

3233537

$6.99

47

SPROCKET,14/22T

3233538

Unavailable

48

COVER,CTR.DRIVE BRG.

3233263

Unavailable

49

RING,RETAINING

3233306

$4.76

50

SHAFT,PINION,13T

3233540

$158.73

51

BUSHING,GARLOCK

3233541

$23.81

52

WASHER,THRUST

3233542

$11.32

53

DEFLECTOR,OIL

3233043

$13.10

54

CHAIN,SILENT,34P

3233036

Unavailable

55

SHAFT,INPUT,HI/REV.HCR.EXT.

3233536

$220.49

56

PIPE,KNOCK

3233529

$10.99

57

Screw

3233252

$5.69

58

BUSHING,PIVOT

3233527

$39.99

59

Plug

3233448

$23.81

60

Washer

3233035

Unavailable
