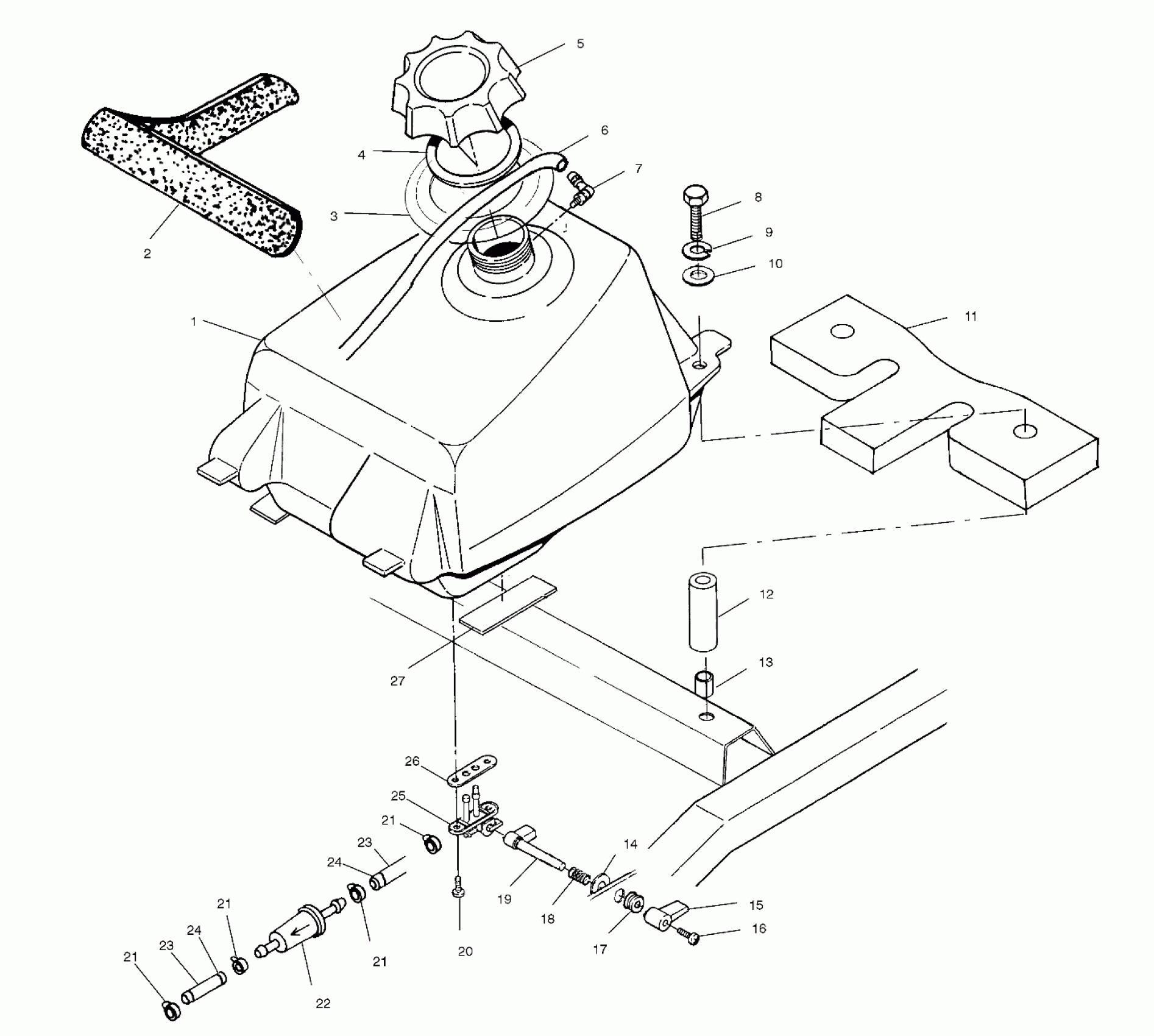

Polaris SCRAMBLER 500 - A00BG50AA FUEL TANK - A00BG50AA (4954855485A014) Diagram

#

Description
Price

1

TANK,FUEL

5432879

Unavailable

1

TANK ASM,FUEL (Incl. 7,20,25,26)

2511342

Unavailable

2

SEAL,FOAM

5811527

Unavailable

3

GROMMET,FUELTANK

5410842

Unavailable

4

GASKET-GAS CAP

5810144

$5.59

5

CAP, GAS, (BLACK)

5430725

$24.27

6

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

7

Vent, Tank

5431053

$19.99

8

BOLT(10)

7512249

Unavailable

9

LOCK WASHER(10)

7552801

$1.59

10

WASHER, FLAT(10)

7555859

$1.49

11

SEAL,FOAM

5811526

$31.99

12

Spacer

5332457

Unavailable

13

INSERT,(10)

7542143

$5.59

14

WASHER(10)

7555726

$1.59

15

Lever, Fuel

5431021

$4.79

16

SCREW(10)

7511840

Unavailable

17

Grommet

5432291

$2.39

18

SPRING,LEVER,COMPRESS.

7041209

$7.19

19

EXT.,FUEL LEVER

5431391

$7.19

20

SCREW(10)

7515136

$1.49

21

HOSE CLAMP, RED

7080003

$1.49

21

HOSE CLAMP, RED

7080003

$1.49

21

HOSE CLAMP, RED

7080003

$1.49

21

HOSE CLAMP, RED

7080003

$1.49

22

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

23

SHEATH-FOIL LAMINATED,5/8X27CM Substituted by 8450080-65

8450080-27

$64.75

23

SHEATH-FOIL LAMINATED,5/8X27CM Substituted by 8450080-65

8450080-27

$64.75

24

FUEL LINE,1/4 ID(600 CM.)

8450040-600

$68.79

24

FUEL LINE,1/4 ID(600 CM.)

8450040-600

$68.79

25

VALVE,FUEL,MAGNUM

7052190

$43.99

26

Gasket, Fuel Valve

5810859

$6.39

27

PAD,BULK FUEL

8360026

Unavailable
