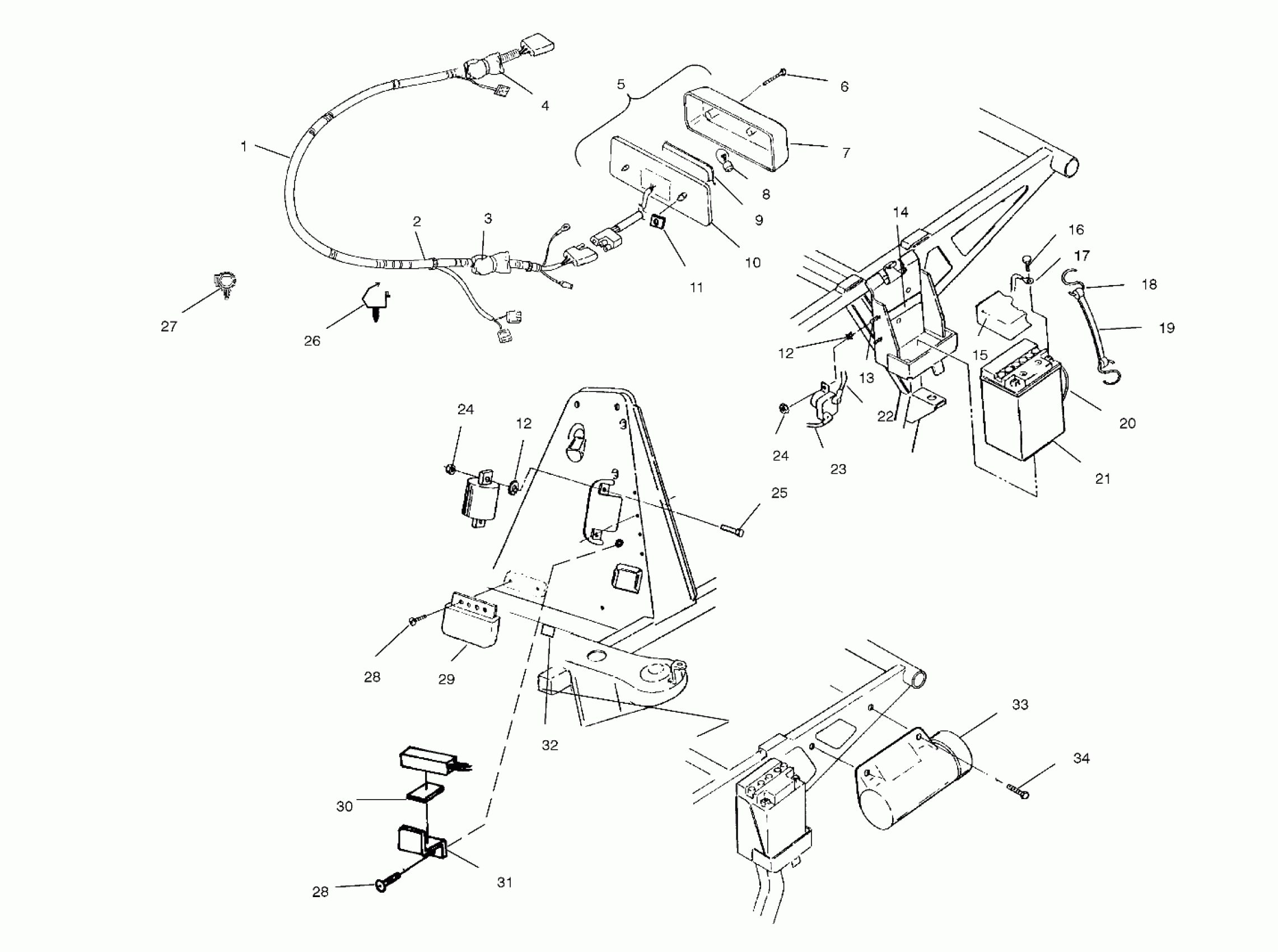

Polaris SCRAMBLER 500 - A00BG50AA ELECTRICAL/TAILLIGHT - A00BG50AA (4954855485C009) Diagram

#

Description
Price

1

HARNESS-MAIN,SCRAMBLER 500

2460787

Unavailable

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

CKT.BREAKER,20 AMP.

2434012

$38.89

4

KIT-CIRCUT BREAKER,FAN

2201795

$68.79

5

LIGHT,TAIL/BRAKE (Incl. 6-10)

2432038

$81.07

6

SCREW,TAIL LIGHT

7512088

$2.39

7

LENS,STOP&T/L.

4032085

$36.41

8

BULB,TAILLIGHT

4030043

$6.46

9

GASKET,T/L&STOP/L

4032086

Unavailable

10

BACKING,(STOP&TAIL)

4032087

Unavailable

11

CLIP, RETAINER(10)

7670093

$5.99

12

WASHER(10)

7571602

$4.79

12

WASHER(10)

7571602

$4.79

13

SCREW(10)

7512027

$1.49

14

PAD-BATTERY

5810290

$7.27

15

COVER,BATTERY

5431769

$14.39

16

BOLT,BATT,KIT(SHORT)

2200361

$3.99

17

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

18

HOOK-BATT.H/D(10)

7010032

$1.59

19

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

20

TUBE,BATTERY VENT

5432077

$8.08

21

Battery

4140006

$99.99

22

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

23

CABLE,SOL/STARTER

4010093

$47.99

24

NUT(10)

7541925

$1.49

24

NUT(10)

7541925

$1.49

25

SCREW(10)

7512007

$3.99

26

CLIP-ROUTING

7670109

$2.39

27

CLIP,ROSEBUD

4020149

$6.39

28

SCREW,(10)

7512024

$4.79

28

SCREW,(10)

7512024

$4.79

29

LIMITER-RPM,HUB GROUND,LR83-3

4010195

Unavailable

30

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

31

BRACKET-CDI

5241416

$5.75

32

EDGE TRIM - BLACK Substituted by 5521131

8360012

Unavailable

33

TOOLBOX ASM. Substituted by 2632221

2620087

Unavailable

33

LID COVER,TOOLBOX Substituted by 2620087

5431973

Unavailable

33

GASKET,TOOLBOX LID

5811079

Unavailable

34

BOLT(10)

7512232

$1.49
