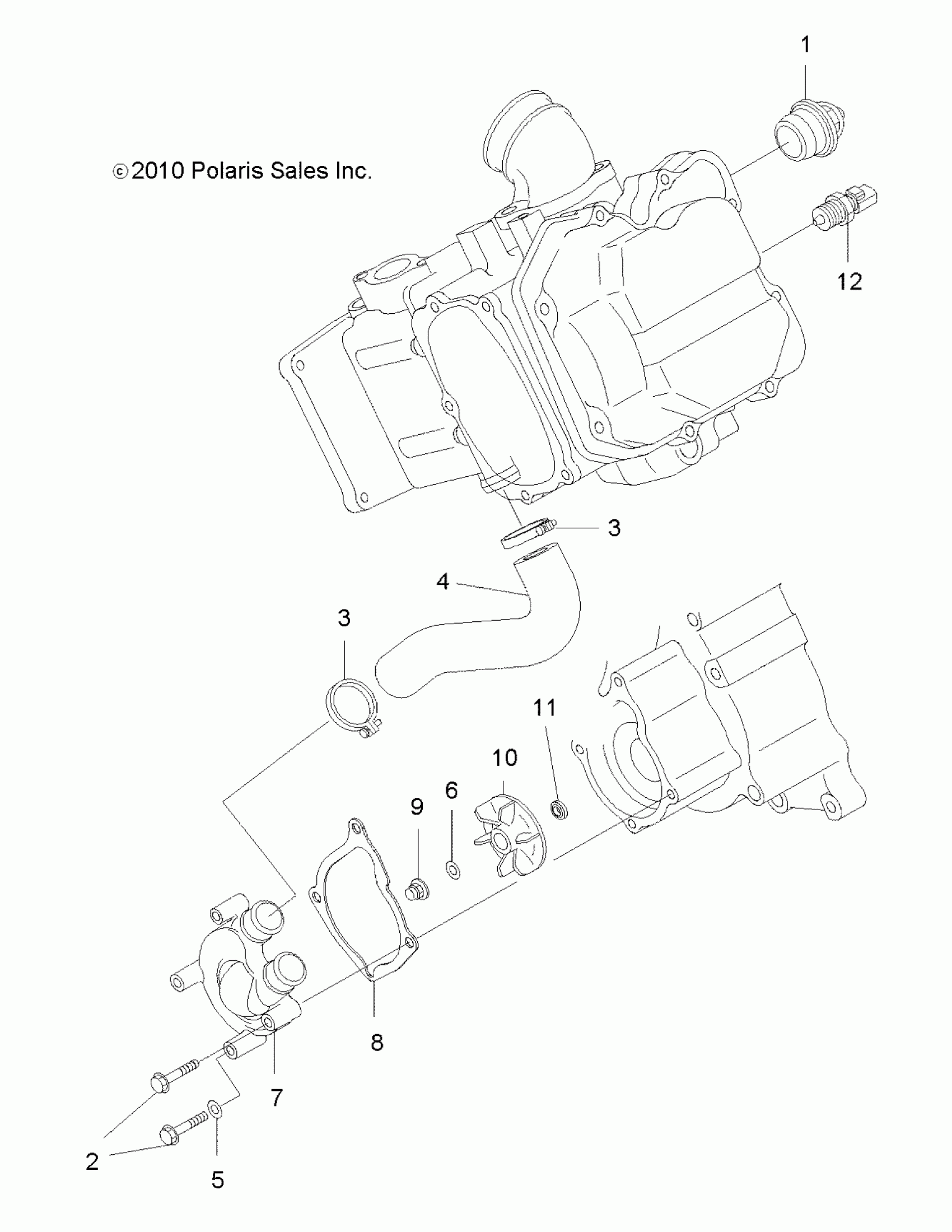

Polaris SCRAMBLER 500 4X4 - A12NG50AA ENGINE, WATER PUMP - A12NG50AA (49ATVWATERPUMP11SCRAM) Diagram

#

Description
Price

1

THERMOSTAT

3084940

$91.99

2

BOLT, FLANGE

3088064

Unavailable

3

CLAMP, HOSE

3086774

Unavailable

3

CLAMP, HOSE

3086774

Unavailable

4

HOSE, MAIN

3090291

Unavailable

5

GASKET, COPPER

3088030

$4.79

6

WASHER, FLAT

7555998

$1.49

7

COVER, WATER PUMP

3090292

Unavailable

8

GASKET, WATER PUMP

3086840

$6.39

9

NUT, SELF LOCK

3085077

$9.59

10

IMPELLER

3084935

$39.99

11

WASHER, SEAL

3084942

Unavailable

12

Sensor, Water Temperature

3089892

$99.99
