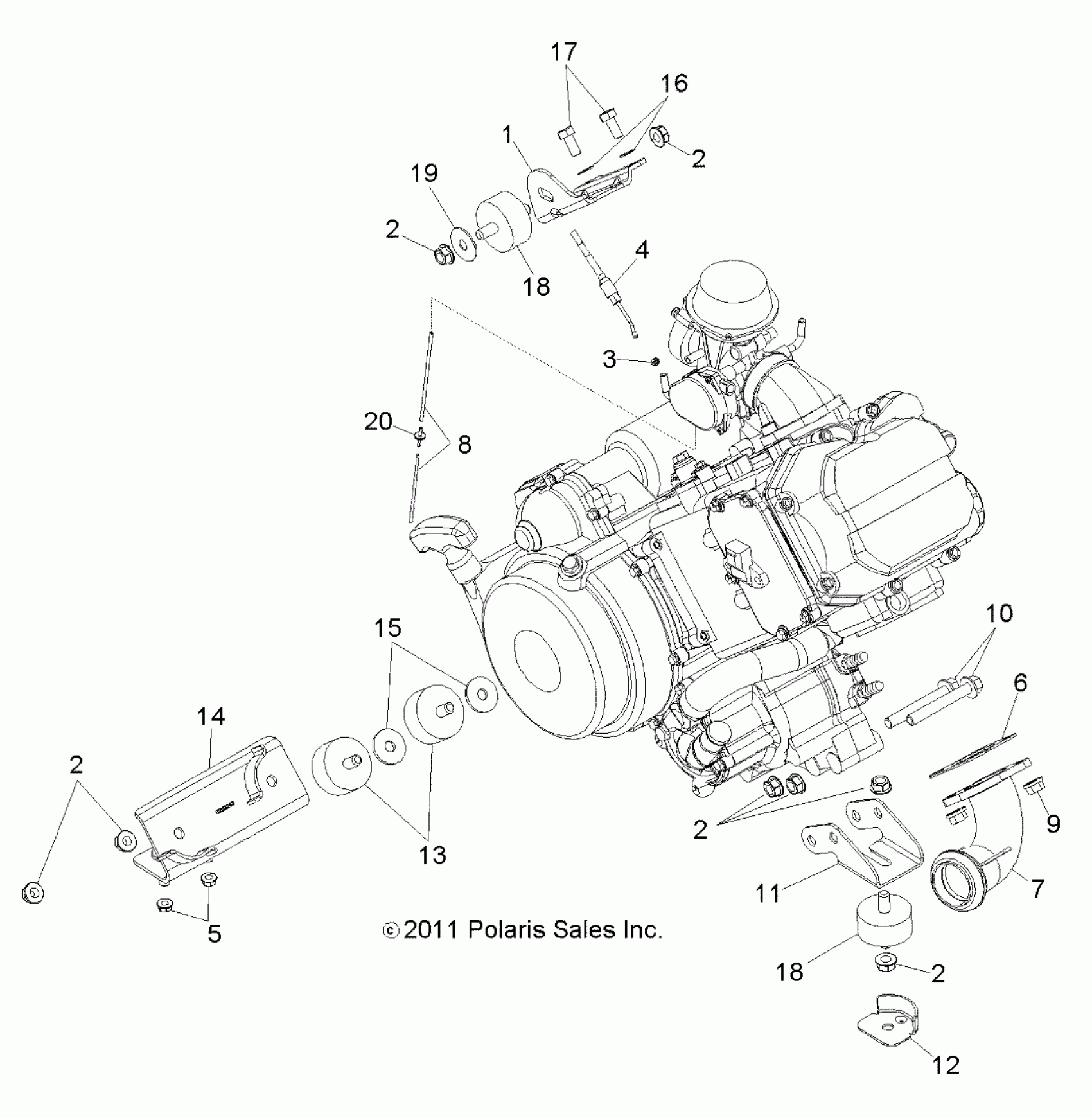

Polaris SCRAMBLER 500 4X4 - A12NG50AA ENGINE, MOUNTING - A12NG50AA (49ATVENGINEMTG12SCRAM) Diagram

#

Description
Price

1

Bracket, Engine Mount, Upper

5253242

$4.19

2

NUT

7547108

$4.76

2

NUT

7547108

$4.76

2

NUT

7547108

$4.76

2

NUT

7547108

$4.76

2

NUT

7547108

$4.76

3

Guide, Cable

3084696

$9.52

4

Cable, Throttle

7081170

$66.49

5

Nut, Flange

7547089

$4.76

6

GASKET

3085075

$40.46

7

Manifold, Black

1261391-489

$189.99

8

Fuel, Line

8360009-600

Unavailable

9

NUT, FLANGE

3082910

Unavailable

10

BOLT

7518415

$5.22

11

Bracket, Mount, Engine, Front

5253241

Unavailable

12

BRACKET, TORQUE STOP

5245043

$17.99

13

Isolator

3022072

Unavailable

14

Mount, Engine, Rear, Black

1017066-329

$61.99

15

Washer

7555815

$3.97

16

WASHER, SPRING LOCK

7552901

$1.19

17

BOLT

7512315

$4.76

18

ISOLATOR

3022071

$44.51

18

ISOLATOR

3022071

$44.51

19

WASHER, FLAT

7555823

$3.97

20

Valve, Check Vent

7051011

Unavailable
