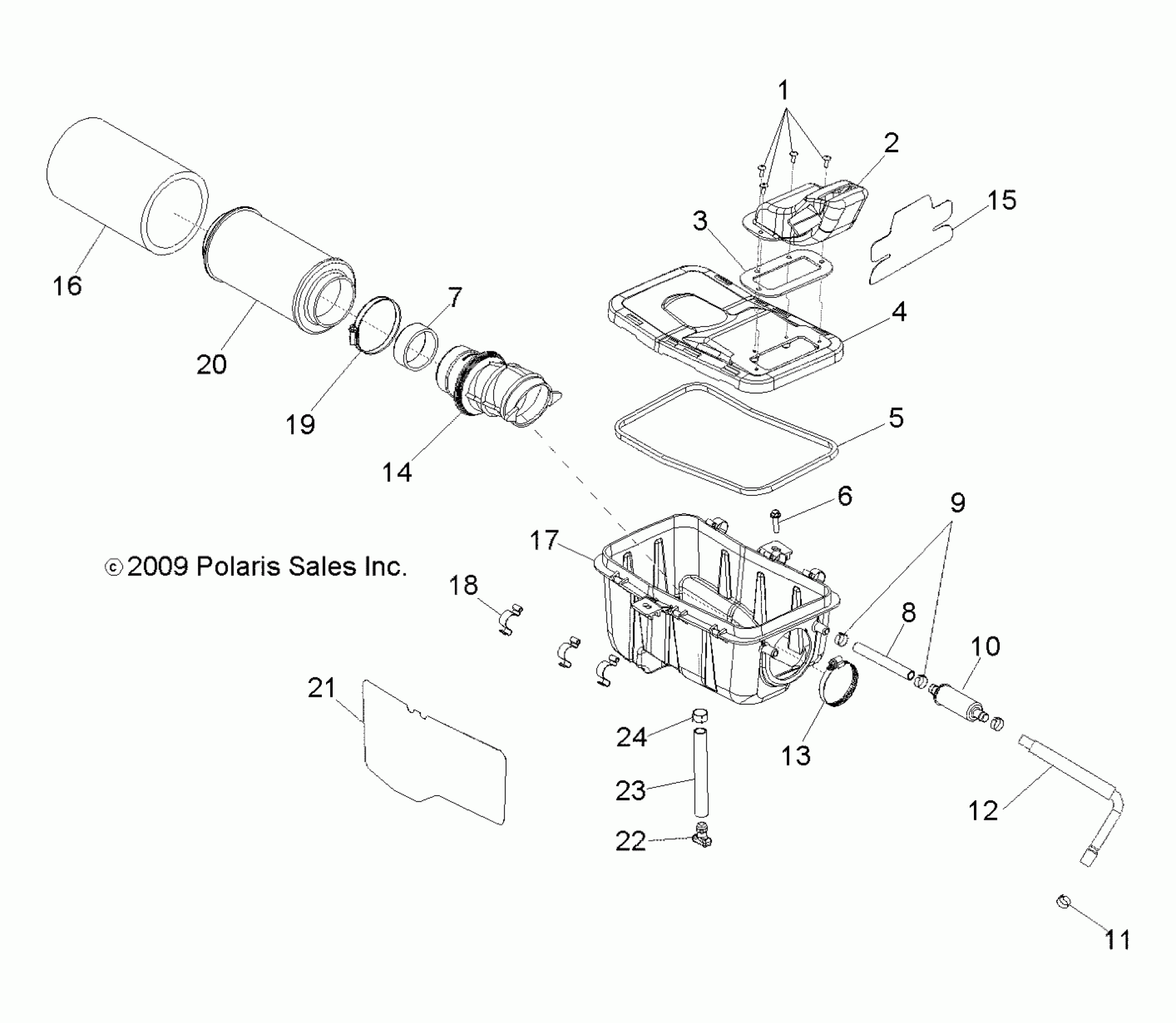

Polaris SCRAMBLER 500 4X4 - A12NG50AA ENGINE, AIR INTAKE SYSTEM - A12NG50AA (49ATVAIRBOX12SCRAM) Diagram

#

Description
Price

1

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

2

Duct, Inlet

5438032

Unavailable

3

Gasket, Intake

5411422

$6.63

4

Cover, Air Box

5432868

$51.99

5

Seal, Cover

5812829

$27.02

6

SCREW

7517685

$1.59

7

Sleeve, Inner

5433847

$13.59

8

Line, Breather

8450073-600

Unavailable

9

Clamp, Hose

7080699

$1.59

10

Filter, Breather

2530029

$6.39

11

Clamp, Hose, Spring

7080694

$6.53

12

Hose, Breather, Formed w/Chafe

5414226

Unavailable

13

Clamp, Narrow Band

7080413

$3.19

14

Boot, Carburetor

5438033

$19.03

15

Flap, Air Intake

5813510

$23.99

16

Filter, Sleeve, Precleaner

5811633

$11.99

17

Box, Air

5433387

$127.99

18

CLIP-AIR BOX

5242044

$9.59

19

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

20

Filter, Air

7080595

Unavailable

21

Foil

5813042

$19.99

22

Plug, Trap

5435299

$6.39

23

Line, Fuel

8450059-150

Unavailable

24

Clamp, Hose

7080650

$3.99
