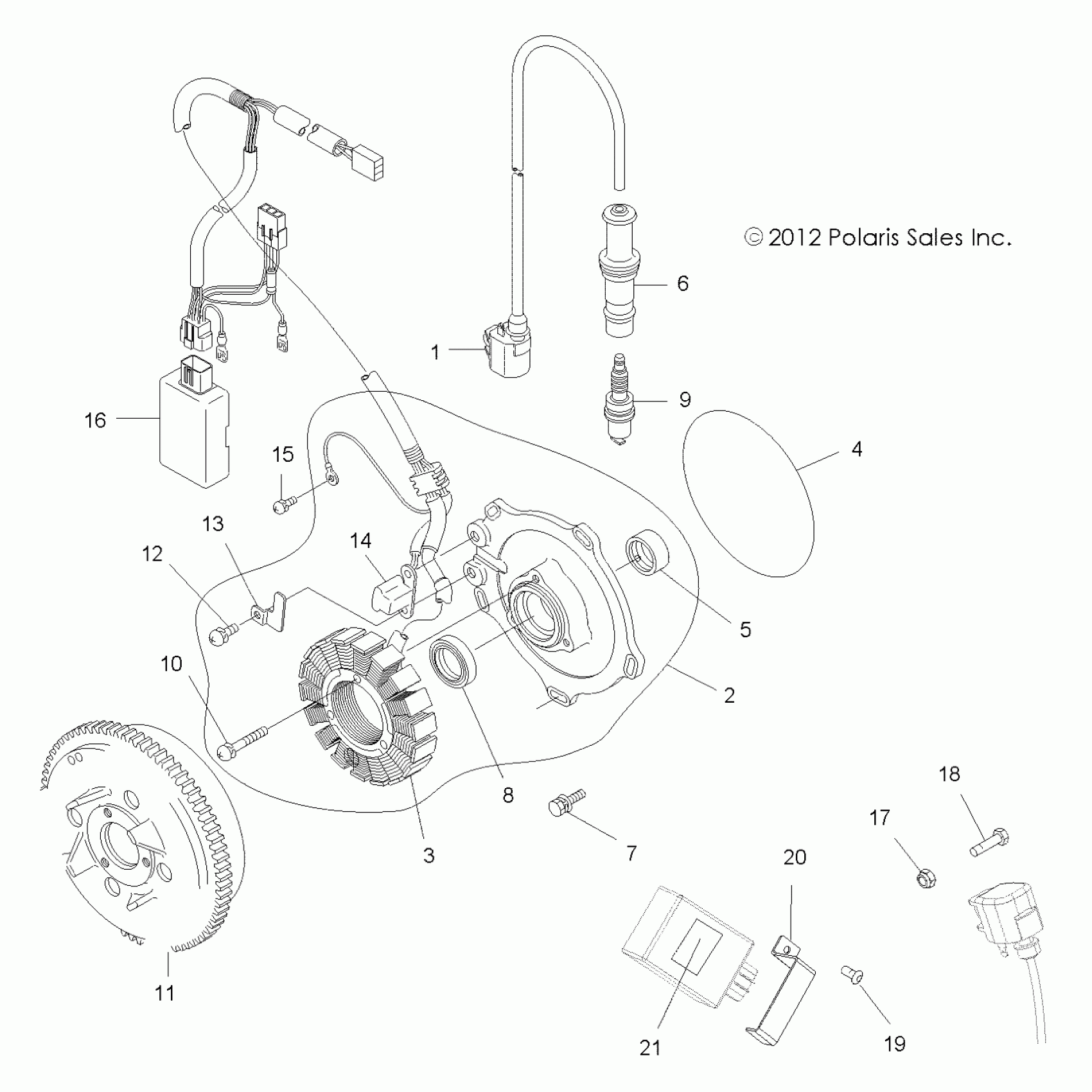

Polaris SCRAMBLER 500 4X4 - A12NG50AA ELECTRICAL, IGNITION SYSTEM - A12NG50AA (49ATVMAGNETO12SCRAM) Diagram

Description

Price

Asm., Ignition Coil [Incl. 1,6]

3089260

Unavailable

Plate [Incl. 3,5,8,10,12-15,17]

3089248

Unavailable

Stator [Incl. 14]

3089249

Unavailable

O-RING

3084978

$35.99

BEARING, METAL

3084972

Unavailable

CAP, SPARK PLUG

3084980

$59.99

BOLT, FLANGE

3083361

Unavailable

SEAL, OIL

3084973

$27.99

PLUG, SPARK, BKR6E

3070172

$3.99

Screw and Washer

3089251

$5.59

FLYWHEEL W/RING GEAR

3090239

Unavailable

Screw and Washer

3084976

Unavailable

BAND, PULSE

3089250

Unavailable

COIL, PULSER

3089254

$103.99

Screw and Washer

3081256

$3.19

CDI System

3090281

Unavailable

Nut, Nylok

7541925

$1.49

BOLT

7512007

$3.99

SCREW

7512024

$4.79

BRACKET, CDI

5246747

$7.99

Pad

5810317

Unavailable
