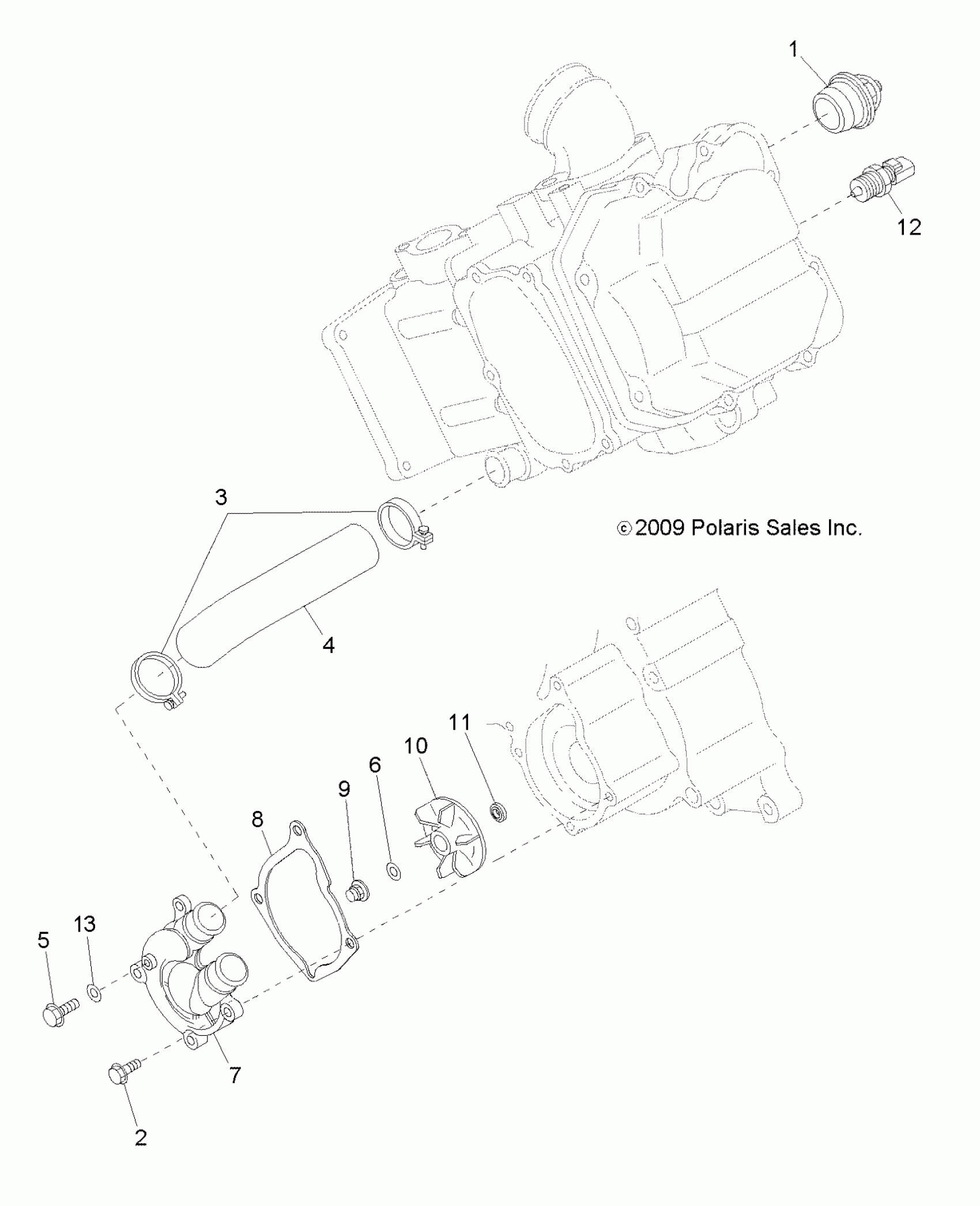

Polaris SCRAMBLER 500 4X4 - A10NG50AA ENGINE, WATER PUMP - A10NG50AA (49ATVWATERPUMP10SCRAM) Diagram

THERMOSTAT

3084940

$91.99

Bolt, Flange [Built 12/14/09 and Before]

3084877

Unavailable

Bolt, Flange [Built 12/15/09 and After]

3088064

Unavailable

CLAMP, HOSE

3086774

Unavailable

Hose, Main [Built 12/11/09 and Before]

3085857

Unavailable

Hose, Main [Built 12/12/09 and After]

3090291

Unavailable

Bolt, Flange

3085359

$2.39

GASKET, ALUM

3083138

Unavailable

Cover, Water Pump [Built 12/14/09 and Before]

3085351

Unavailable

Cover, Water Pump [Built 12/15/09 and After]

3090292

Unavailable

GASKET, WATER PUMP

3086840

$6.39

NUT, SELF LOCK

3085077

$9.59

IMPELLER

3084935

$39.99

WASHER, SEAL

3084942

Unavailable

Sensor, Water Temperature

3089892

$99.99

Washer, Flat [Built 12/14/09 and Before]

7555998

$1.49

Gasket, Copper [Built 12/15/09 and After]

3088030

$4.79
