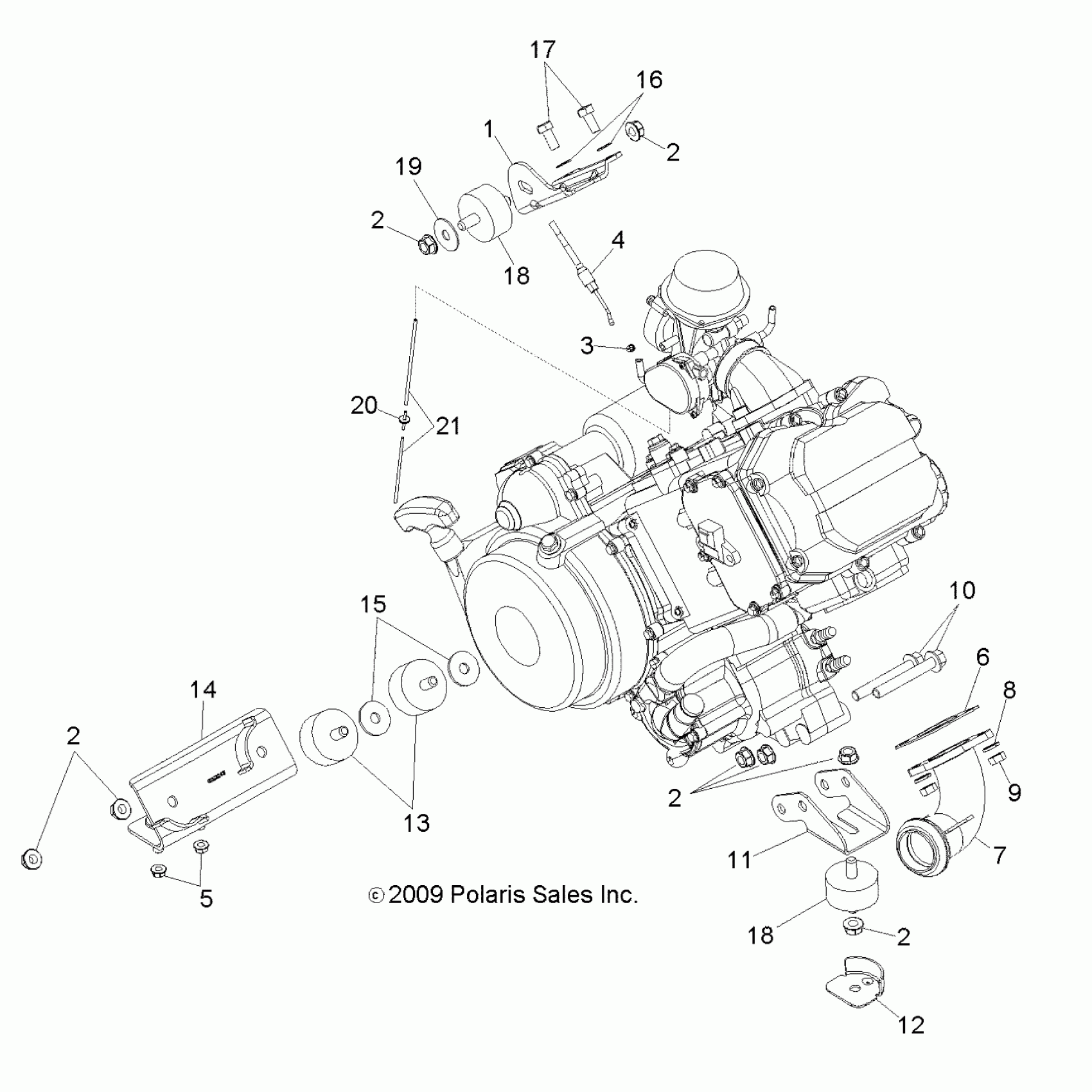

Polaris SCRAMBLER 500 4X4 - A10NG50AA ENGINE, MOUNTING - A10NG50AA (49ATVENGINEMTG10SCRAM) Diagram

#

Description
Price

1

Bracket, Engine Mount, Upper

5253242

$4.19

2

NUT

7547108

$4.79

2

NUT

7547108

$4.79

2

NUT

7547108

$4.79

2

NUT

7547108

$4.79

2

NUT

7547108

$4.79

3

Guide, Cable

3084696

$9.59

4

Cable, Throttle

7081550

$59.99

5

Nut, Flange

7547089

$4.79

6

GASKET

3085075

$39.99

7

Manifold, Black

1261391-489

$189.99

8

Washer, Spring

3080051

Unavailable

9

Nut

3087199

Unavailable

10

BOLT

7518415

$4.79

11

Bracket, Mount, Engine, Front

5253241

$8.17

12

BRACKET, TORQUE STOP

5245043

$15.83

13

Isolator

3022072

Unavailable

14

Mount, Engine, Rear, Black

1017066-329

$61.99

15

Washer

7555815

$3.99

16

WASHER, SPRING LOCK

7552901

$1.49

17

BOLT

7512315

$4.79

18

ISOLATOR

3022071

$38.60

18

ISOLATOR

3022071

$38.60

19

WASHER, FLAT

7555823

$3.99

20

Valve, Check Vent

7051011

Unavailable

21

Fuel, Line

8360009-600

Unavailable
