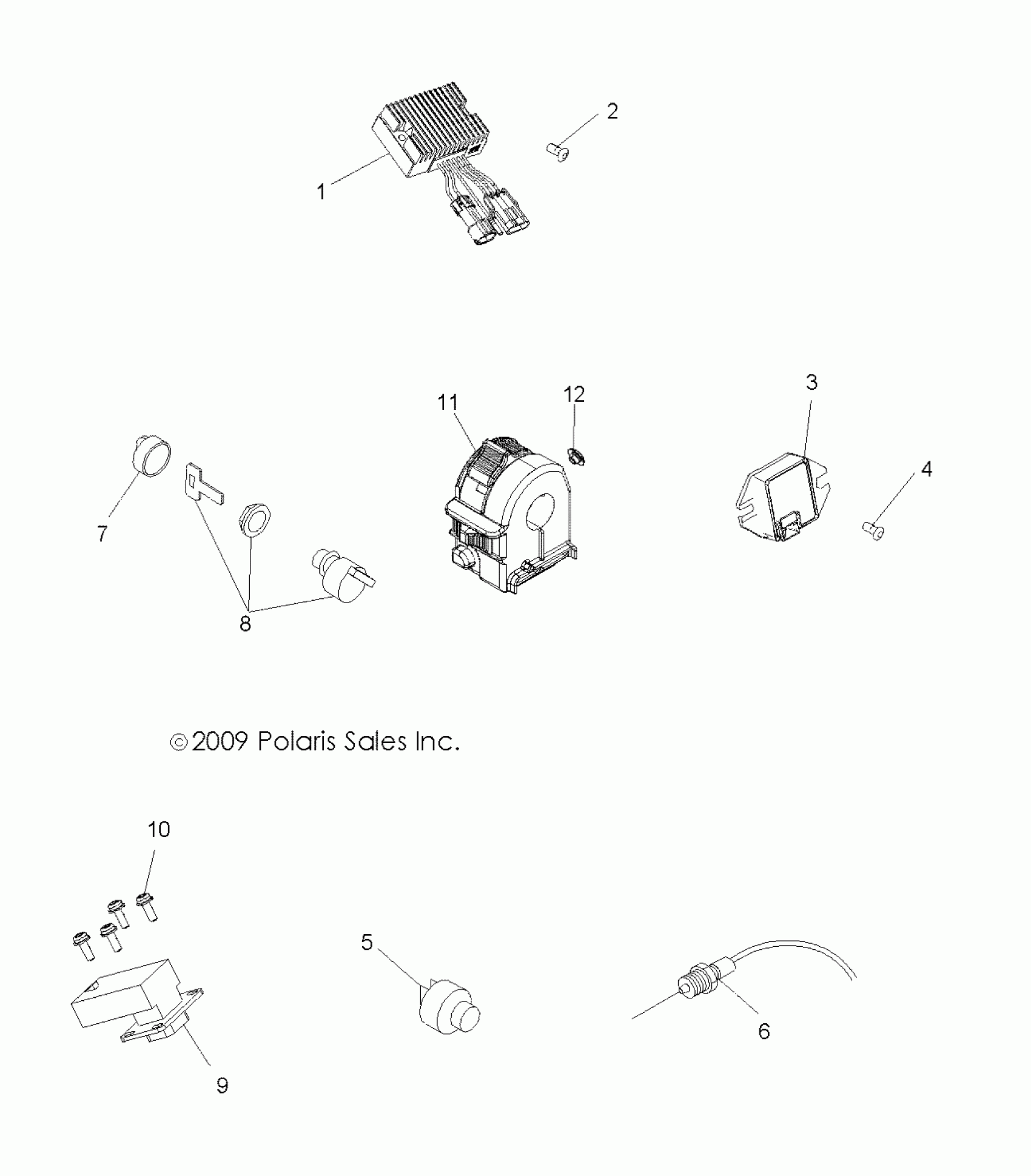

Polaris SCRAMBLER 500 4X4 - A10NG50AA ELECTRICAL, SWITCHES and SENSORS and CONTROL MODULES - A10NG50AA (49ATVELECT10SCRAM) Diagram

#

Description

Price

1

RECTIFIER/REGULATOR

4012192

$211.99

2

Screw

7512084

$1.49

3

Module, Vehicle Control

4012948

$227.99

4

SCREW

7512025

$4.79

5

Switch [Brake Light]

4110164

Unavailable

6

Sensor, Thermo

3089246

Unavailable

7

KEY SWITCH KEY COVER

5433534

$12.35

8

Switch, Key, 3 Position [Incl. 7]

4012165

$104.24

8

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: Ignition Key blank may be ordered by using the four digit number on the key.

4010278

Unavailable

8

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

9

Switch, 3 Position, Gear Indication

3234002

$174.99

10

SCREW

3233749

$5.59

11

Switch, Handlebar, LH, On/Off

4011655

Unavailable

12

PLUG, HOLE

5432952

$5.59
