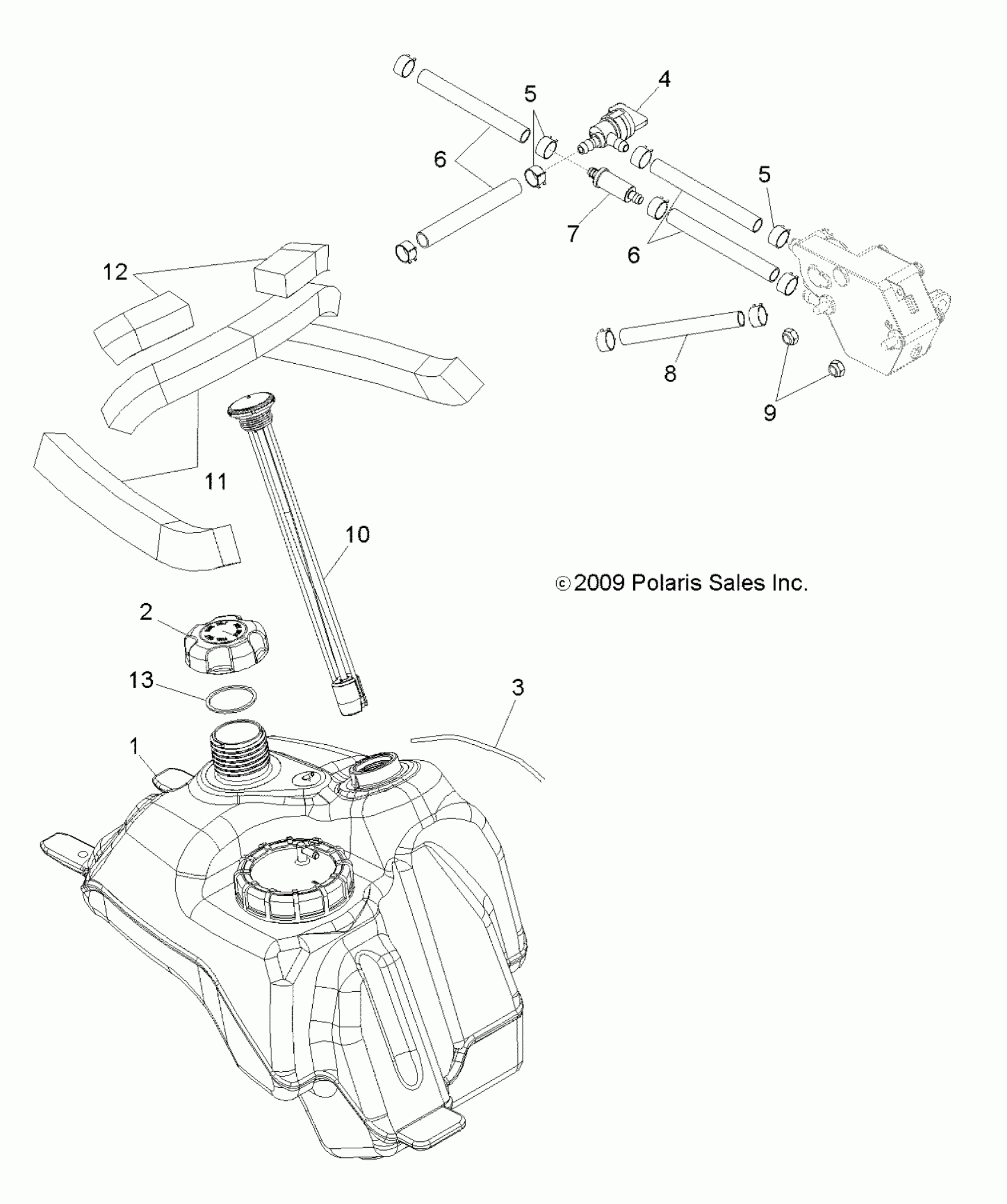

Polaris SCRAMBLER 500 4X4 - A10NG50AA BODY, FUEL SYSTEM - A10NG50AA (49ATVFUEL10TBLZR) Diagram

#

Description
Price

1

Asm., Fuel Tank [Incl. 10]

2520993

Unavailable

2

Cap, Gas Tank

5433687

$20.22

3

LINE, FUEL

8360009-600

Unavailable

4

Valve, Fuel

7052249

$28.32

5

HOSE CLAMP, RED

7080003

$1.19

5

HOSE CLAMP, RED

7080003

$1.19

6

HOSE, FUEL

8450117-250

Unavailable

6

HOSE, FUEL

8450117-250

Unavailable

7

FILTER, SMALL, IN-LINE

2530009

$6.46

8

Line, Fuel

8450040-600

Unavailable

9

NUT-M5X.8,HX NYL-Y

7546601

$1.19

10

Gauge, Fuel

3280524

$44.51

11

FOAM, SEAL

5813255

$8.99

12

Foam, Seal

5813551

$1.35

13

GASKET

5812123

$5.65
