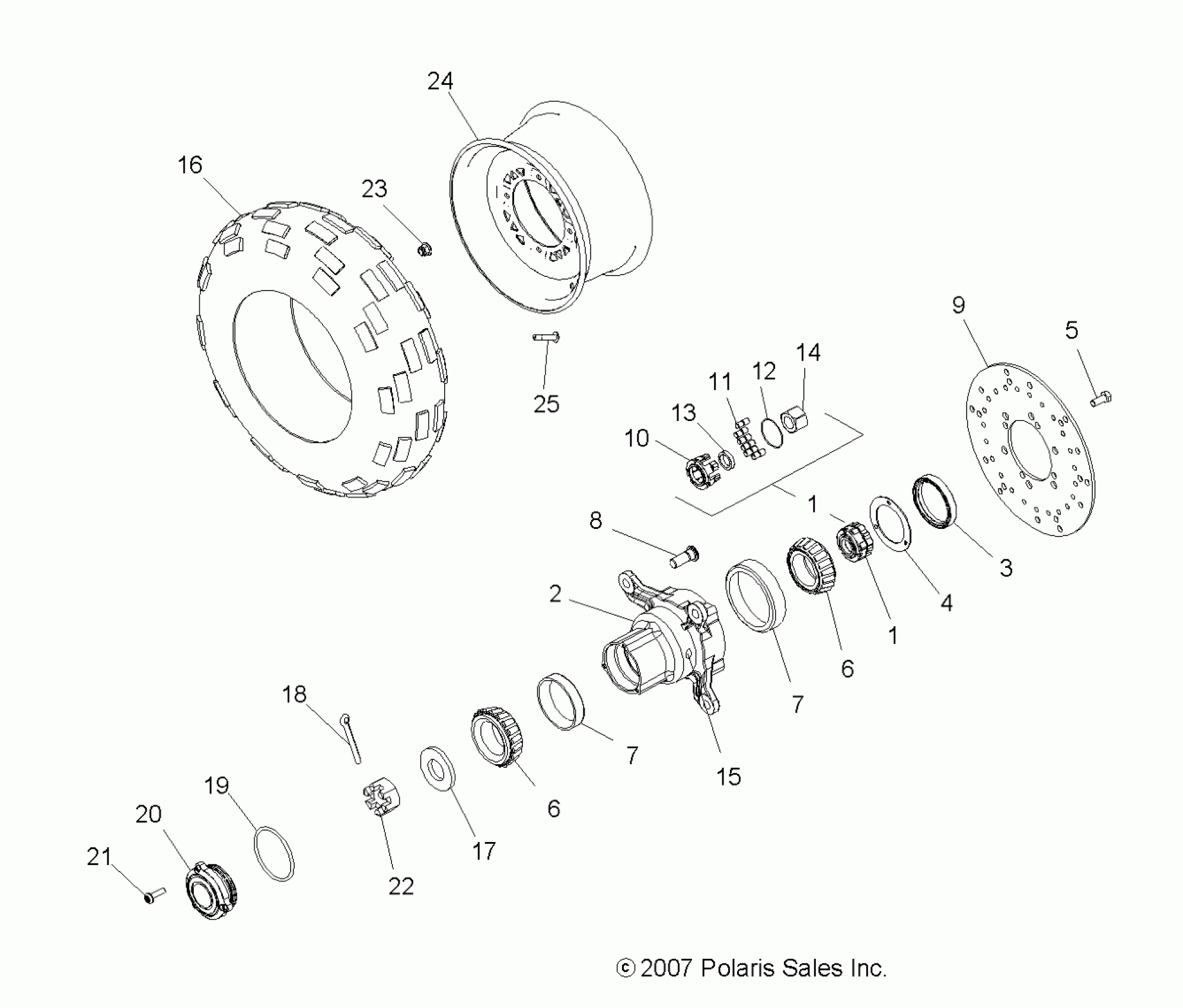

Polaris SCRAMBLER 500 4X4 - A08BG50AA WHEEL, FRONT - A08BG50AA (49ATVWHEELFRT08SCRAM) Diagram

#

Description
Price

1

Clutch, Front Hub, Elec./Mech. [Splined Drive Shaft]

1520281

$354.99

1

Clutch, Front Hub, Elec./Mech. [Splined Drive Shaft]

1520281

$354.99

2

Asm., Hub [Incl. 3,7,8]

1520243

Unavailable

3

Seal, Front Hub

3610019

$35.99

4

Plate, Armature

5211148

$23.99

5

BOLT

7512325

$2.39

6

Bearing, Tapered Roller Cone

3554506

$31.99

6

Bearing, Tapered Roller Cone

3554506

$31.99

7

Bearing, Tapered Roller Cup

3554507

$31.99

7

Bearing, Tapered Roller Cup

3554507

$31.99

8

Stud

7515513

$1.49

9

Disc, Brake

5240035

Unavailable

10

Cage, Roll

3250028

$218.56

11

Roll

3250010

$35.99

12

Spring, Garter

3250032

$17.59

13

Spacer

1321814

$24.99

14

Cam

3250030

$198.48

15

Plug, Magnetic Drain

7052045

$12.79

16

Tire, Titan, 23x7-10

5412324

Unavailable

17

WASHER

7556004

$7.19

18

PIN, COTTER

7661402

$1.86

19

O-Ring

5410470

$2.41

20

Cap, Hub

5432611

$14.39

21

Screw

7512027

$1.49

22

NUT, SLOTTED

7542810

$3.19

23

NUT, FLANGE

7547237

$2.39

24

Rim, Front, Silver

1520175-486

$114.49

25

VALVE-RIM

1525017

$5.59
