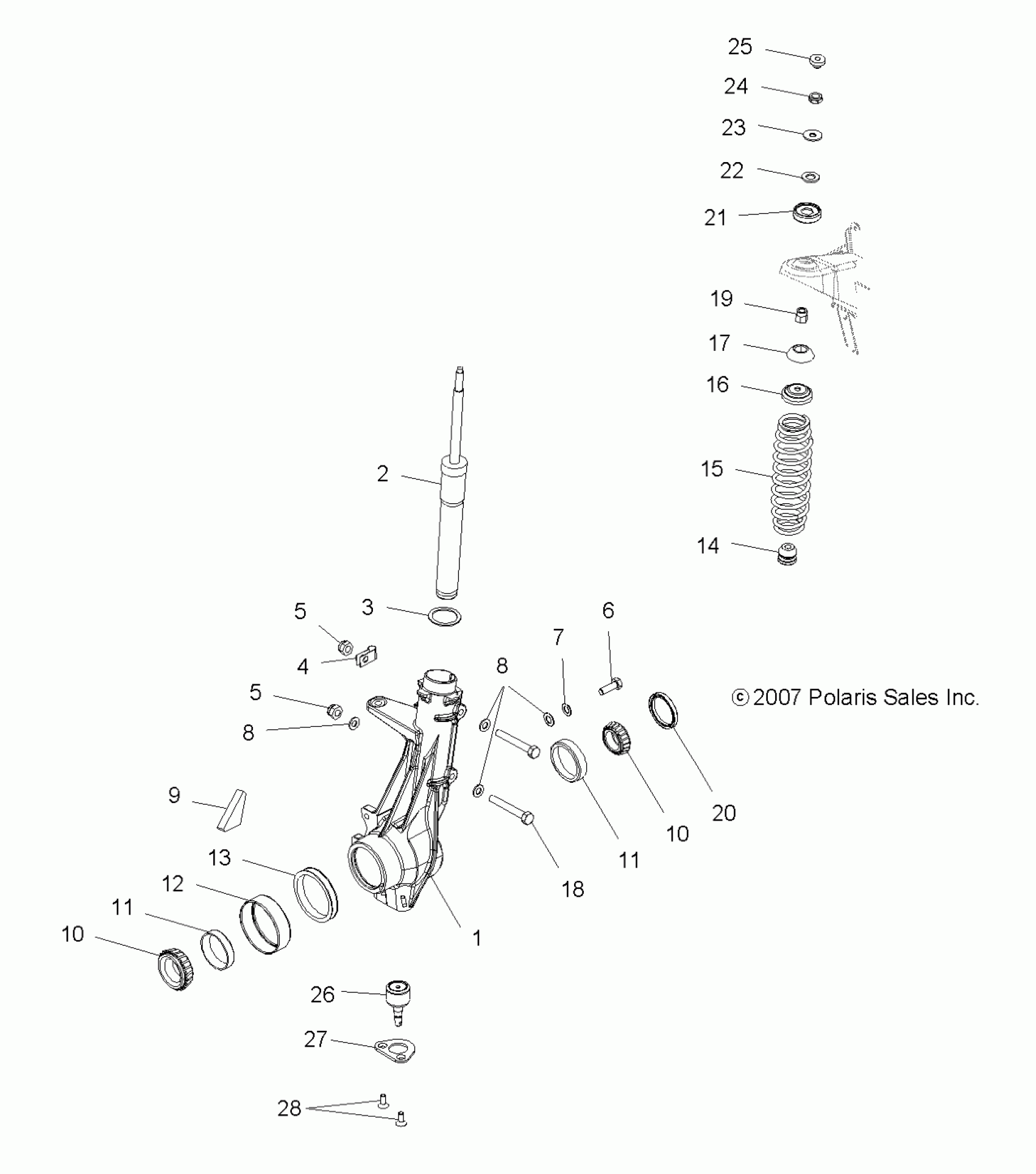

Polaris SCRAMBLER 500 4X4 - A08BG50AA SUSPENSION, FRONT STRUT - A08BG50AA (49ATVSTRUT08SCRAM) Diagram

#

Description
Price

1

Asm., Hubstrut, LH [Incl. 9,12,13,26,27,28]

1822821

Unavailable

1

Asm., Hubstrut, RH [Incl. 9,12,13,26,27,28]

1822822

Unavailable

2

STRUT, FRONT

7041762

$137.76

3

WASHER-2.06X2.62X.105-Y

5211115

$3.97

4

CLAMP-CABLE

7080367

$2.38

5

NUT-5/16-18 NYLOK-Y

7542324

$0.79

5

NUT-5/16-18 NYLOK-Y

7542324

$0.79

6

SCREW, CAP

7512365

$1.19

7

WASHER, SPRING LOCK

7552901

$1.19

8

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

8

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

9

Retainer, Strut Casting Wire

5810439

Unavailable

10

Bearing, Tapered Roller

3554509

$23.81

10

Bearing, Tapered Roller

3554509

$23.81

11

Bearing, Tapered Roller Cup

3554507

$31.75

11

Bearing, Tapered Roller Cup

3554507

$31.75

12

Sleeve, Hubstrut Seal

5222193

$64.75

13

Coil, Magnetic

2410133

$129.51

14

BUMPER-MCU,17.8MM ID

5412665

$6.35

15

Spring, Compression, White

7041603-133

Unavailable

16

RETAINER-SPRING,STRUT

5243364

$20.22

17

PIVOT-BALL,BOTTOM,DELRIN

5432871

$10.51

18

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.76

19

SPACER

5132062

$19.84

20

Seal, Hubstrut

3610028

$32.37

21

PIVOT-BALL,TOP,DELRIN

5432872

$10.51

22

SPACER-RUBBER

5810291

$3.97

23

WASHER

7555749

$1.19

24

NUT-1/2-20 NYLOK,THIN HT-Y

7547104

$1.19

25

Grommet

7052028

$6.35

26

BALL-JOINT,GREASELESS,STRUT

7061158

$28.32

27

BRACKET-BALL JOINT

5211121

$32.37

28

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19
