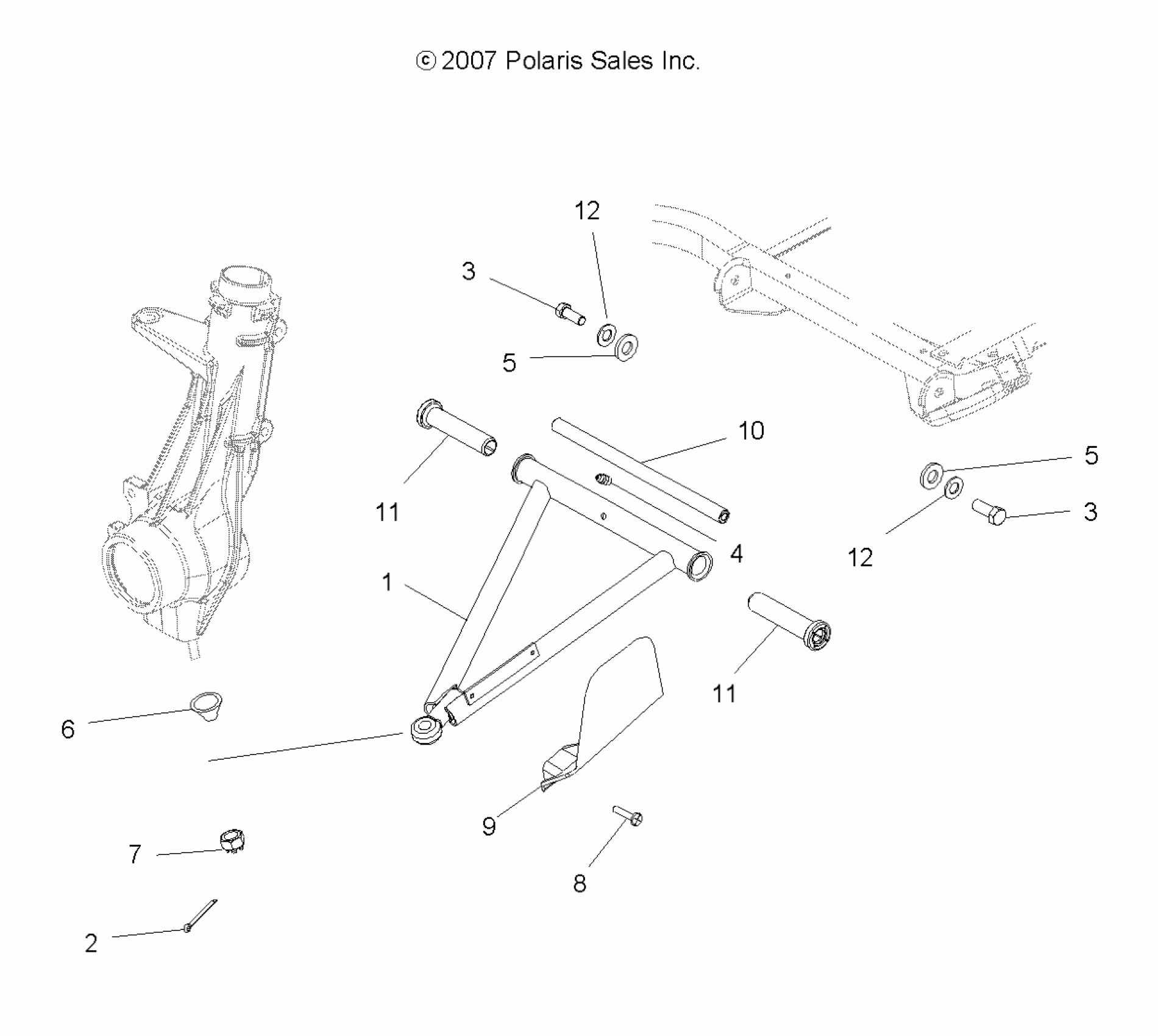

Polaris SCRAMBLER 500 4X4 - A08BG50AA SUSPENSION, A-ARM and STRUT MOUNTING - A08BG50AA (49ATVAARM08SCRAM) Diagram

#

Description
Price

1

Kit, A-Frame, Cloud Silver, RH

2202285-385

Unavailable

1

Kit, A-Frame, Cloud Silver, LH

2202284-385

Unavailable

2

Pin, Cotter

7661203

$1.49

3

Screw

7512492

$1.49

3

Screw

7512492

$1.49

4

Fitting, Lubrication

7080433

$1.49

5

WSHR-.813X.406X.105-Y

7555832

$2.39

5

WSHR-.813X.406X.105-Y

7555832

$2.39

6

BOOT, BALL JOINT, GREASELESS

5412658

$4.79

7

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

8

Screw

7512084

$1.49

9

Shield, CV Joint, Black, RH

5431149-070

$24.27

9

Shield, CV Joint, Black, LH

5431150-070

Unavailable

10

Shaft, A-Arm

5133806

$30.79

11

Bushing, A-Arm, Long

5434551

$5.01

11

Bushing, A-Arm, Long

5434551

$5.01

12

Washer, Spring Lock

7552603

$1.49

12

Washer, Spring Lock

7552603

$1.49
