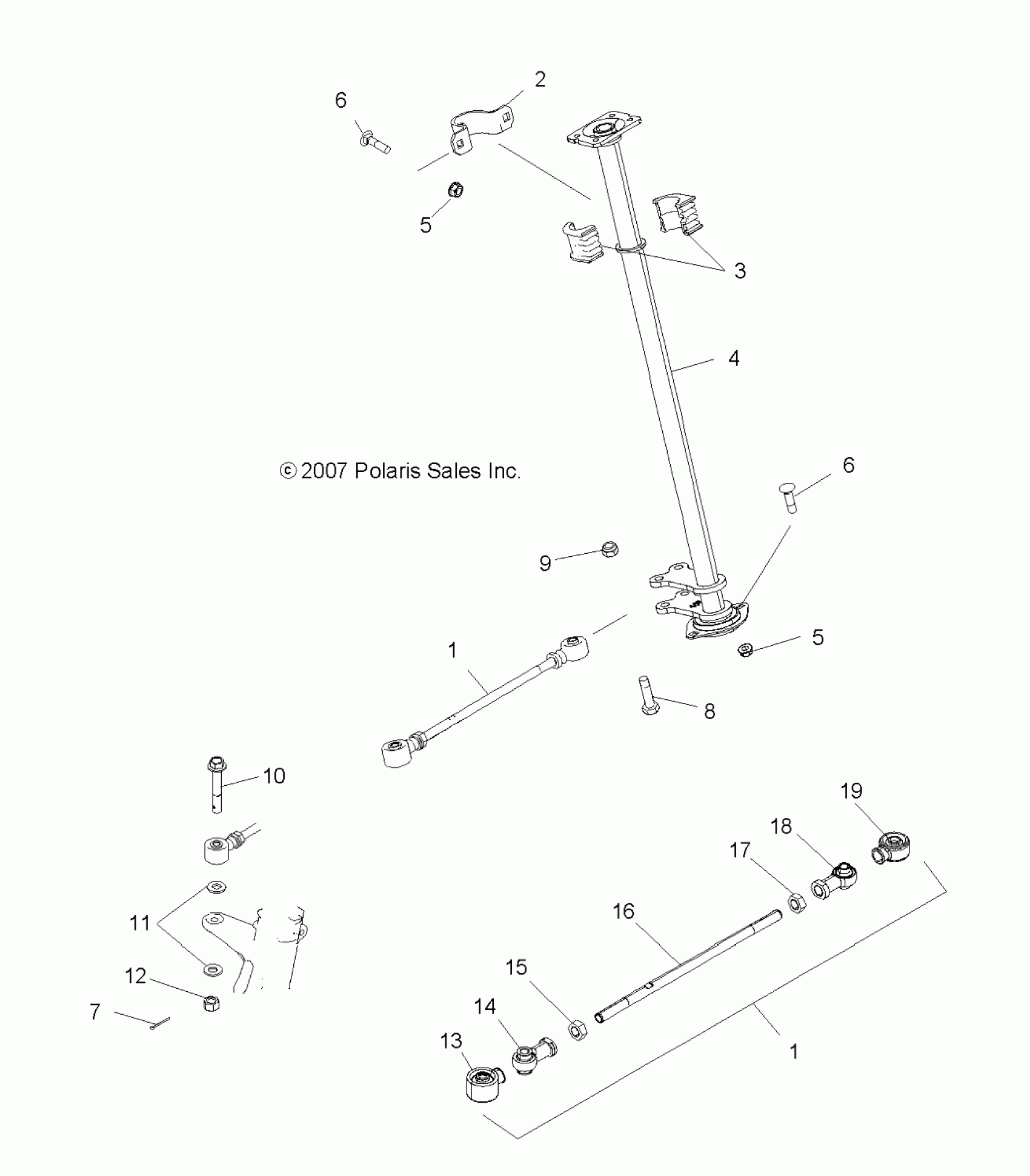

Polaris SCRAMBLER 500 4X4 - A08BG50AA STEERING, STEERING POST - A08BG50AA (49ATVSTEERING08SCRAM) Diagram

#

Description
Price

1

Asm., Tie Rod [Incl. 13-19]

1822852

$133.56

1

Asm., Tie Rod [Incl. 13-19]

1822852

$133.56

2

Bracket, Upper, Bushing

5246732

$32.37

3

Bushing, Upper

5433866

$6.35

4

POST, STEERING

1823278

$178.08

5

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

5

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

6

BOLT

7517428

$2.38

6

BOLT

7517428

$2.38

7

Pin, Cotter

7661203

$1.19

8

Screw

7515415

$1.19

9

Nut, Nylok

7542439

$1.19

10

Bolt

7517909

$5.56

11

Washer

7556099

$1.59

12

Nut

7547177

$0.79

13

BOOT, SEAL

5412929

$11.32

14

Rod End, LH

7061138

$56.65

15

Nut, Jam, LH

7547028

$2.38

16

Tie Rod

5020926

$44.51

17

Nut, Jam

7542711

$2.38

18

ROD END, RH

7061139

$60.70

19

BOOT, SEAL

5412928

$11.32
