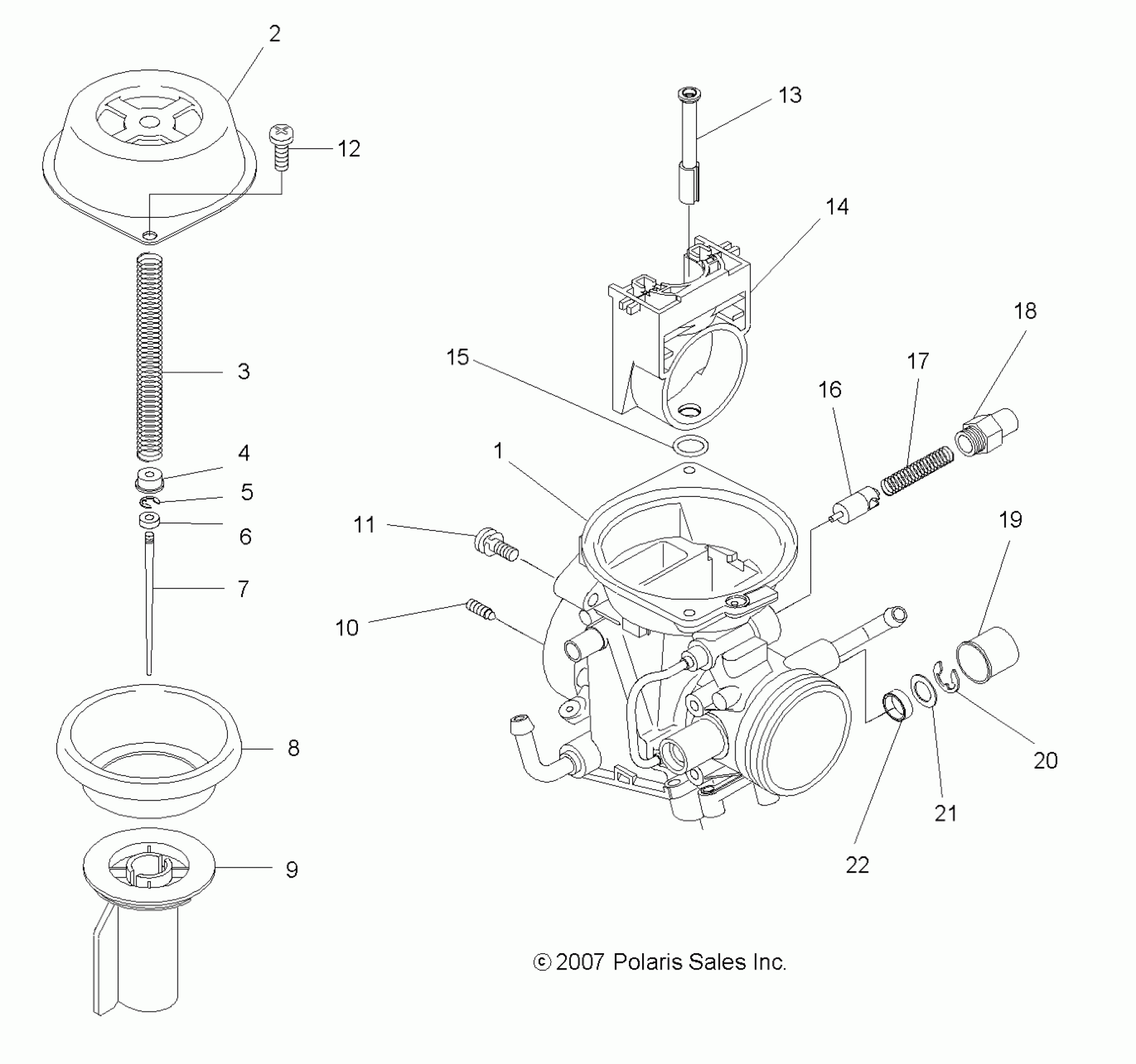

Polaris SCRAMBLER 500 4X4 - A08BG50AA ENGINE, UPPER CARBURETOR - A08BG50AA (49ATVCARBUPPER08SCRAM) Diagram

#

Description
Price

1

Asm., Carburetor [Incl. All less 11]

3131568

$510.89

2

COVER, DIAPHRAGM

3130914

$43.99

3

SPRING

3130911

$10.39

4

RING

3130913

$5.59

5

E-RING

3130908

$6.39

6

RING

3130915

$5.59

7

Needle, Jet

3131358

$40.46

8

DIAPHRAGM

3130910

$63.99

9

VALVE, PISTON

3130912

$59.99

10

JET, AIR

3130619

$7.27

11

Asm., Screw and Washer

3084205

$3.99

12

Screw

3130821

$7.19

13

Jet, Needle

3131594

$64.75

14

BLOCK, JET

3130909

$39.59

15

O-RING

3130916

$4.79

16

Asm., Plunger

3130539

$35.99

17

SPRING

3130538

$4.79

18

Holder, Guide

3130199

$28.32

19

CAP

3130519

$10.39

20

E-RING

3130518

$1.59

21

PACKING

-------

Unavailable

22

SEAL

3130515

$11.99
