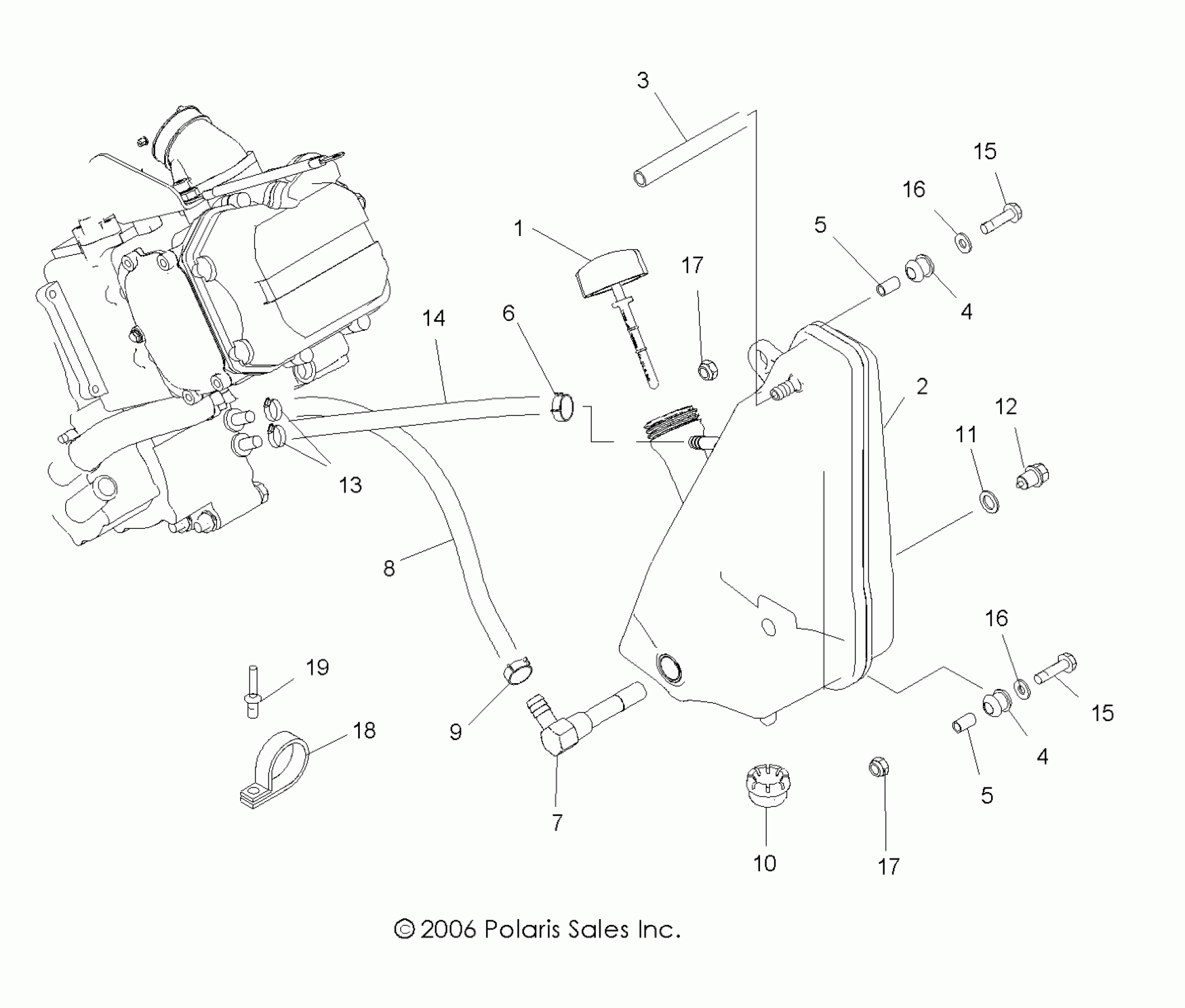

Polaris SCRAMBLER 500 4X4 - A08BG50AA ENGINE, OIL SYSTEM and OIL TANK - A08BG50AA (49ATVOILSCRAM) Diagram

#

Description
Price

1

Dipstick

5434307

$27.99

2

Tank, Oil

1261654

$207.99

3

Hose, Breather

5411873

Unavailable

4

GROMMET, MOUNTING, RESERVOIR

5410828

$3.99

4

GROMMET, MOUNTING, RESERVOIR

5410828

$3.99

5

BUSHING, MOUNTING

5333204

$26.39

5

BUSHING, MOUNTING

5333204

$26.39

6

Clamp, Hose

7080699

$1.59

7

SCREEN, OIL FILTER, 90 DEGREE

7052326

$39.99

8

Hose, Formed

5412227

$32.37

9

CLAMP, HOSE

7081026

$7.99

10

GROMMET

5412507

$6.39

11

WASHER

5850135

$3.19

12

PLUG

7051524

$27.99

13

CLAMP-HOSE,.875-SS

7080474

$8.40

14

Line, Breather

8450073-600

Unavailable

15

SCREW

7512130

$3.99

15

SCREW

7512130

$3.99

16

Washer, Flat

7558301

$1.49

16

Washer, Flat

7558301

$1.49

17

Nut, Nylok

7542122

$1.49

17

Nut, Nylok

7542122

$1.49

18

Clamp, Hose

7080880

$5.59

19

Rivet

7621432

$1.49
