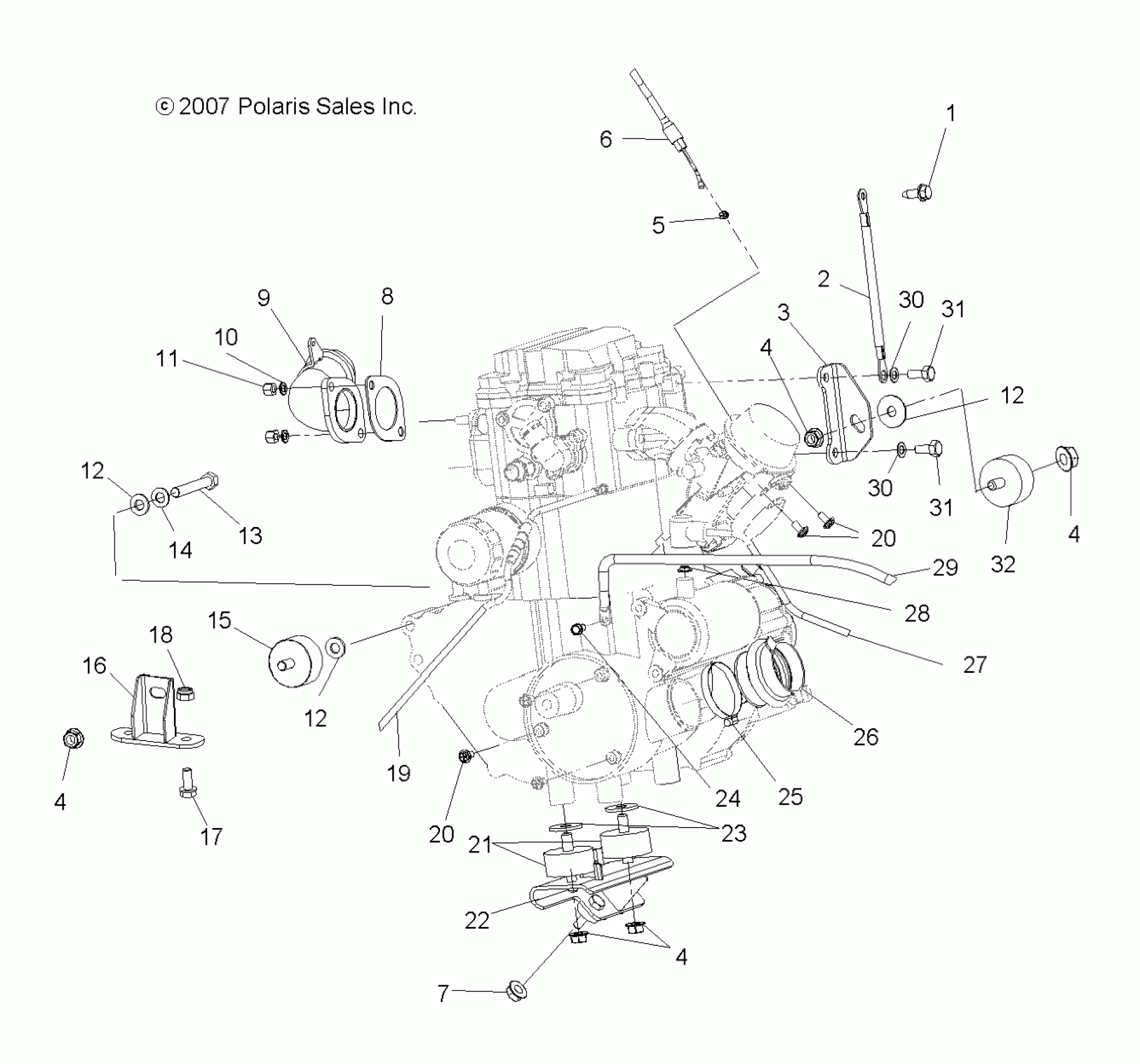

Polaris SCRAMBLER 500 4X4 - A08BG50AA ENGINE, MOUNTING - A08BG50AA (49ATVENGINEMTG08SCRAM) Diagram

#

Description
Price

1

SCREW

7517386

$1.49

2

Cable, Ground, Engine

4010132

Unavailable

3

Bracket, Engine Mount, Top

5242674

Unavailable

4

NUT

7547108

$4.79

4

NUT

7547108

$4.79

4

NUT

7547108

$4.79

4

NUT

7547108

$4.79

5

Guide, Cable

3084696

$9.59

6

Cable, Throttle

7081170

Unavailable

7

Nut, Flange

7547089

$4.79

8

GASKET

3085075

$39.99

9

Manifold, Black

1261391-489

$189.99

10

Washer, Spring

3080051

Unavailable

11

Nut

3087199

Unavailable

12

WASHER

7555823

$3.99

12

WASHER

7555823

$3.99

12

WASHER

7555823

$3.99

13

SCREW

7515417

$4.79

14

Washer, Spring Lock

7552603

$1.49

15

Mount, Motor

3110067

Unavailable

16

Mount, Engine, Front, Black

1040688-067

$14.68

17

SCREW

7515398

$2.39

18

NUT-5/16-18 NYLOK-Y

7542324

$1.49

19

Cable, Choke

7081177

$43.99

20

Asm., Screw and Washer

3084205

$3.99

20

Asm., Screw and Washer

3084205

$3.99

21

Isolator

3022072

Unavailable

22

Mount, Engine, Rear, Black

1014993-067

$24.79

23

Washer

7555815

$3.99

24

BOLT, FLANGE

3084874

Unavailable

25

Clamp

7080511

$4.79

26

BOOT, CLUTCH INTAKE

5412487

Unavailable

27

Cable, Solenoid/Starter

4010093

$47.99

28

NUT, FLANGE

3083649

$3.99

29

Cable, Battery/Engine

4010095

Unavailable

30

WASHER, SPRING LOCK

7552901

$1.49

30

WASHER, SPRING LOCK

7552901

$1.49

31

BOLT

7512315

$4.79

31

BOLT

7512315

$4.79

32

ISOLATOR

3022071

$38.60
