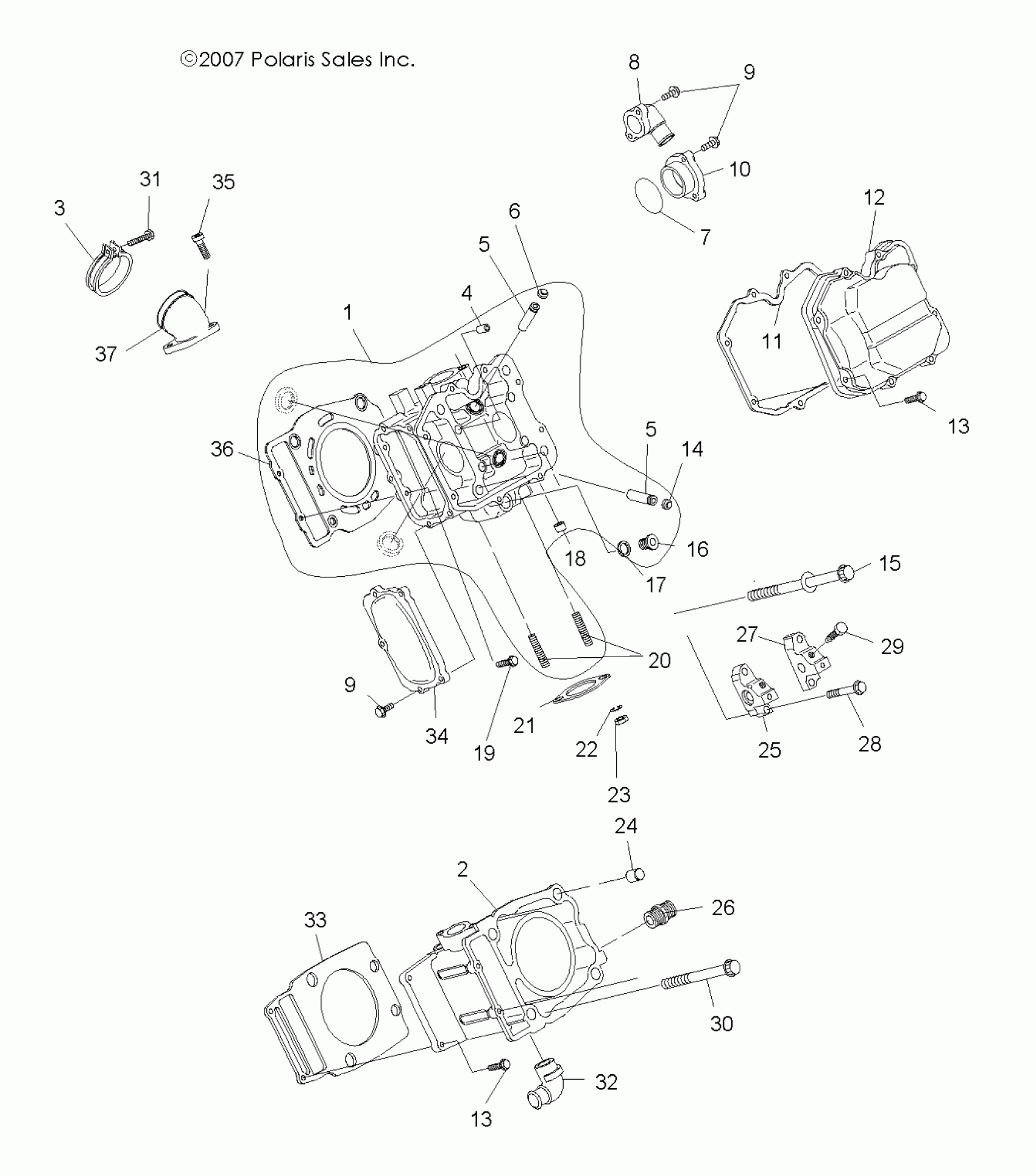

Polaris SCRAMBLER 500 4X4 - A08BG50AA ENGINE, CYLINDER and HEAD - A08BG50AA (49ATVCYLINDERHD08SCRAM) Diagram

#

Description
Price

1

Head, Cylinder [Incl. 4-6,14,16-18,21]

3085527

$712.79

2

Asm., Cylinder [Incl. 32]

3089256

$417.29

3

Asm., Band

3084045

Unavailable

4

Pin, Straight

3084857

Unavailable

5

GUIDE, VALVE

3084994

$39.99

5

GUIDE, VALVE

3084994

$39.99

6

Seal, Intake Valve

3084858

$13.59

7

O-RING

3084867

$23.99

8

ADAPTER

3084870

$59.99

9

BOLT, FLANGE

3084877

Unavailable

9

BOLT, FLANGE

3084877

Unavailable

10

ADAPTER, CAMSHAFT

3084866

Unavailable

11

GASKET, ROCKER COVER

3085074

$31.99

12

COVER, ROCKER

3085073

$75.99

13

BOLT, FLANGE

3084874

Unavailable

13

BOLT, FLANGE

3084874

Unavailable

14

SEAL, EXHAUST VALVE

3084859

$23.99

15

BOLT

3084875

Unavailable

16

PLUG

3084860

$7.19

17

GASKET

3084861

$4.79

18

PLUG, BLIND

3084862

Unavailable

19

Bolt, Flange

3086781

$4.79

20

GASKET

3085075

$39.99

21

Stud

3085326

Unavailable

22

Washer, Spring Lock

3080530

$3.19

23

Nut

3087199

Unavailable

24

PIPE, KNOCK

3087266

Unavailable

25

Support, Valve Rocker Shaft [MAG]

3084863

$91.99

26

Union

3084849

Unavailable

27

Support, Valve Rocker Shaft [PTO]

3084864

Unavailable

28

BOLT

3084876

$4.79

29

BOLT, ROCKER SHAFT

3085854

Unavailable

30

BOLT, FLANGE

3084873

Unavailable

31

ASM., SCREW AND WASHER

3081497

$2.39

32

Pipe 2, Elbow

3086747

Unavailable

33

Gasket, Cylinder

3085370

$38.60

34

COVER, CAMSHAFT

3089242

$55.99

35

BOLT, SOCKET HEAD

3081330

$3.99

36

GASKET, HEAD

3085371

$55.99

37

ADAPTER

3085809

Unavailable
