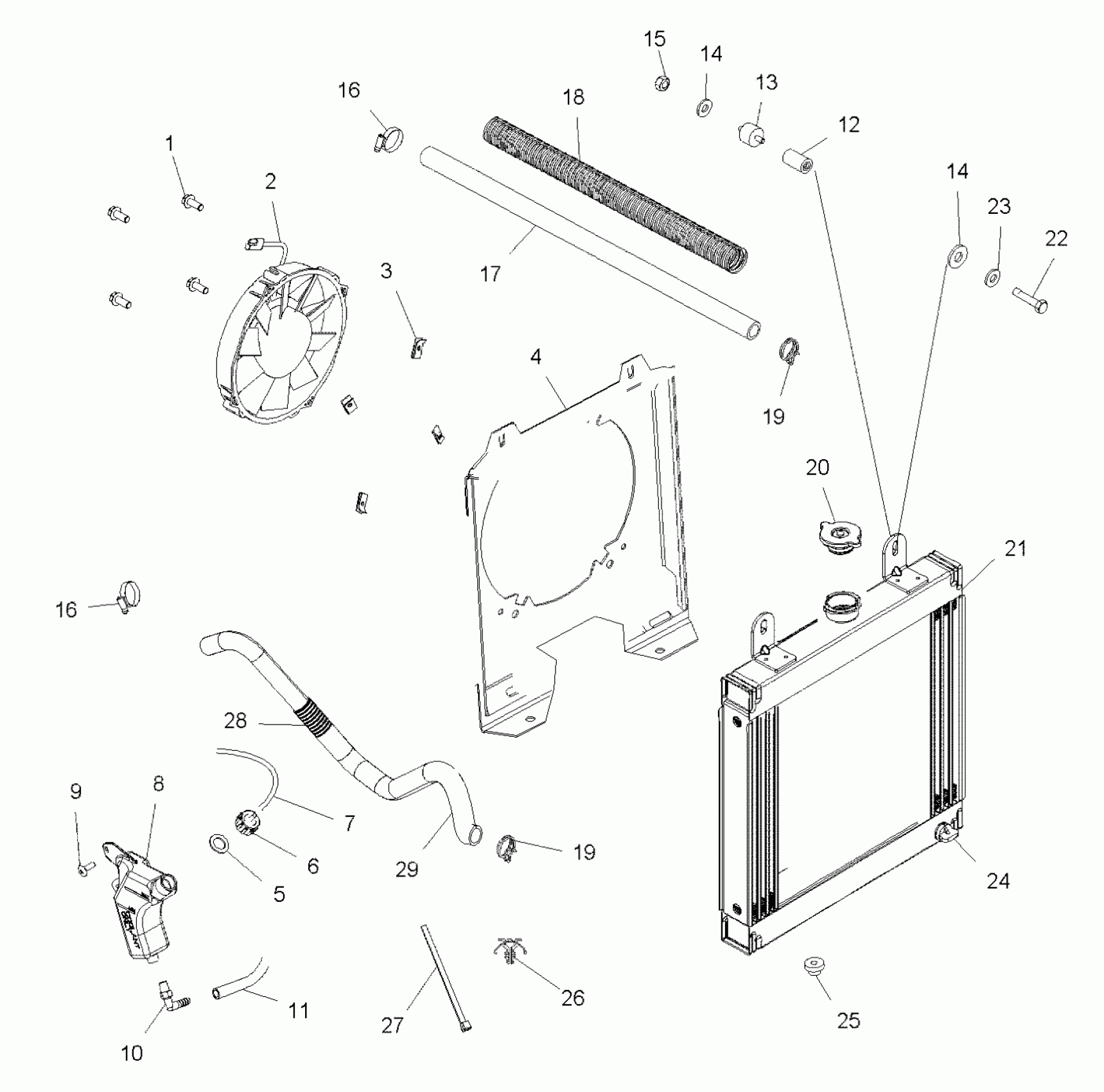

Polaris SCRAMBLER 500 4X4 - A08BG50AA ENGINE, COOLING SYSTEM - A08BG50AA (49ATVCOOL08SCRAM) Diagram

#

Description
Price

1

Screw

7517656

Unavailable

2

Asm., Fan and Motor

2410430

Unavailable

3

U-Clip

7670111

Unavailable

4

Shroud, Fan

5434043

$74.39

5

GASKET-OVERFLOW CAP

5810279

$2.41

6

CAP, OVERFLOW BOTTLE W/FITTING

5437635

$4.79

7

LINE, FUEL

8360009-600

$40.46

8

Tank, Surge

5433410

Unavailable

9

Screw

7512084

$1.49

10

Fitting

7052065

$7.19

11

Line, Fuel

8450003-1525

Unavailable

12

Spacer

5020937

Unavailable

13

Mount, Rubber

3110032

$7.99

14

Washer, Flat

7558301

$1.49

14

Washer, Flat

7558301

$1.49

15

Nut, Nylok

7542122

$1.49

16

CLAMP, HOSE

7080614

$7.19

16

CLAMP, HOSE

7080614

$7.19

17

Hose, Engine, Upper

5411985

$66.39

18

Guard, Hose

5521511

$7.43

19

Clamp

7080826

$4.79

19

Clamp

7080826

$4.79

20

Cap, Pressure

1240093

Unavailable

21

Radiator

1240177

$400.79

22

BOLT

7512240

$3.99

23

Washer, Spring, Lock

7552801

$1.59

24

Valve

7052296

Unavailable

25

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

26

MOUNT, CABLE TIE

7080965

$7.19

27

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

28

Guard, Plastic Hose

5521550

Unavailable

29

Hose, Engine, Lower

5411989

Unavailable
