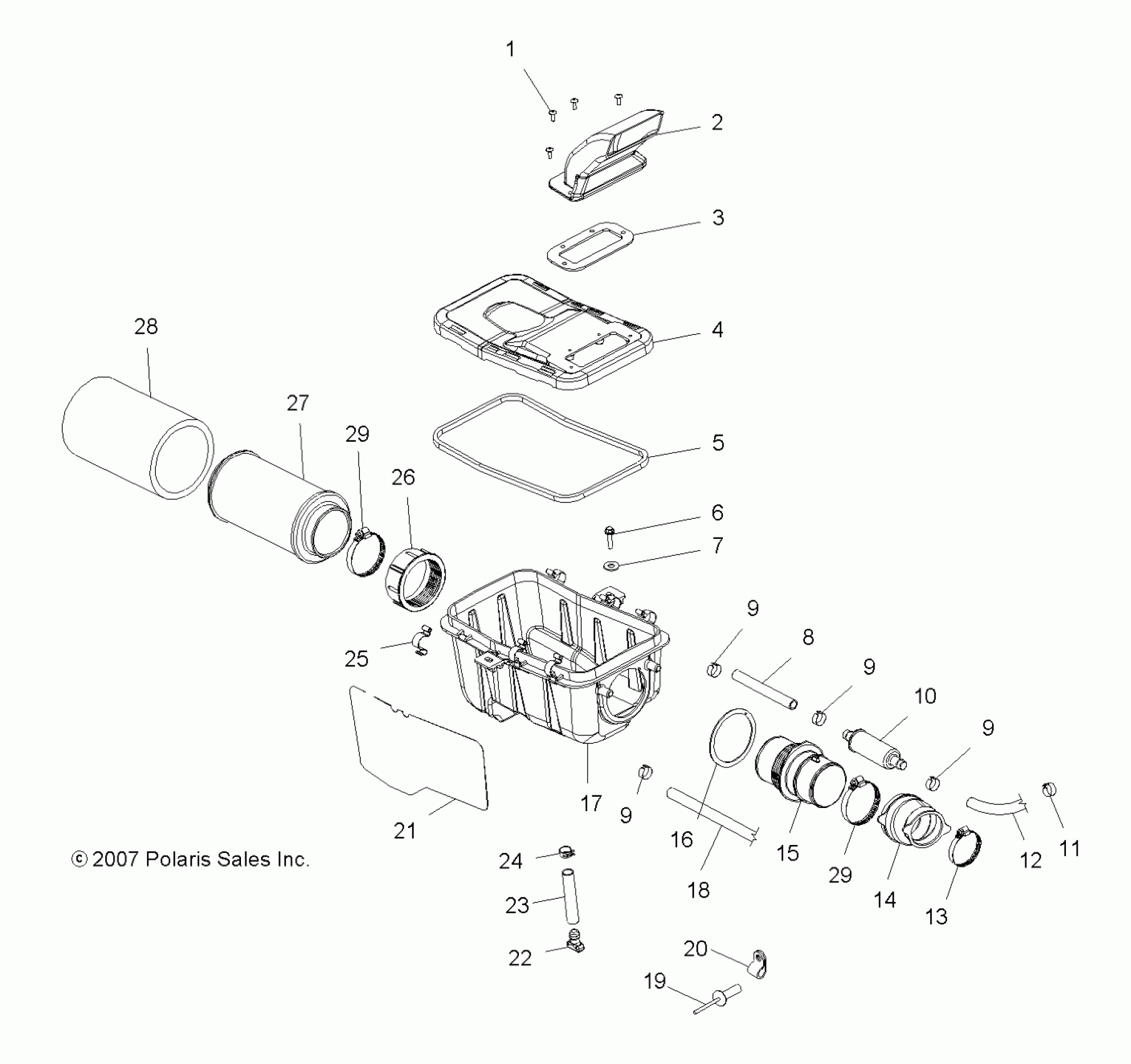

Polaris SCRAMBLER 500 4X4 - A08BG50AA ENGINE, AIR INTAKE SYSTEM - A08BG50AA (49ATVAIRBOX08SCRAM) Diagram

#

Description
Price

1

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.17

2

Duct, Inlet

5436944

Unavailable

3

Gasket, Intake

5411422

$6.59

4

Cover, Air Box

5432868

$56.65

5

Seal, Cover

5812829

$28.32

6

Screw

7515180

Unavailable

7

Washer, Flat

7558301

$1.19

8

Line, Breather

8450073-600

Unavailable

9

Clamp, Hose

7080699

$1.59

9

Clamp, Hose

7080699

$1.59

9

Clamp, Hose

7080699

$1.59

9

Clamp, Hose

7080699

$1.59

10

Filter, Breather

2530029

$6.35

11

Clamp, Hose, Spring

7080694

$6.64

12

Hose, Breather

5411847

Unavailable

13

Clamp, Narrow Band

7080413

$3.17

14

Boot, Carburetor

5411414

Unavailable

15

Duct, Carburetor, Inlet

5432473

Unavailable

16

Gasket, Carburetor, Inlet Duct

5830128

Unavailable

17

Box, Air

5432774

$125.46

18

Hose, Breather

5411873

Unavailable

19

Rivet

7621432

$1.19

20

Clamp, Hose

7080880

$5.56

21

Foil

5813042

$20.22

22

Plug, Trap

5435299

$6.46

23

Line, Fuel

8450059-150

Unavailable

24

Clamp, Hose

7080650

$3.97

25

CLIP-AIR BOX

5242044

$9.52

26

Collar, Inlet, Carburetor

5432601

$12.94

27

Filter, Air

7080595

$27.78

28

Filter, Sleeve, Precleaner

5811633

$11.90

29

CLAMP-BAND,NARROW 60-80MM

7080707

$3.17

29

CLAMP-BAND,NARROW 60-80MM

7080707

$3.17
