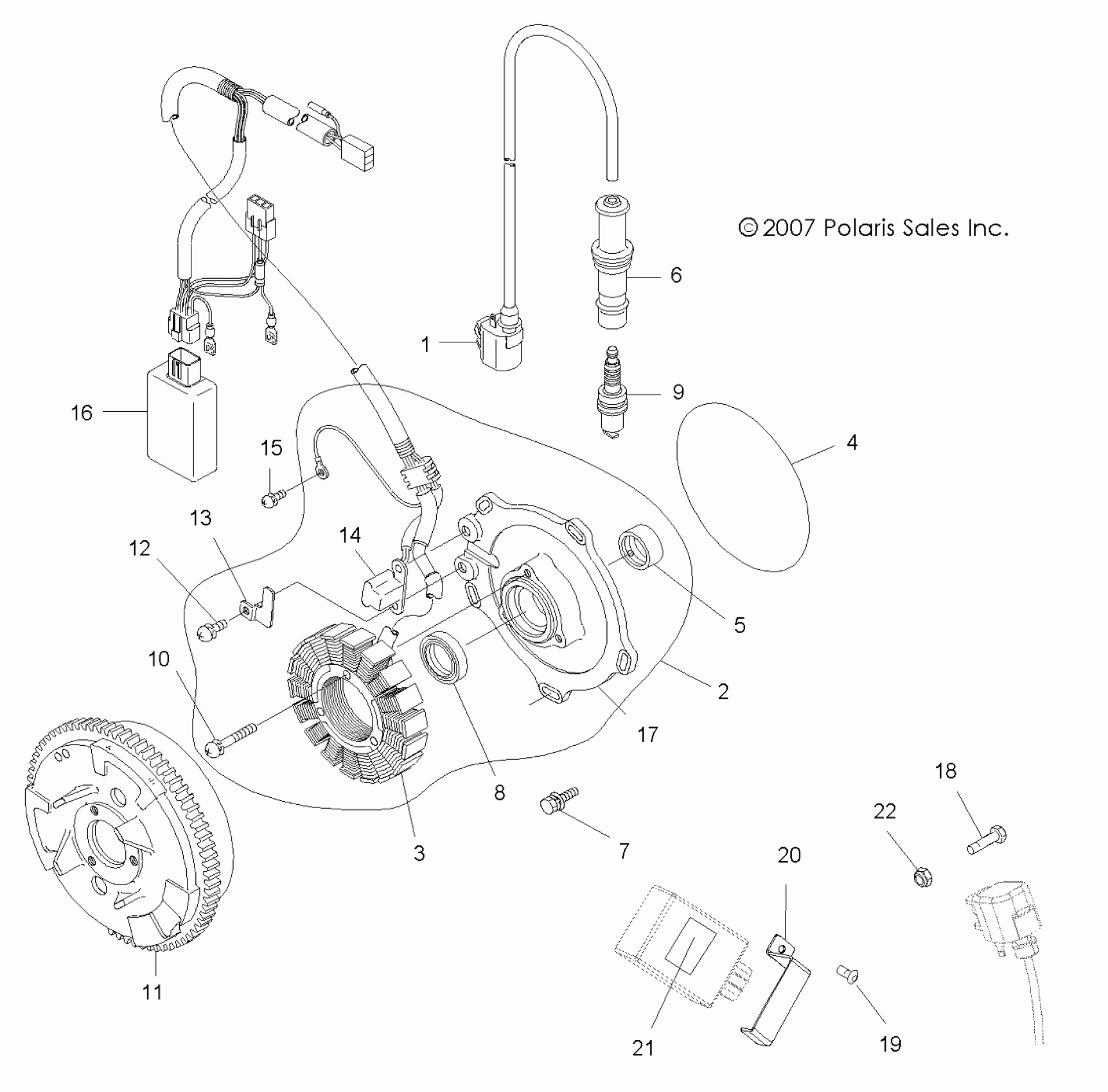

Polaris SCRAMBLER 500 4X4 - A08BG50AA ELECTRICAL, IGNITION SYSTEM - A08BG50AA (49ATVMAGNETO08SCRAM) Diagram

#

Description
Price

1

Asm., Ignition Coil [Incl. 1,6]

3089260

Unavailable

2

Asm., Plate [Incl. 5,6,8-13,15,17]

3089572

$551.59

3

Stator [Incl. 14]

3089249

Unavailable

4

O-RING

3084978

$35.99

5

BEARING, METAL

3084972

Unavailable

6

CAP, SPARK PLUG

3084980

$59.99

7

Bolt and Washer

3081657

$4.79

8

SEAL, OIL

3084973

$27.99

9

PLUG, SPARK, BKR6E

3070172

$3.99

10

Screw and Washer

3089251

$5.59

11

Flywheel w/Ring Gear

3089247

Unavailable

12

Screw and Washer

3084976

Unavailable

13

BAND, PULSE

3089250

Unavailable

14

COIL, PULSER

3089254

$103.99

15

Screw and Washer

3081256

$3.19

16

CDI System

3089238

$375.99

17

PLATE

3089248

Unavailable

18

BOLT

7512007

$3.99

19

SCREW

7512024

$4.79

20

BRACKET, CDI

5246747

$7.99

21

Pad

5810317

Unavailable

22

Nut, Nylok

7541925

$1.49
