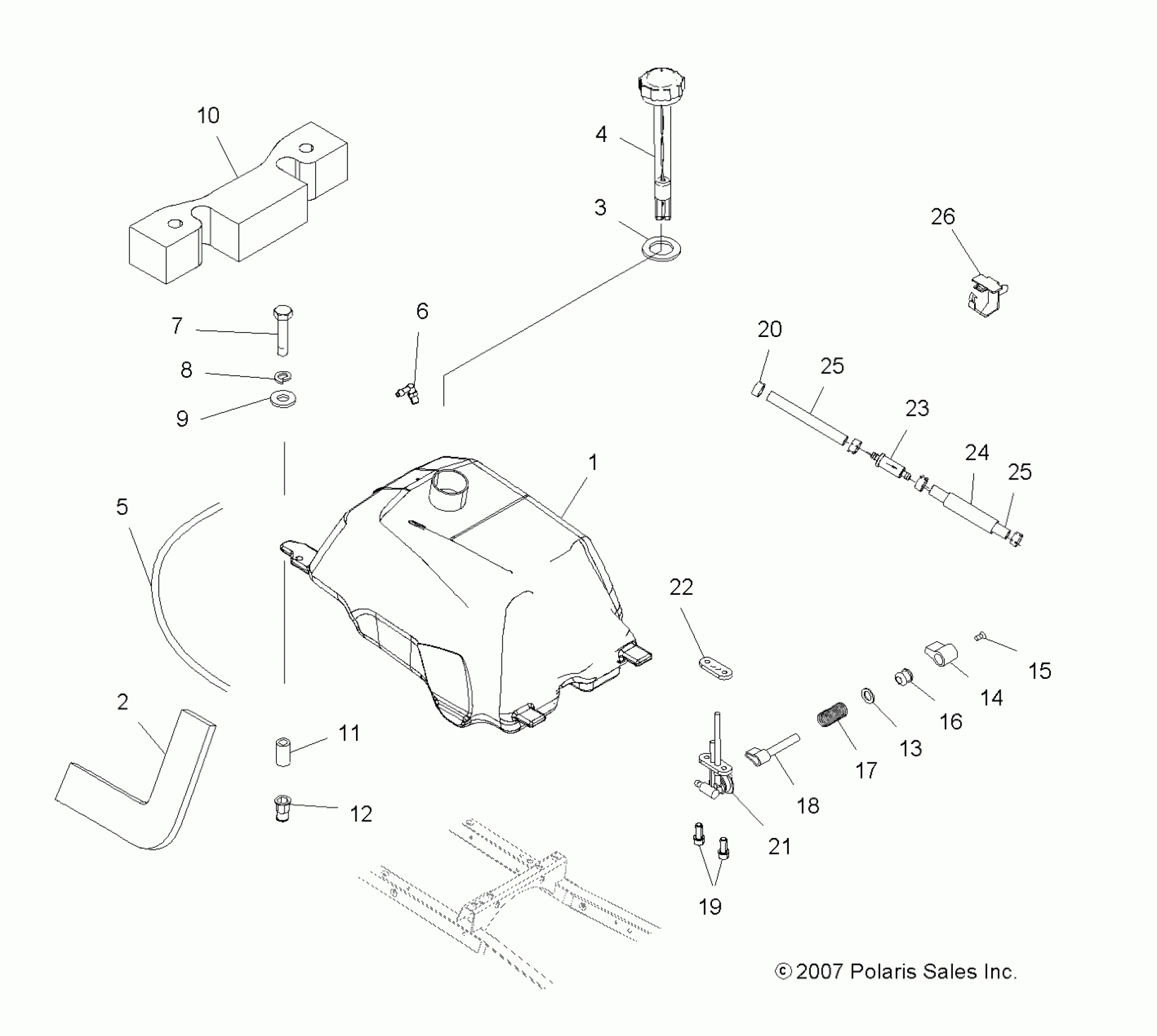

Polaris SCRAMBLER 500 4X4 - A08BG50AA BODY, FUEL TANK ASM. - A08BG50AA (49ATVFUEL08SCRAM) Diagram

#

Description
Price

1

Fuel Tank w/Valve [Incl. 6,19,21,22]

2520241

Unavailable

2

Seal, Foam

5811527

Unavailable

3

GASKET

5812123

$5.65

4

Cap, Gauge

2871441

$15.99

5

LINE, FUEL

8360009-600

Unavailable

6

Vent, Tank

5431053

$19.99

7

Bolt

7517451

$5.59

8

WASHER, SPRING LOCK

7552801

$1.59

9

Washer, Flat

7555859

$1.49

10

Seal, Foam

5811526

$31.99

11

Spacer

5332457

Unavailable

12

Nutsert, Hex

7547069

$3.99

13

Washer

7555726

$1.59

14

Lever, Fuel

5431021

$4.79

15

Screw

7511840

Unavailable

16

Grommet

5412423

Unavailable

17

Spring, Lever, Compression

7041209

$7.19

18

Extension, Fuel Lever

5431391

$7.19

19

Screw

7515136

$1.49

20

HOSE CLAMP, RED

7080003

$1.49

21

Valve, Fuel

7051006

$51.99

22

Gasket, Fuel Valve

5810859

$6.39

23

FILTER, SMALL, IN-LINE

2530009

$5.65

24

Sheath, Reflect Sleeve

8450105-65

Unavailable

25

HOSE, FUEL

8450117-250

Unavailable

25

HOSE, FUEL

8450117-250

Unavailable

26

CLIP, ROUTING

7670109

$2.39
