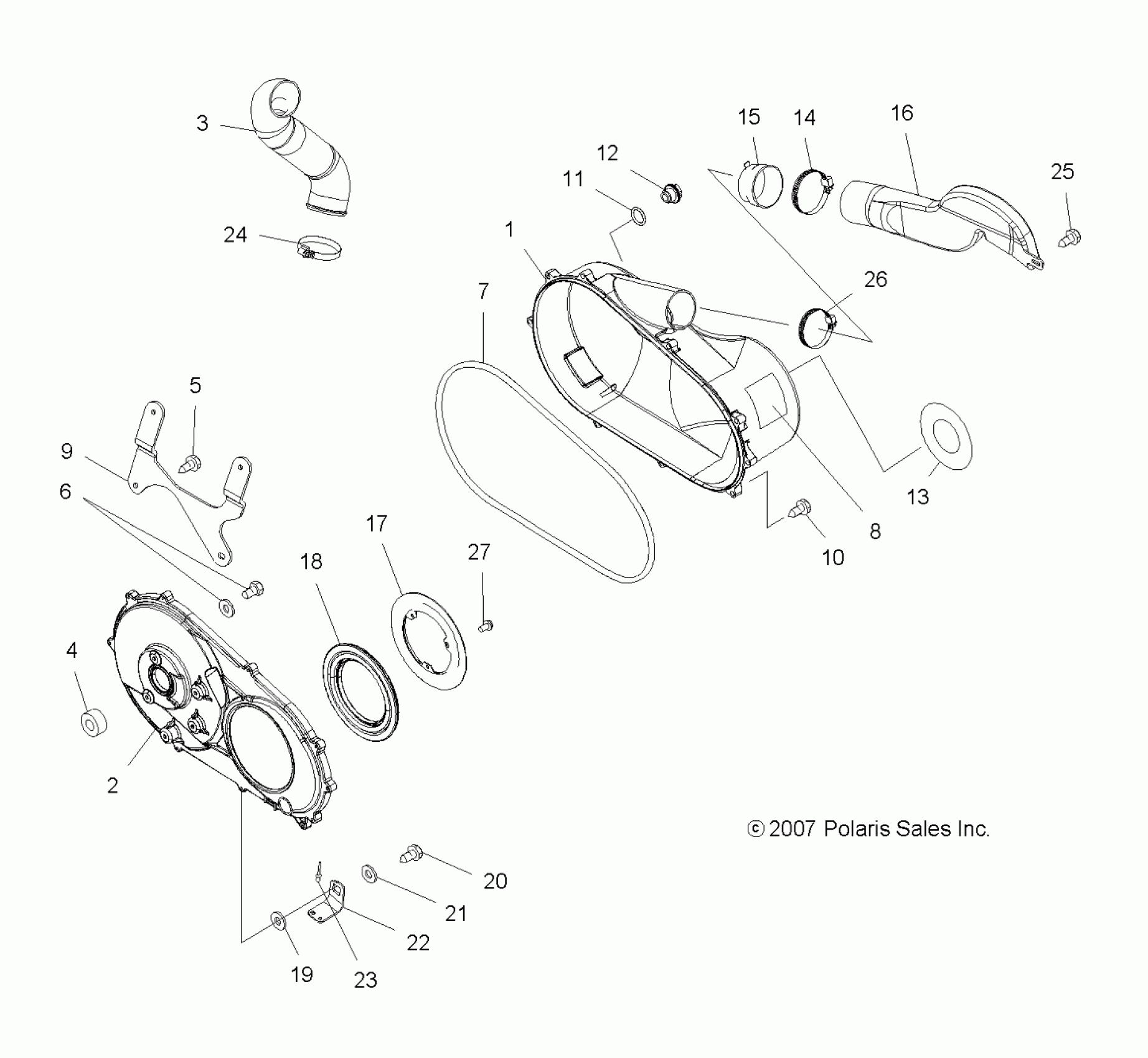

Polaris SCRAMBLER 500 4X4 - A08BG50AA BODY, CLUTCH COVER - A08BG50AA (49ATVCLUTCHCVR08SCRAM) Diagram

#

Description
Price

1

Asm., Clutch Cover, Outer [Incl. Outer Cover,11,12]

2633262

$169.87

2

Kit, Inner Clutch Cover, Service [Incl. Inner Cover, Seals, Screws]

2201851

$125.46

3

Duct, Down Tube, Inlet

5437060

$27.79

4

Seal, Inner Cover

5411553

$23.99

5

SCREW

7517386

$1.49

6

Bolt and Washer

7510000

$3.99

7

SEAL, CLUTCH COVER, OUTER

5521738

$42.46

8

DECAL, WARNING, CLUTCH COVER

7172563

Unavailable

9

Bracket, Clutch Cover, Black

5247524-067

Unavailable

10

SCREW

7512094

$1.59

11

O RING-.364X.504X.07

5410542

Unavailable

12

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

13

DECAL, AUTOMATIC TRANSMISSION

7172746

Unavailable

14

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

15

BOOT, DUCT

5412636

$23.99

16

Duct, Clutch, Hi-Flow

5434160

Unavailable

17

Bracket, Clutch Seal

5242046

$35.99

18

Seal, Cover, Case

5412637

$43.99

19

Washer, Nylon

7555932

$2.39

20

Screw

7512098

$1.59

21

Washer

7555935

$2.39

22

Bracket, Clutch Cover, Front

5247949

Unavailable

23

RIVET-3/16-.090-.290

7661637

$1.49

24

Clamp, Narrow Band

7080511

$4.79

25

SCREW

7517386

$1.49

26

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

27

Screw and Washer

3084205

$3.99
