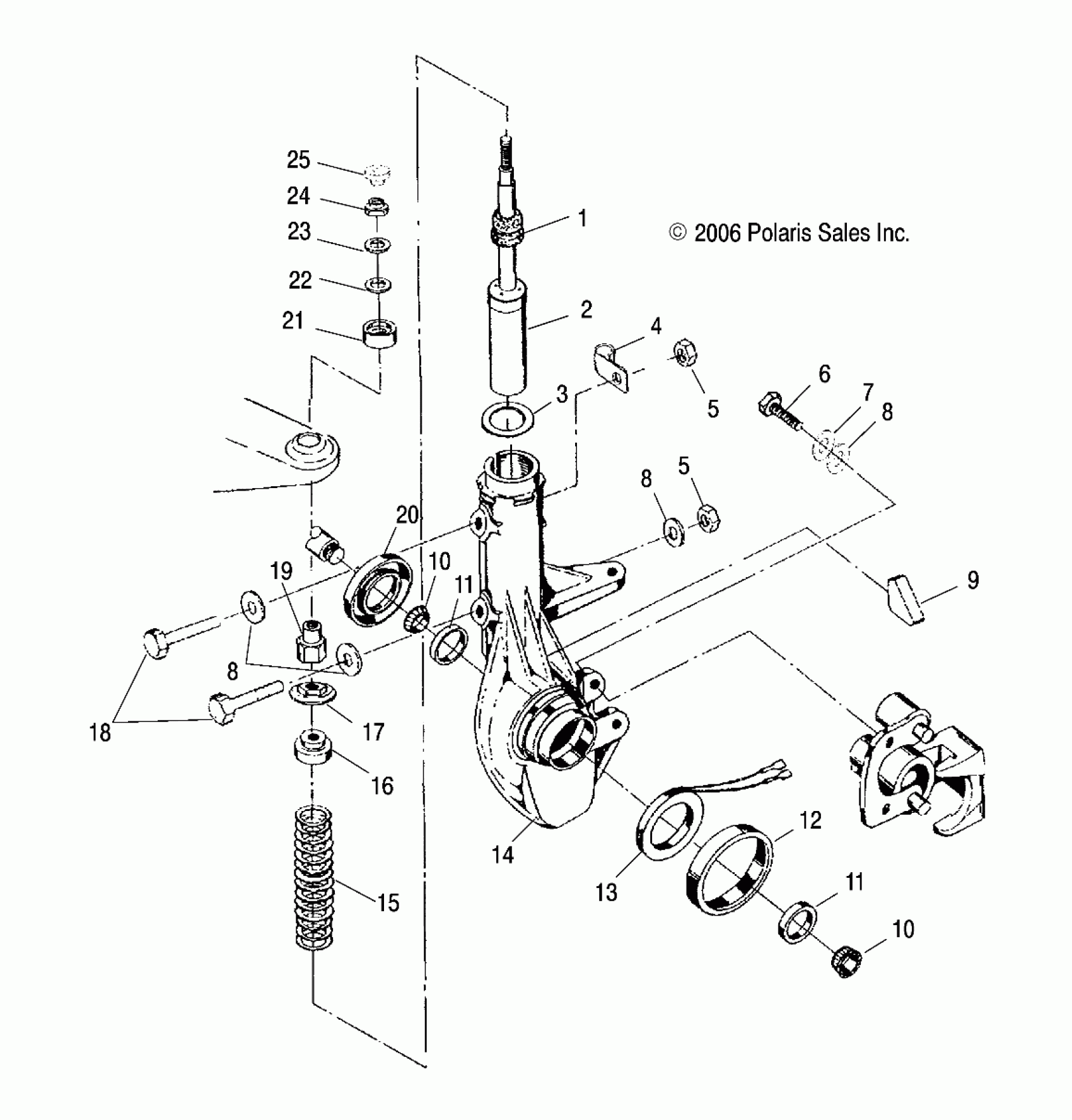

Polaris SCRAMBLER 500 4X4 - A07BG50AA/FA SUSPENSION, STRUT, FRONT - A07BG50AA/FA (49ATVSTRUTSCRAM) Diagram

#

Description
Price

1

BUMPER-MCU,17.8MM ID

5412665

$6.39

2

STRUT, FRONT

7041762

$123.99

3

WASHER-2.06X2.62X.105-Y

5211115

$3.99

4

CLAMP-CABLE

7080367

$2.39

5

NUT-5/16-18 NYLOK-Y

7542324

$1.49

5

NUT-5/16-18 NYLOK-Y

7542324

$1.49

6

SCREW, CAP

7512365

$1.49

7

WASHER, SPRING LOCK

7552901

$1.49

8

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

8

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

8

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

9

Retainer, Strut Casting Wire

5810439

Unavailable

10

Bearing, Tapered Roller

3554509

$23.99

10

Bearing, Tapered Roller

3554509

$23.99

11

Bearing, Tapered Roller Cup

3554507

$31.99

11

Bearing, Tapered Roller Cup

3554507

$31.99

12

Sleeve, Hubstrut Seal

5222193

$59.99

13

Coil, Magnetic

2410133

$121.41

14

Asm., Hubstrut, LH [Incl. 9,12-14]

1822821

Unavailable

14

Asm., Hubstrut, RH [Incl. 9,12-14]

1822822

Unavailable

15

Spring, Compression, Red

7041603-293

Unavailable

16

RETAINER-SPRING,STRUT

5243364

$19.99

17

PIVOT-BALL,BOTTOM,DELRIN

5432871

$10.39

18

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

19

SPACER

5132062

$19.99

20

Seal, Hubstrut

3610028

$31.99

21

PIVOT-BALL,TOP,DELRIN

5432872

$10.39

22

SPACER-RUBBER

5810291

$3.99

23

WASHER

7555749

$1.49

24

NUT-1/2-20 NYLOK,THIN HT-Y

7547104

$1.49

25

Grommet

7052028

$6.39
