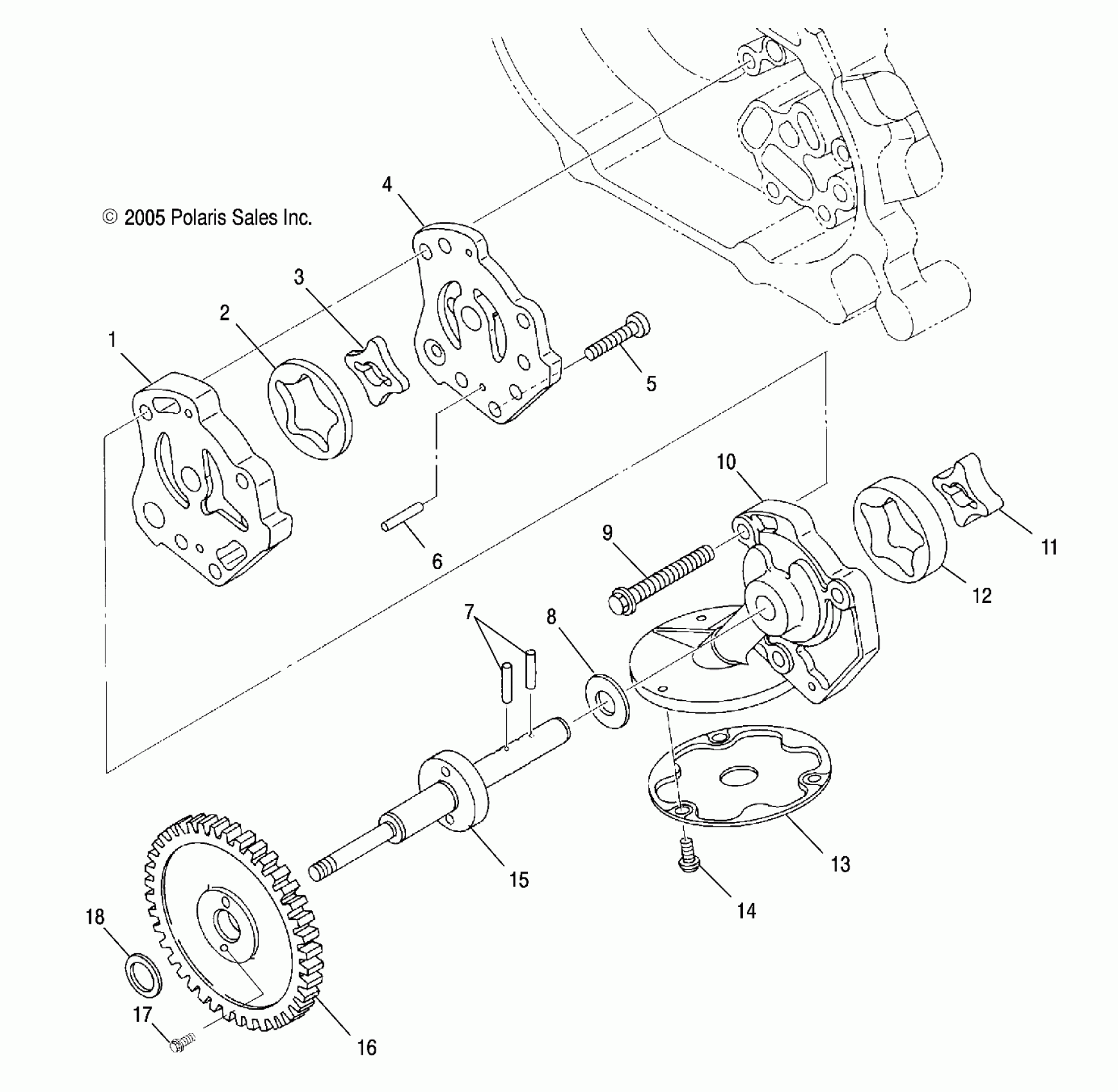

Polaris SCRAMBLER 500 4X4 - A07BG50AA/FA ENGINE, OIL PUMP - A07BG50AA/FA (4999201549920154D06) Diagram

#

Description
Price

1

PUMP, OIL, CASE 2

3084946

$75.99

2

ROTOR, OUTER, FEED

3084949

$39.99

3

ROTOR, INNER, FEED

3084948

Unavailable

4

Pump, Oil, Case 1

3087264

Unavailable

4

Asm., Oil Pump [Incl. 1-8,10-15]

3088210

Unavailable

5

SCREW

3085535

$2.39

6

PIN, DOWEL

3084955

$7.19

7

PIN, DOWEL

3084954

$7.19

8

WASHER

3084953

$3.19

9

Asm., Bolt and Washer

3084962

$27.99

10

PUMP, OIL, CASE 3

3087265

$83.99

11

ROTOR, INNER

3084950

$27.99

12

ROTOR, OUTER

3090307

$43.99

13

UNIT, OIL STRAINER

3084956

$67.99

14

Asm., Screw and Washer

3084205

$3.99

15

SHAFT, PUMP

3085858

Unavailable

16

Gear 2, Pump

3089774

Unavailable

17

BOLT, FLANGE

3089505

$4.79

18

SPACER, 0.8

3084959

Unavailable

18

SPACER, 1.2

3084961

Unavailable

18

SPACER, 1.0

3084960

Unavailable
