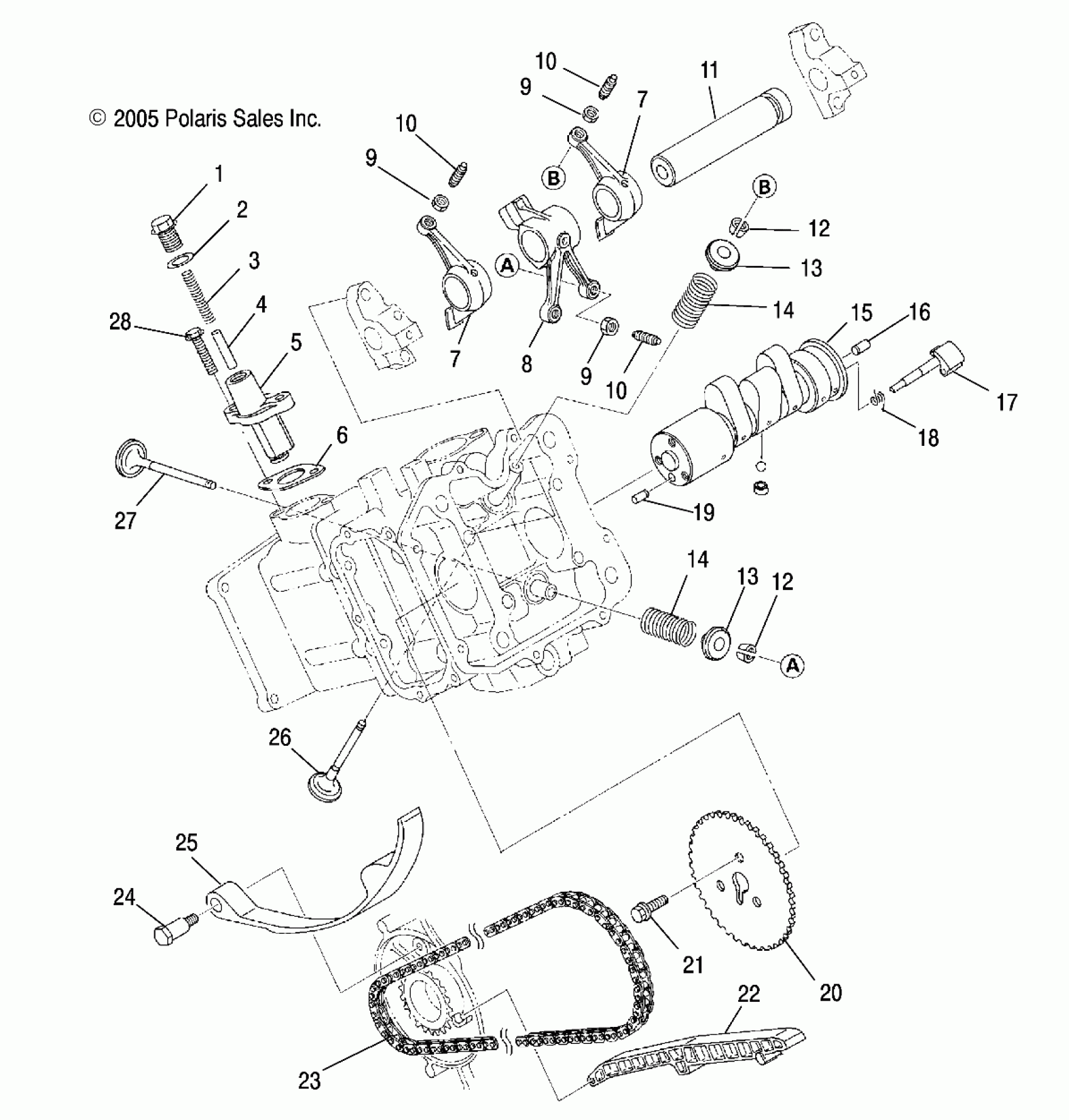

Polaris SCRAMBLER 500 4X4 - A07BG50AA/FA ENGINE, INTAKE and EXHAUST - A07BG50AA/FA (4999201549920154D03) Diagram

#

Description
Price

1

PLUG

3087129

Unavailable

2

GASKET, PLUG

3087130

$11.32

3

SPRING, TENSIONER

3087131

Unavailable

4

PIN

3087132

$10.32

5

Asm., Tensioner [Incl. 1-4]

3086493

Unavailable

6

GASKET, TENSIONER

3086448

$6.46

7

Asm., Rocker Arm, Intake [Incl. 9,10]

3084910

$125.46

7

Asm., Rocker Arm, Intake [Incl. 9,10]

3084910

$125.46

8

Asm., Rocker Arm, Exhaust [Incl. 9,10]

3084913

$166.24

9

Nut

3084912

$3.97

9

Nut

3084912

$3.97

9

Nut

3084912

$3.97

10

Screw, Adjusting

3084911

$9.52

10

Screw, Adjusting

3084911

$9.52

10

Screw, Adjusting

3084911

$9.52

11

SHAFT, ROCKER

3084909

$52.60

12

COLLET, VALVE

3084908

$4.84

12

COLLET, VALVE

3084908

$4.84

13

RETAINER, VALVE SPRING

3087203

Unavailable

13

RETAINER, VALVE SPRING

3087203

Unavailable

14

SPRING, VALVE

3086892

$28.32

14

SPRING, VALVE

3086892

$28.32

15

Camshaft [Incl. 16-19]

3085855

$379.99

16

PIN, DOWEL

3086838

$7.14

17

LEVER, RELEASE

3085348

Unavailable

18

SPRING, RETURN

3085076

Unavailable

19

PIN, DOWEL

3084899

$7.14

20

SPROCKET 2

3084914

Unavailable

21

ASM., BOLT AND WASHER

3081657

$4.76

22

GUIDE, CHAIN

3084916

Unavailable

23

CHAIN, TIMING

3084915

$101.17

24

Asm., Bolt, Pivot, Lever

3084924

Unavailable

25

LEVER

3084917

Unavailable

26

VALVE, INTAKE

3085349

$68.79

27

VALVE, EXHAUST

3085412

$93.08

28

BOLT, FLANGE

3083361

Unavailable
