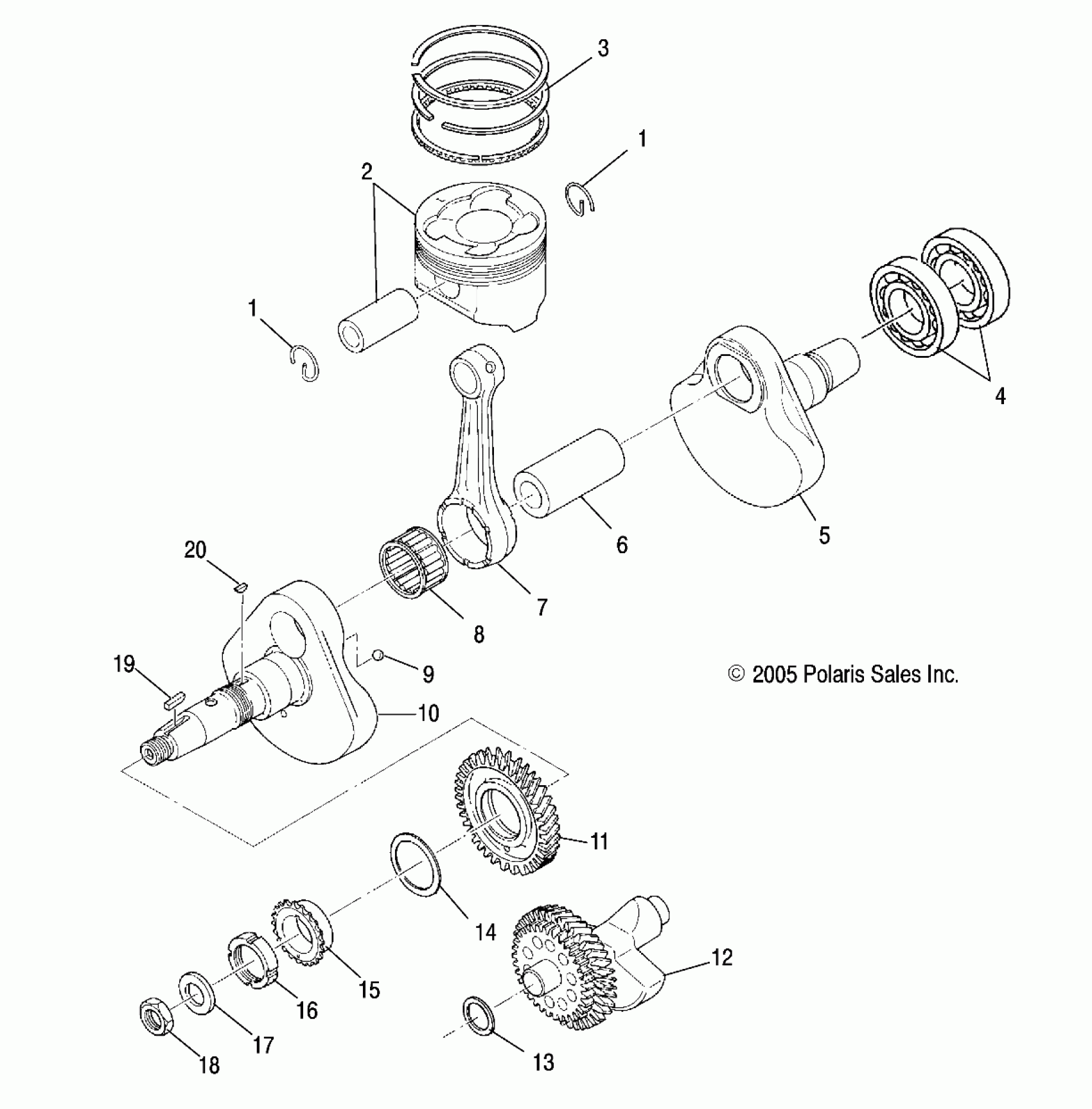

Polaris SCRAMBLER 500 4X4 - A07BG50AA/FA ENGINE, CRANKSHAFT and PISTON - A07BG50AA/FA (4999201549920154C13) Diagram

#

Description
Price

1

CLIP

3085534

Unavailable

1

CLIP

3085534

Unavailable

2

Set, Piston, .010 Inch/.25 MM O/S [Incl. 1]

3087222

Unavailable

2

Set, Piston, .020 Inch/.50 MM O/S [Incl. 1]

3087223

$179.99

2

Set, Piston, Standard [Incl. 1]

3087221

Unavailable

3

SET, PISTON, RING, STANDARD

3087224

$71.24

3

Set, Piston, Ring, .010 Inch/.25 MM O/S

3087225

$76.17

3

Set, Piston, Ring, .020 Inch/.50 MM O/S

3087226

$75.99

4

BEARING, BALL

3085815

$43.65

5

CRANKSHAFT 2

3085812

Unavailable

6

Pin, Crank

3087090

$109.27

7

Rod, Connecting

3085813

Unavailable

8

Bearing, End, Large

3085343

$78.56

9

BALL, STEEL

3085024

$6.46

10

CRANKSHAFT 1

3089678

Unavailable

10

Asm., Crankshaft [Incl. 4-11]

3089570

$1,099.99

11

Gear 1, Balancer

3089245

Unavailable

12

Shaft, Balancer

3089773

Unavailable

13

SPACER, 1.2

3084897

$6.35

13

SPACER, 0.8

3084895

$6.35

13

SPACER, 1.0

3084896

$6.35

14

SPACER, 1.2

3084894

$19.84

14

SPACER, 0.6

3240088

$12.99

14

SPACER, 1.0

3084893

Unavailable

14

SPACER, 0.8

3084892

$12.70

15

SPROCKET 1

3084882

Unavailable

16

NUT, SLIT

3085528

$35.71

17

WASHER

3086767

Unavailable

18

NUT, LOCK

3083905

Unavailable

19

KEY

3081447

Unavailable

20

KEY, WOODRUFF

3240168

$24.27
