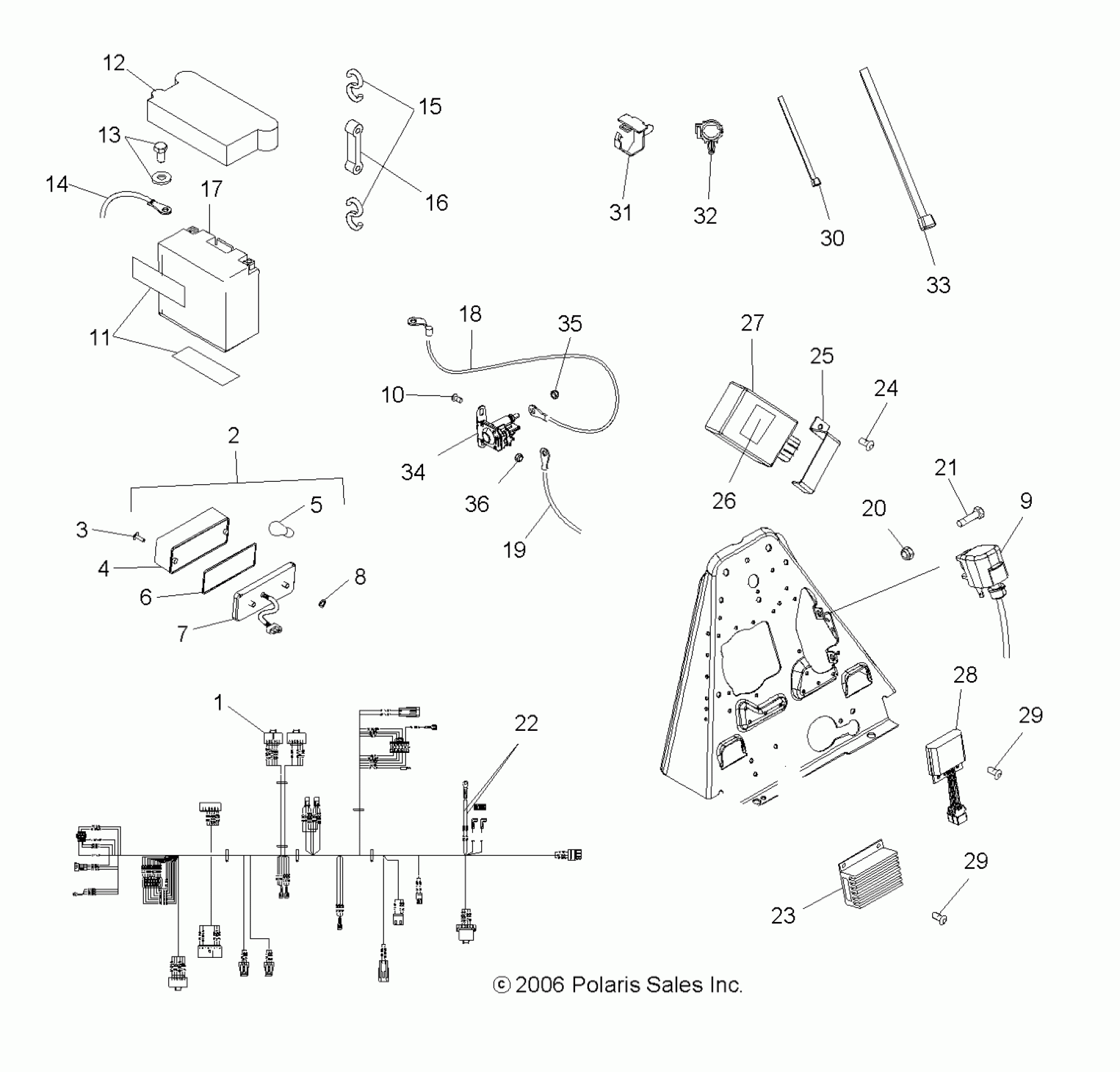

Polaris SCRAMBLER 500 4X4 - A07BG50AA/FA ELECTRICAL/TAILLIGHT - A07BG50AA/FA (49ATVELECTSCRAM) Diagram

#

Description
Price

1

Harness, Main [Incl. 22]

2410884

$394.99

2

Asm., Taillight, 12V [Incl. 3-7][AA]

2410319

$84.98

3

Screw

7512088

$1.64

4

Lens

4032085

$36.41

5

Bulb

4030043

$6.46

6

Gasket

4032086

Unavailable

7

Backing

4032087

Unavailable

8

Clip, Retainer

7670093

Unavailable

9

Coil, Ignition

3089260

Unavailable

10

Screw

7512027

$1.19

11

PAD-BATTERY

5810290

$7.27

12

Cover, Battery

5431769

$15.37

13

Kit, Battery Bolt

2200361

Unavailable

14

Cable, Battery/Engine

4010095

Unavailable

15

Hook, Battery Strap

7010032

$1.59

16

STRAP, BATTERY HOLDDOWN

5412499

$4.84

17

Battery

4140006

$99.99

17

Tube, Vent

5432077

$8.89

18

Cable, Battery/Solenoid

4010094

Unavailable

19

Cable, Solenoid/Starter

4010093

$48.56

20

Nut, Nylok

7541925

$0.79

21

BOLT

7512007

$3.97

22

Kit, Fusible Link, .8 MM

2202607

$39.68

23

Controller, Module

4011700

Unavailable

24

SCREW

7512024

$4.76

25

BRACKET, CDI

5246747

$8.08

26

Pad

5810317

Unavailable

27

CDI System

3089238

$444.43

28

Limiter

4010994

Unavailable

29

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

29

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

30

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

31

CLIP, ROUTING

7670109

$2.38

32

CLIP, ROSEBUD

4020139

$4.76

33

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

34

Solenoid, Starter

4010947

$47.60

35

NUT

7547270

$3.97

36

Nut, Flange

7518287

$3.17
