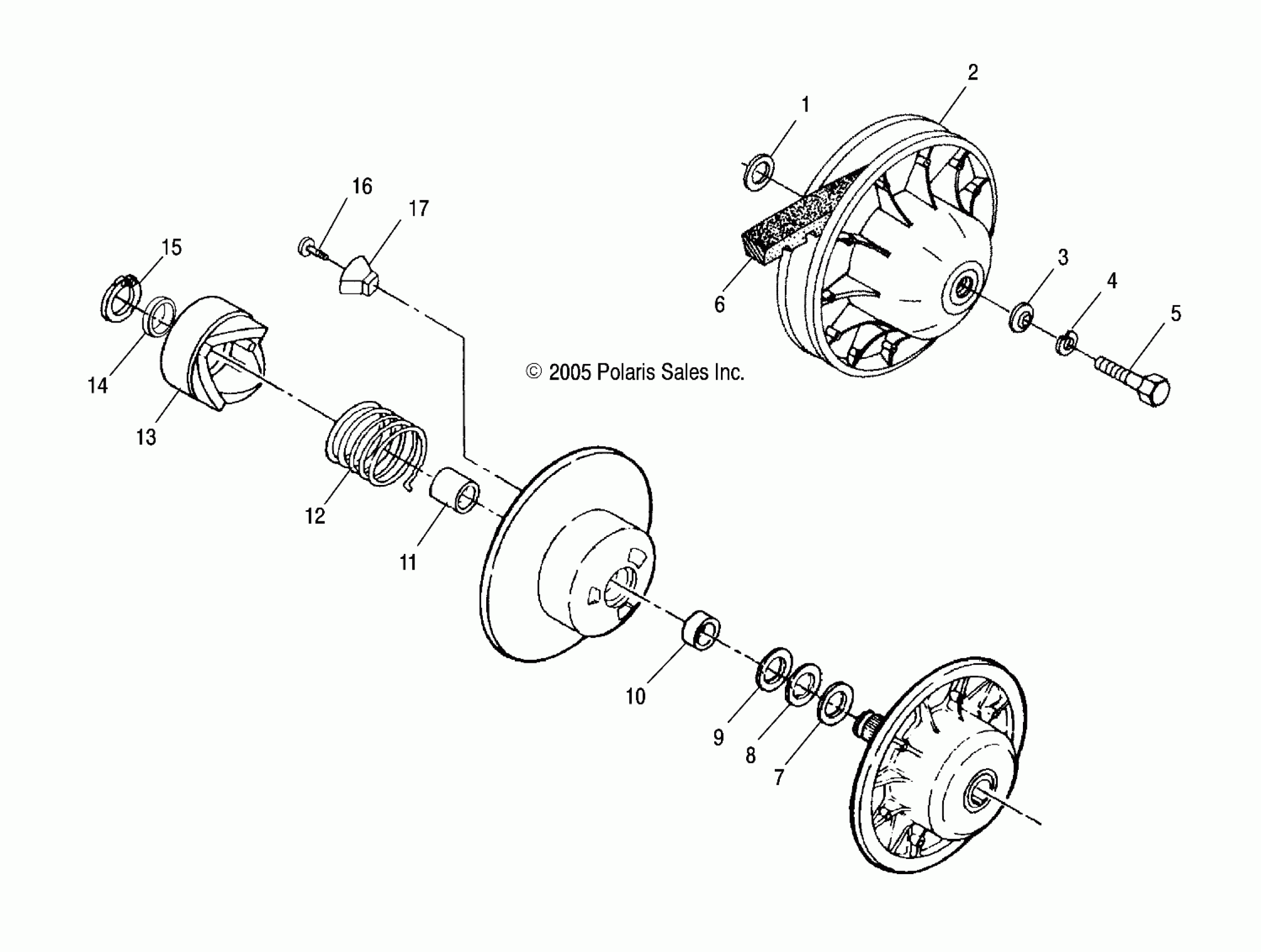

Polaris SCRAMBLER 500 4X4 - A07BG50AA/FA CLUTCH, DRIVEN - A07BG50AA/FA (4999201549920154B10) Diagram

#

Description
Price

1

BUSHING

7556120

Unavailable

2

Asm., Driven Clutch [Incl. 7-11,14-17]

1321798

Unavailable

3

Washer, Domed

5220646

$2.39

4

WASHER, SPRING LOCK

7552901

$1.49

5

Bolt

7515384

Unavailable

6

BELT, DRIVE

3211077

$63.99

7

Washer, .020

7555898

Unavailable

8

Washer, .025

7556076

Unavailable

9

Washer, .030

7556804

Unavailable

10

BEARING, MOVEABLE, 1/2 INCH

3576504

$23.99

11

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

12

Spring, Clutch

7041499

$56.65

13

RAMP, STATIONARY

5131446

$87.99

14

SPACER, .020

5210752

$1.59

15

Ring, Retaining

7710448

$3.19

16

Bolt

7511854

$1.49

17

Button, Ramp

5436521

$6.17
